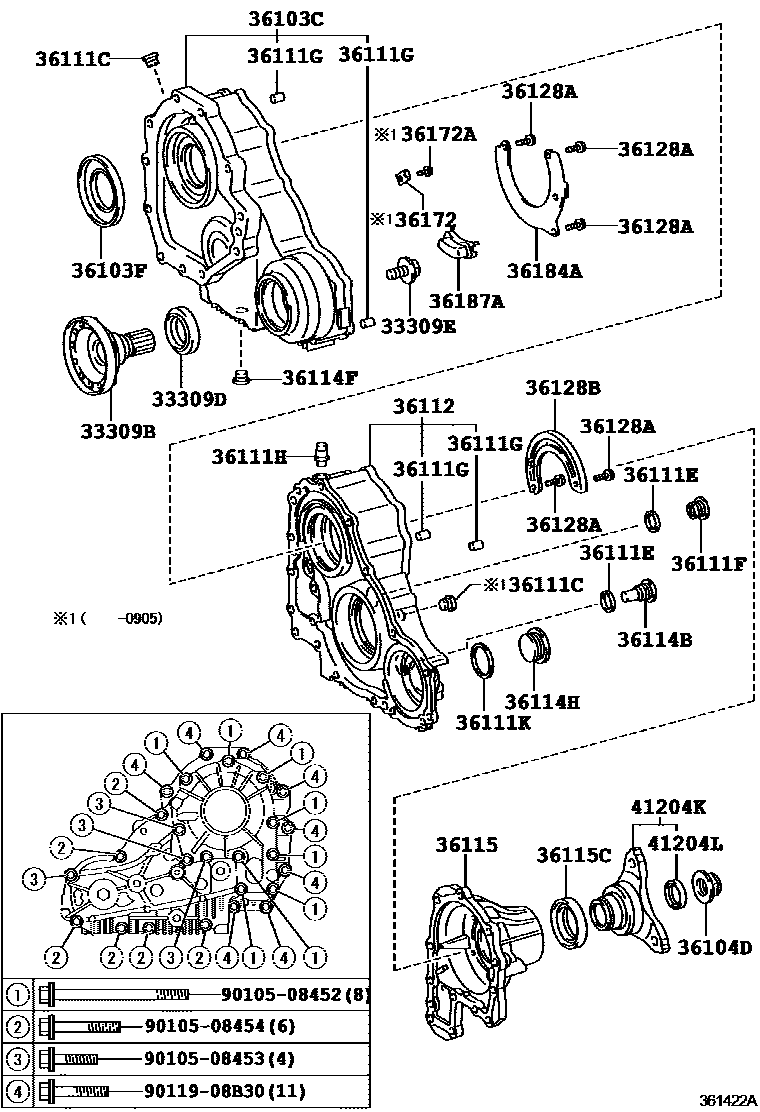

TRANSFER CASE & EXTENSION HOUSING
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309EBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
36103CCASE, TRANSFER, FRONT
36103FSEAL, TYPE T OIL (FOR TRANSFER FRONT CASE)
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111KGASKET (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
sub36104-50011
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36115HOUSING, TRANSFER EXTENSION
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
36172PLATE, TRANSFER RELIEF VALVE
36172ABOLT (FOR TRANSFER RELIEF VALVE PLATE)
36184ASEPARATOR, TRANSFER OIL
36187ASTRAINR, TRANSFER OIL, NO.1
41204KFLANGE SUB-ASSY, DRIVE PINION COMPANION
41204LSEAL, TYPE V OIL (FOR DRIVE PINION COMPANION FLANGE)
9010508452
main90105-08452
9010508453
main90105-08453
9010508454
main90105-08454
9011908B30
main90119-08B30
30 parts on this diagram · 1 diagram in section
