IGNITION COIL & SPARK PLUG / GLOW PLUG

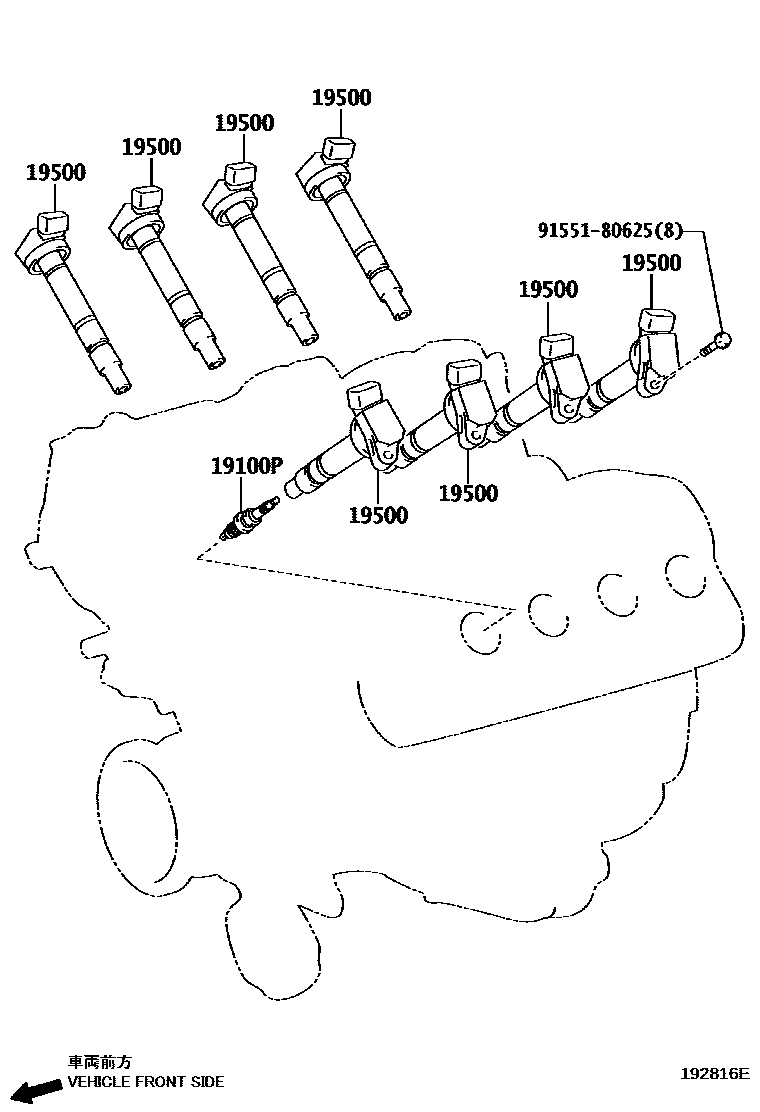

Parts diagram
19100PPLUG, SPARK
main90919-01249i200704-201209
FK20HBR11
19500COIL ASSY, IGNITION
main90919-02250i200704-200911
sub90919-02256
main90919-02256i200911
9155180625
main91551-80625

3 parts on this diagram · 1 diagram in section
