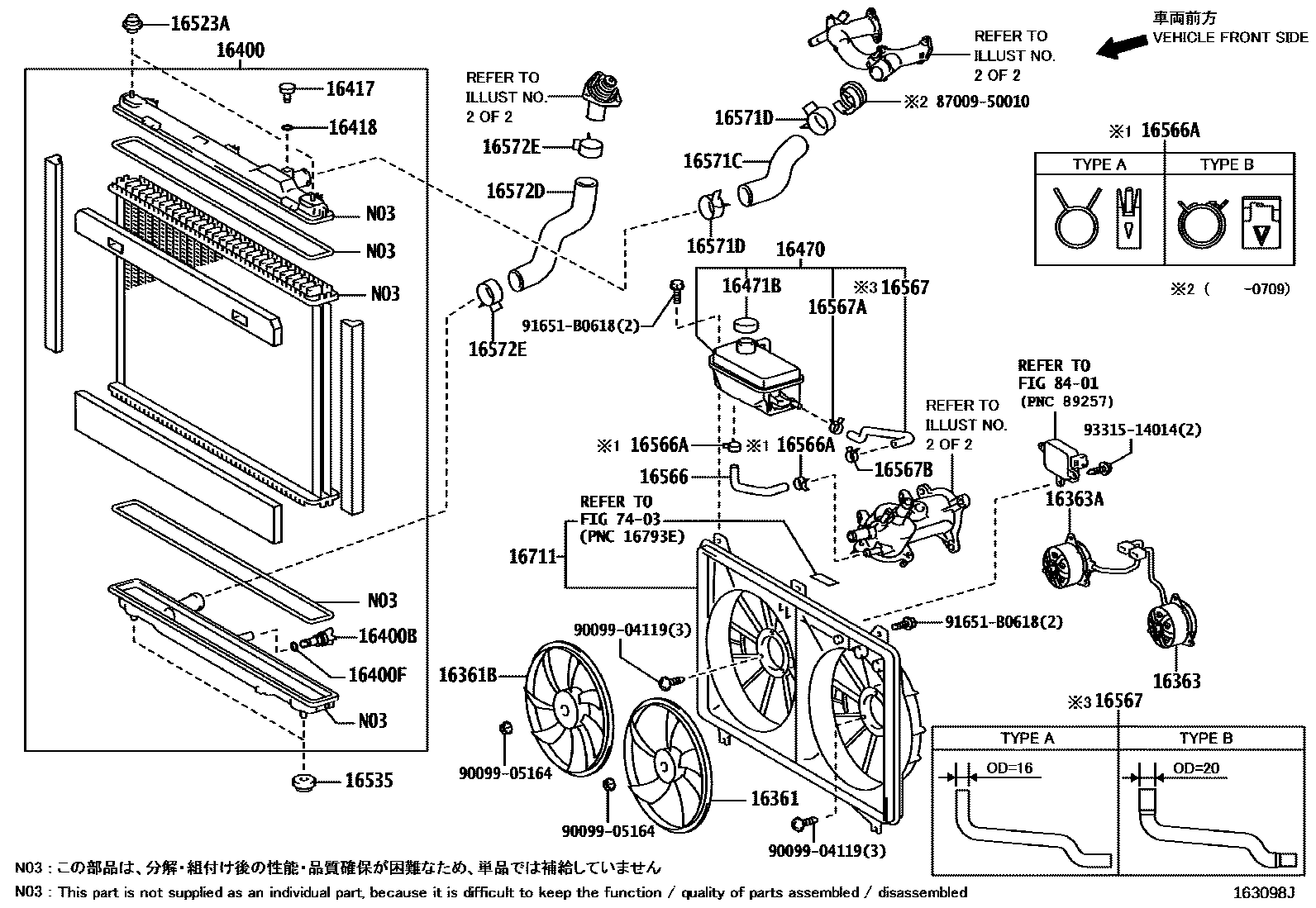

RADIATOR & WATER OUTLET

0001 1 0002 1

16361FAN

main16361-38070i2URFSE..UVF4#200704-200809

16361BFAN, NO.2

main16361-38080i2URFSE..UVF4#200704-200809

16363MOTOR, COOLING FAN

main16363-38070i2URFSE..UVF4#200704-200809

16363AMOTOR, COOLING FAN, NO.2

main16363-38080i2URFSE..UVF4#200704-200809

16400RADIATOR ASSY

main16400-38200i2URFSE..UVF4#200704-200809

main16400-38201i2URFSE..UVF4#201010-201112

PNC 16567=TYPE B

sub16400-38202

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2URFSE..UVF4#200809-200911

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2URFSE..UVF4#200704-200809

16417COCK

main16417-28530i2URFSE..UVF4#200704-200809

16418PACKING

main16418-20290i2URFSE..UVF4#200704-200809

16470TANK ASSY, RADIATOR RESERVE

main16470-38020i2URFSE..UVF4#200704-200809

main16470-38021i2URFSE..UVF4#201010-201112

PNC 16567=TYPE B

16471BCAP, RESERVE TANK

main16475-28120i2URFSE..UVF4#200704-200803

main16475-51010i2URFSE..UVF4#200911

sub16475-28140

16523ACUSHION, RADIATOR SUPPORT

main16523-38010×2i2URFSE..UVF4#200809-200911

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i2URFSE..UVF4#200704-200809

16566HOSE, RESERVE TANK OUTLET

main16566-38020i2URFSE..UVF4#200911

16566ACLIP(FOR RESERVE TANK OUTLET)

main90467-13054×2i2URFSE..UVF4#200911-201112

TYPE A:REFER ILLUST.

main96135-51300×2i2URFSE..UVF4#200704-200809

TYPE A:REFER ILLUST.

main96137-41501×2i2URFSE..UVF4#201112

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-38010i2URFSE..UVF4#200809-200911

main16567-38011i2URFSE..UVF4#201010-201112

TYPE B:REFER ILLUST.

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-16037i2URFSE..UVF4#200704-200809

16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)

main90467-16037i2URFSE..UVF4#200704-200809

main96136-42101i2URFSE..UVF4#201010-201112

PNC 16567=TYPE B

16571CHOSE, RADIATOR, NO.1

main16571-38060i2URFSE..UVF4#200704-200809

main16571-38061i2URFSE..UVF4#201111

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2i2URFSE..UVF4#201111

main96136-44801×2i2URFSE..UVF4#200911-201111

main96136-54801×2i2URFSE..UVF4#200809-200907

16572DHOSE, RADIATOR, NO.2

main16572-38110i2URFSE..UVF4#200704-200809

main16572-38111i2URFSE..UVF4#201111

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002×2i2URFSE..UVF4#201111

main96136-44801×2i2URFSE..UVF4#200908-200911

main96136-54801×2i2URFSE..UVF4#200704-200809

16711SHROUD, FAN

main16711-38100i2URFSE..UVF4#200809-200911

7403

8401

8700950010HOSE SET, WATER, NO.1

main87009-50010

9009904119

main90099-04119

9009905164

main90099-05164

91651B0618

main91651-B0618

9331514014

main93315-14014

30 parts on this diagram · 2 diagrams in section
