STANDARD TOOL

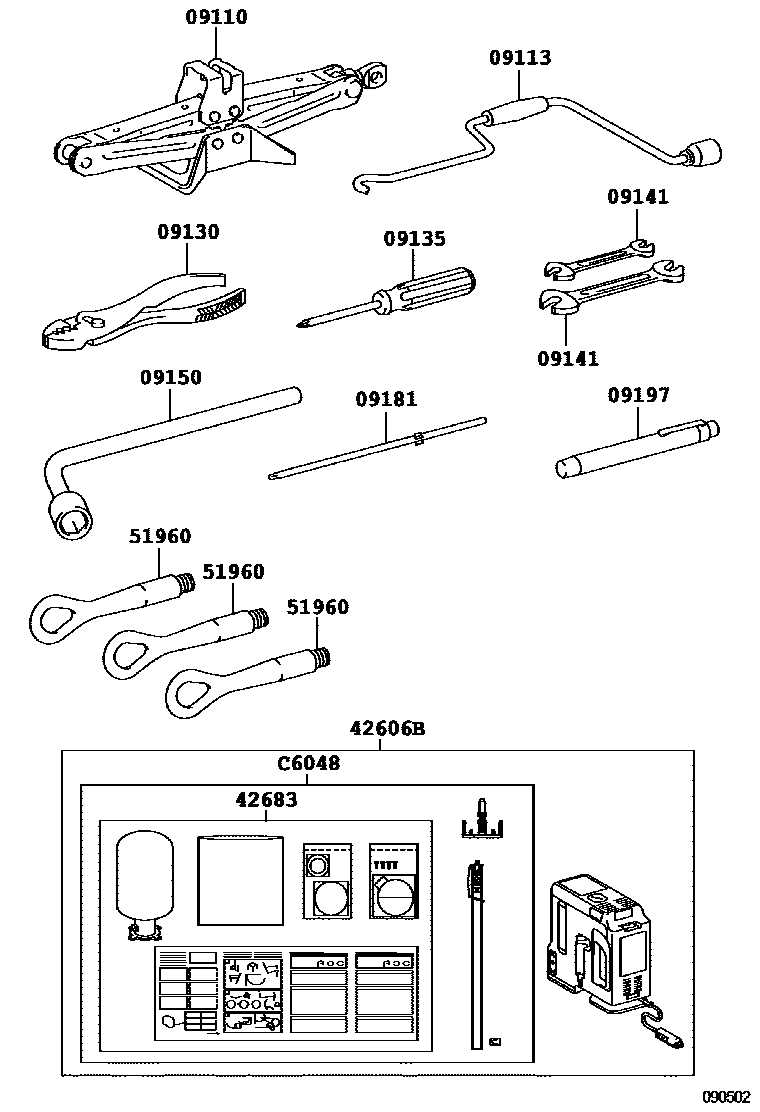

Parts diagram
09110JACK ASSY
main09111-50080i200704-201102
main09111-50110i201103
sub09111-50131
09113HANDLE, JACK
main09113-50010i200704-201012
main09113-50030i201101
09130PLIERS
main09130-50040i200704-200911
09135DRIVER, SCREW
main09135-50050i200704-200911
main09135-50060i200912
main99915-10700i200911-200912
09141SPANNER
main09141-50050i200704-201107
8 X 10
main09141-50060i200704-201107
12 X 14
main09141-50070i201107
8 X 10
main09141-60010i200911
8 X 10
main09141-60010i200911
8 X 10,SPARE TIRE-GROUND TIRE
main09141-60020i200911
12 X 14
09150WRENCH, HUB NUT BOX
main09150-50030i200704-200911
main09150-50040i200911-201209
09181ROD, PARKING BRAKE RELEASE
main09181-50010i200704-201209
sub09181-50020
09197LIGHT, PEN
main09197-50040i200704-200911
42606BREPAIR KIT, TUBELESS TIRE
main42606-50020i200809-200911
SPARE TIRE-GROUND TIRE(COATED WHEEL)
sub42606-50021
main42606-50020i200911-201205
SPARE TIRE-GROUND TIRE
sub42606-50021
main42606-50021i201206-201209
SPARE TIRE-GROUND TIRE
sub42606-50022
42683SEAL, TIRE REPAIR
main42683-50020i200809-200911
SPARE TIRE-GROUND TIRE(COATED WHEEL)
sub42683-50021
main42683-50020i200911-201205
SPARE TIRE-GROUND TIRE
sub42683-50021
main42683-50021i201206-201209
SPARE TIRE-GROUND TIRE
sub42683-50022
51960HOOK ASSY, FRONT
main51961-50040i200704-200911
sub51961-50042
main51961-50050i200911-201110
sub51961-50051
main51961-50051i201111-201209
C6048REPAIR SET, TIRE
mainC604850020i200809-200911
SPARE TIRE-GROUND TIRE(COATED WHEEL)
subC6048-50021
mainC604850020i200911-201205
SPARE TIRE-GROUND TIRE
subC6048-50021
mainC604850021i201206-201209
SPARE TIRE-GROUND TIRE
subC6048-50022

12 parts on this diagram · 1 diagram in section
