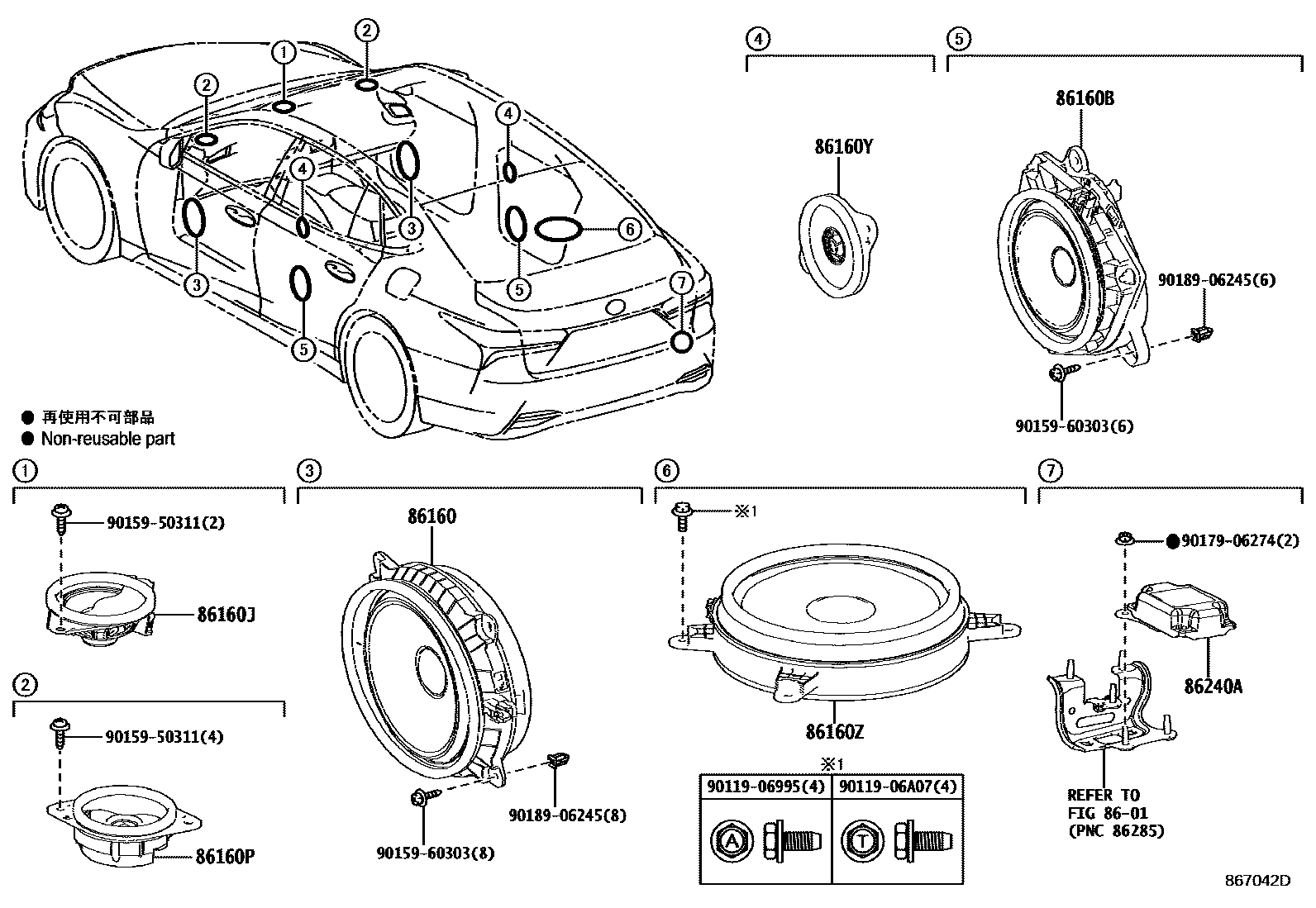

SPEAKER

0001 1PIONEER 0002 1MARK LEVINSON

8601

86160SPEAKER ASSY, FRONT NO.1

main86160-50320iGSF50,GVF50,VXFA50¥7,000201710-202210

main86160-60740iGSF50,GVF50,VXFA50¥7,000202210-202211

sub86160-60741¥6,300

main86160-60741iGSF50..GCC;GVF50,VXFA50¥6,300202212-202509

86160BSPEAKER ASSY, REAR

main86150-50320iGSF50,GVF50,VXFA50¥7,600201710-202509

RH

main86150-50330iGSF50..GEN¥7,600201710-202509

LH

86160JSPEAKER ASSY, FRONT NO.3

main86160-11060iGSF50,GVF50,VXFA50¥6,300201710-202509

86160PSPEAKER ASSY, FRONT NO.2

main86160-11070iGSF50,GVF50,VXFA50¥13,900201710-202210

main86160-60730iGSF50..GEN¥6,300202210-202509

86160YSPEAKER ASSY, REAR NO.2

main86150-50340iGSF50,GVF50,VXFA50¥6,300201710-202509

86160ZSPEAKER ASSY, REAR NO.3

main86150-50380iGSF50,GVF50,VXFA50¥8,800201710-202509

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-50030iGSF50,GVF50¥37,800201710-201711

sub86240-50031¥37,800

main86240-50031iGSF50,GVF50,VXFA50¥37,800201711-201808

sub86240-50032¥37,800

main86240-50032iGSF50,GVF50,VXFA50¥37,800201809-202010

sub86240-50033¥31,500

main86240-50033iGSF50,GVF50,VXFA50¥31,500202010-202210

main86240-50040iGVF50,VXFA50¥18,800202210-202509

main86240-50070iGVF50,VXFA50¥18,800202310

9011906995

main90119-06995¥60

9011906A07

main90119-06A07¥60

9015950311

main90159-50311¥70

9015960303

main90159-60303¥70

9017906274

main90179-06274¥70

9018906245

main90189-06245¥70

14 parts on this diagram · 2 diagrams in section
