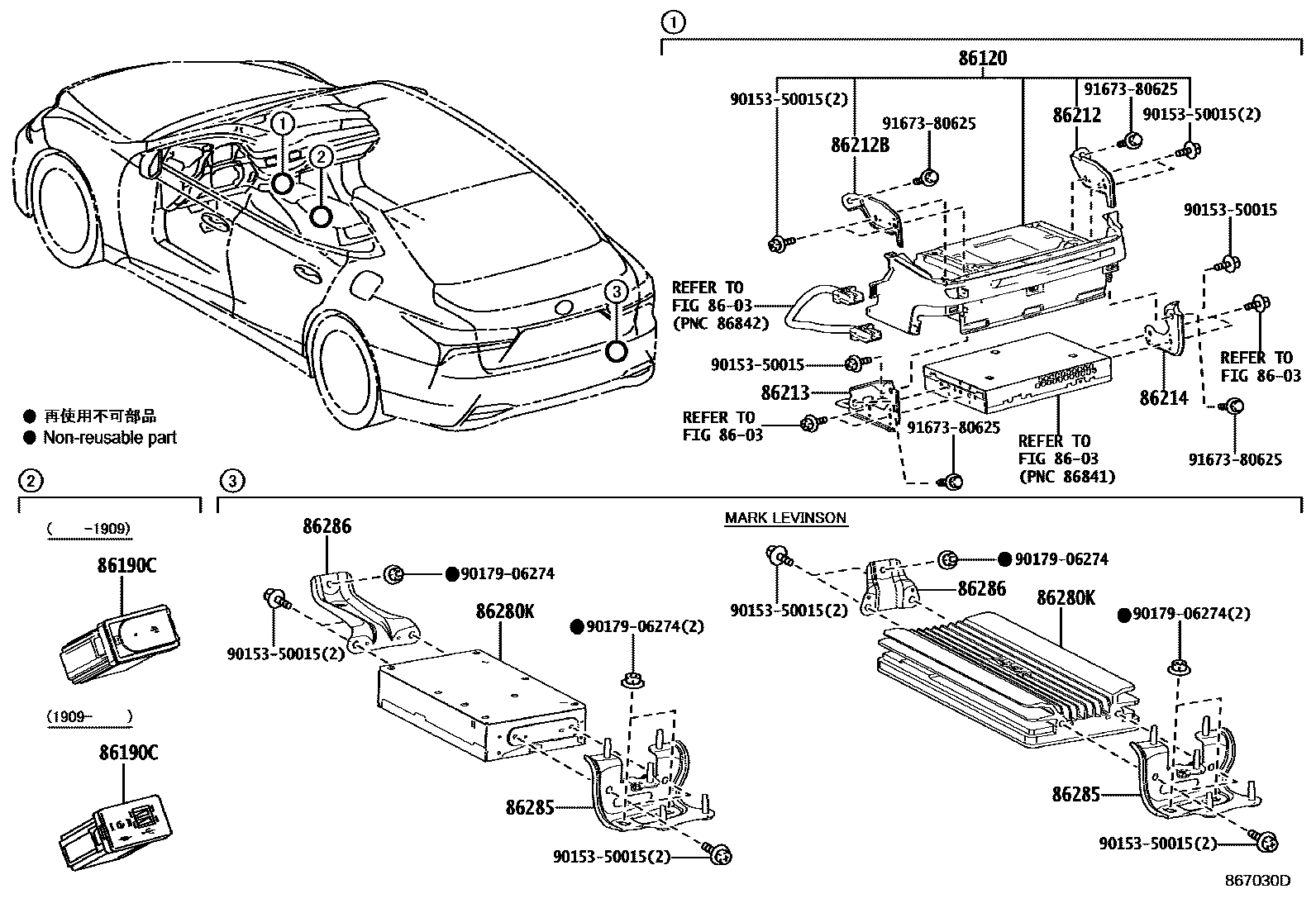

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86120-50W00iGSF50,GVF50,VXFA50..RHD201710-201909

PIONEER

sub86120-50W01

main86120-50W01iGSF50,GVF50,VXFA50..RHD201910-202010

PIONEER

main86120-50W80iGSF50,GVF50..CHI201711-201809

PIONEER

main86120-50W81iGSF50,GVF50..CHI201809-202010

PIONEER

main86120-50W90iGSF50,GVF50,VXFA50..GCC201710-202010

PIONEER

main86120-50X70iGSF50,GVF50,VXFA50..LHD..GEN201710-202010

PIONEER

main86120-5A280iGSF50,GVF50,VXFA50..RHD202011-202210

PIONEER

main86120-5A330iGVF50..CHI202011-202210

PIONEER

main86120-5A340iGSF50,GVF50,VXFA50..GCC202010-202210

PIONEER

main86120-5A390iGVF50,VXFA50..LHD..GEN202011-202111

PIONEER

main86120-5A450iGVF50,VXFA50..LHD..GEN202111-202210

PIONEER

main86130-50K10iGVF50..CHI202210-202310

DENSO TEN

main86130-50K20iGSF50,GVF50,VXFA50..GCC202210-202310

PANASONIC

main86130-50K50iGVF50,VXFA50..LHD..GEN202210-202310

PANASONIC

main86130-50K60iGSF50,GVF50,VXFA50..RHD202210-202310

PANASONIC

main86130-50M40iGVF50..CHI202310

DENSO TEN

main86130-50M50iGVF50,VXFA50..GCC202310

PANASONIC

main86130-50M70iGVF50,VXFA50..RHD202310

DENSO TEN

main86130-50M80iGVF50..LHD..GEN202310

PANASONIC,PHILIPPINE SPEC

main86130-50M80iVXFA50..LHD..GEN202310

PANASONIC

main86130-50M80iVXFA50..LHD..GEN202310

PANASONIC,VIETNAM SPEC

main86130-50N00iVXFA50..LHD..GEN202310

PANASONIC,MIDDLE & SOUTH AMERICA SPEC

main86130-50N00iGVF50..LHD..GEN202310

PANASONIC

main86130-50N00iGVF50..LHD..GEN202310

PANASONIC,EL SALVADOR SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86130-50N00iGVF50..LHD..GEN202310

PANASONIC,COSTARICA,GUATEMALA SPEC

main86130-50N00iGVF50..LHD..GEN202310

PANASONIC,HONDURAS SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86130-50N00iGVF50..LHD..GEN202310

PANASONIC,NICARAGUA,ARUBA,CURACAO SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86130-50P40iGSF50..GCC202310

PANASONIC

main86130-50P60iGSF50..GEN202310-202509

PANASONIC

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010iGSF50,GVF50,VXFA50201710-201909

main86190-24030iGSF50,GVF50,VXFA50201909-202210

main86190-48090iGSF50..GEN202210-202509

86212BRACKET, RADIO, NO.2

main86212-50100iGSF50,GVF50,VXFA50201710-202210

86212BBRACKET, RADIO, NO.1

main86211-50100iGSF50,GVF50,VXFA50201710-202210

86213BRACKET, RADIO, NO.3

main86211-50110iGVF50,VXFA50..RHD202210-202509

main86211-50120iGSF50,GVF50,VXFA50..LHD201710-202210

main86211-50130iGSF50,GVF50,VXFA50..RHD201710-202210

main86211-50140iGSF50,GVF50,VXFA50..LHD202210

86214BRACKET, RADIO, NO.4

main86212-50110iGSF50,GVF50,VXFA50..LHD201710-202210

main86212-50120iGSF50,GVF50,VXFA50..RHD201710-202210

main86212-50130iGVF50,VXFA50..RHD202210-202509

main86212-50140iGSF50,GVF50,VXFA50..LHD202210

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-50370iGSF50,GVF50201710-201712

sub86280-50371

main86280-50371iGSF50,GVF50,VXFA50201712-202210

main86280-50540iGSF50..GEN202210-202509

86285BRACKET, AMPLIFIER, NO.1

main86285-50150iGSF50,GVF50,VXFA50201710-202210

main86285-50170iGSF50..GEN202210-202509

86286BRACKET, AMPLIFIER, NO.2

main86286-50090iGSF50,GVF50,VXFA50201710-202210

main86286-50130iGSF50..GEN202210-202509

9015350015

main90153-50015

9017906274

main90179-06274

9167380625

main91673-80625

13 parts on this diagram · 5 diagrams in section
