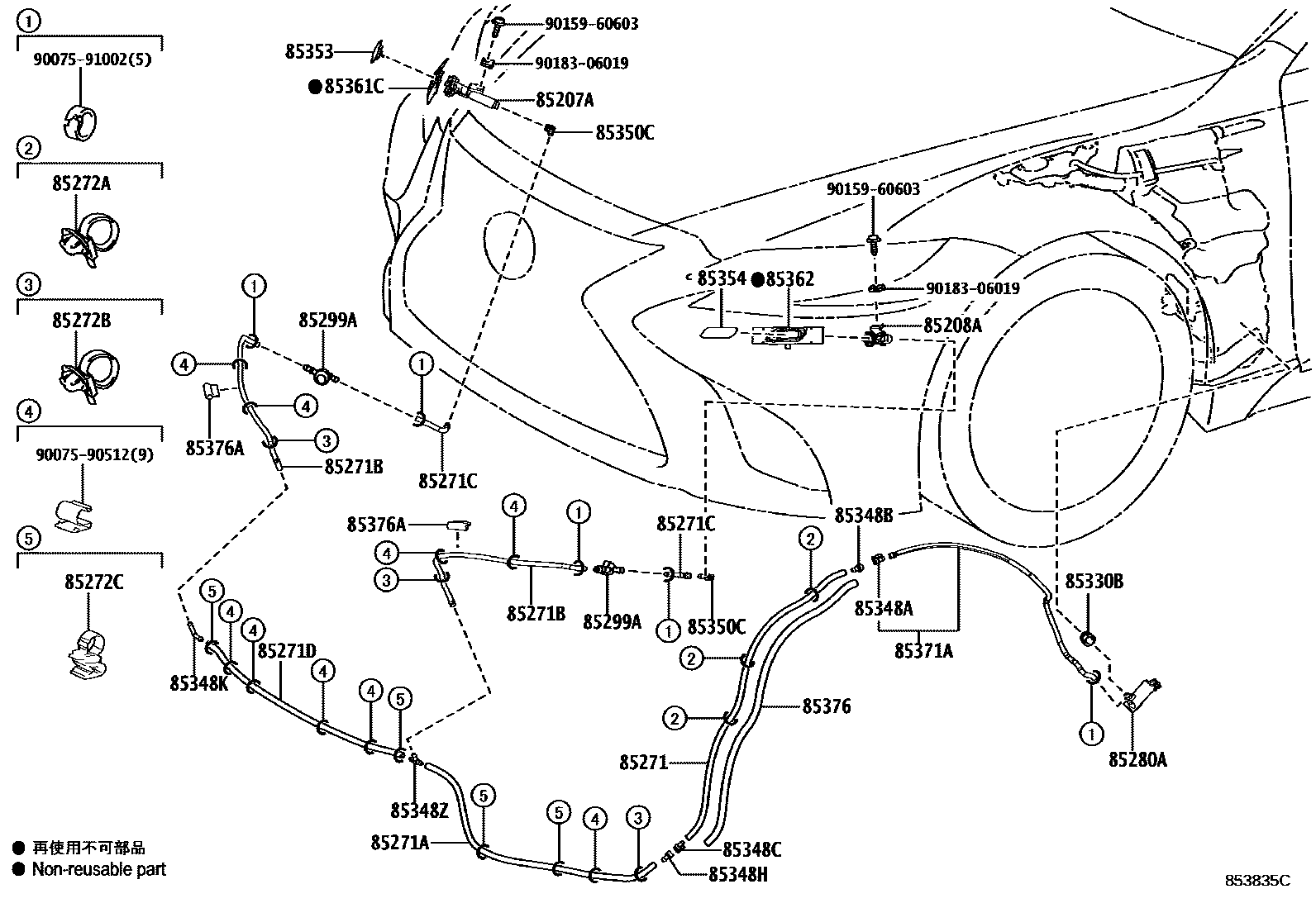

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=750
85271AHOSE, HEADLAMP CLEANER, NO.2
L=700
85271BHOSE, HEADLAMP CLEANER, NO.3
L=630
85271CHOSE, HEADLAMP CLEANER, NO.4
L=100
L=800
85271DHOSE, HEADLAMP CLEANER, NO.5
L=800
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85299AVALVE ASSY, CHECK
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85350CJOINT, HEADLAMP CLEANER HOSE, NO.6
85353COVER, HEADLAMP WASHER, RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
I SILVER,1L3
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
85354COVER, HEADLAMP WASHER, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
I SILVER,1L3
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SONIC AGATE,3U3
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
85361CBRACKET, WASHER
85362BRACKET, WASHER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
9007590512
main90075-90512
9007591002
main90075-91002
9015960603
main90159-60603
9018306019
main90183-06019
31 parts on this diagram · 3 diagrams in section
