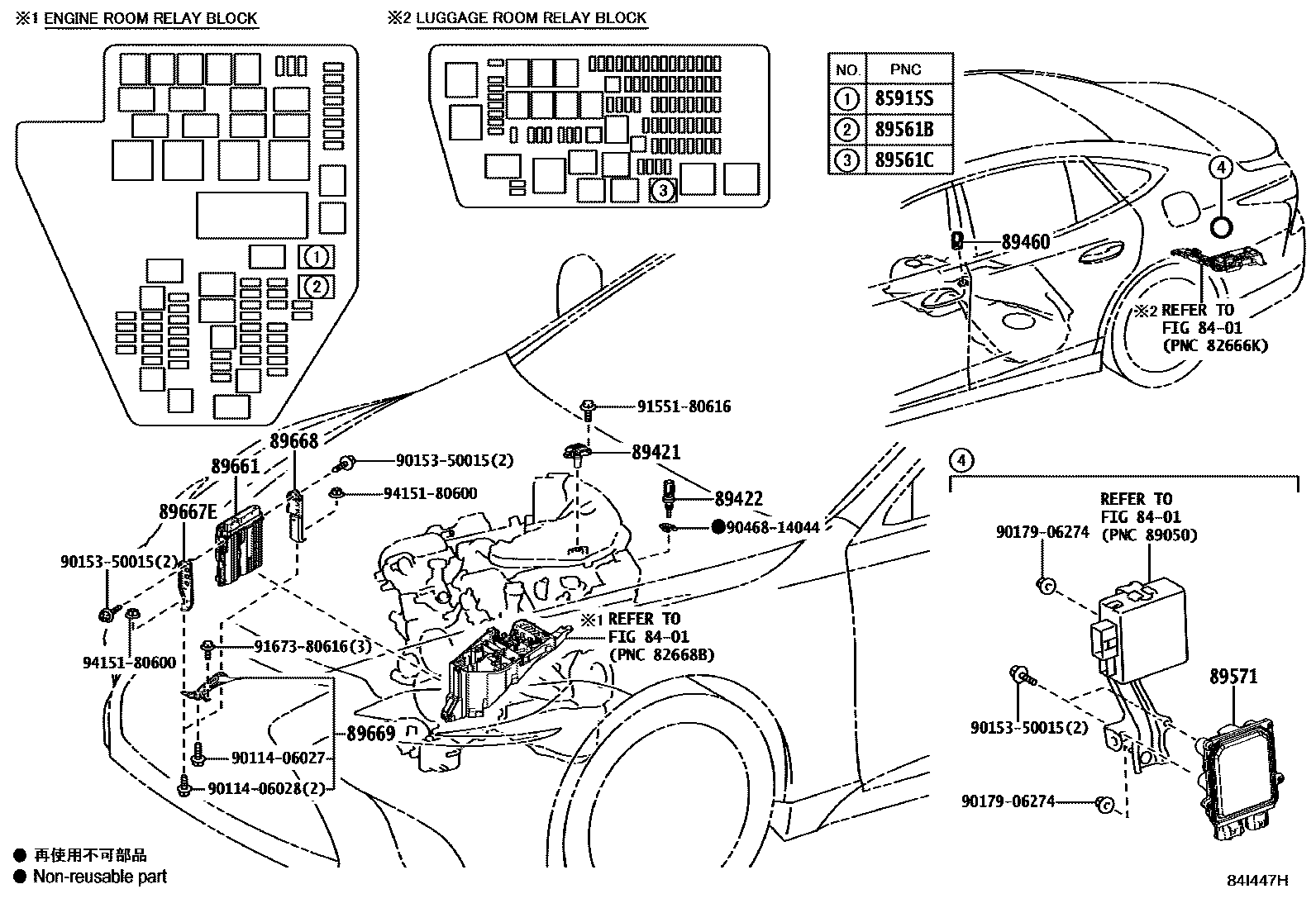

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02025iVXFA50;GSF50..GCC¥2,930201710-202509

main90987-02027iGVF50¥2,930201710-202010

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iVXFA50¥5,900201712-202010

main89421-47010iGVF50¥5,900201710-202010

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iVXFA50¥2,410201712-202010

main89422-47010iGSF50,GVF50¥2,410201710-202509

89460SENSOR ASSY, VAPOR PRESSURE

main89461-48020iGVF50..CHI¥7,100202011

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02025iVXFA50¥2,930201712-202010

main90987-02027iGSF50..GEN¥2,930201710-202509

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iGSF50,GVF50,VXFA50¥2,930201710-202509

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGSF50,GVF50,VXFA50¥10,300201710-202005

main89571-58020iGSF50,GVF50,VXFA50¥10,300202005-202509

89661COMPUTER, ENGINE CONTROL

main89661-50L20iVXFA50201909-202010

DENSO

main89661-50P50iGVF50..CHI201711-201808

DENSO

sub89661-50P51

main89661-50P51iGVF50..CHI201809-202010

DENSO

main89661-50Q30iGVF50..GCC,GEN201710-202010

DENSO

main89661-50Q90iGSF50..GCC,GEN201710-201809

DENSO

main89661-50R00iGSF50..CHI201711-201809

DENSO

main89661-50S60iVXFA50201712-201809

DENSO

main89661-50U70iGSF50..GCC,GEN201809-202010

DENSO

main89661-50U80iGSF50..CHI201809-202010

DENSO

main89661-50V80iVXFA50201809-201909

DENSO

main89661-50W30iGSF50202010-202310

DENSO

main89661-50W70iVXFA50202010-202111

DENSO

main89661-50Y30iGVF50..CHI202011-202310

DENSO

main89661-50Y60iGVF50..GCC,GEN202010-202310

DENSO

main89661-50Z20iVXFA50202111-202210

DENSO

main89661-5A010iVXFA50202210-202310

DENSO

main89661-5A050iGSF50..GEN202310-202509

DENSO

main89661-5A060iGSF50..GCC202310

DENSO

main89661-5A070iVXFA50¥109,000202310

DENSO

main89661-5A130iGVF50..LHD..GEN202310

DENSO

main89661-5A130iGVF50..LHD..GEN202310

DENSO,HONG KONG OR MACAU SPEC

main89661-5A130iGVF50..LHD..GEN202310

DENSO,SINGAPORE SPEC

main89661-5A170iGVF50..LHD..GEN202310

DENSO

main89661-5A170iGVF50..LHD..GEN202310

DENSO,EXHAUST EMISSION CONTROL-EURO5, WITH(ON BOARD DIAGNOSIS)

main89661-5A180iGVF50..GCC202310

DENSO,EXHAUST EMISSION CONTROL-GUO 6,WITHOUT(ON BOARD DIAGNOSIS)

main89661-5A180iGVF50..RHD202310

DENSO

main89661-5A180iGVF50..RHD202310

DENSO,INDONESIA SPEC

main89661-5A180iGVF50..RHD202310

DENSO,BURNEI SPEC

main89661-5A190iGVF50..CHI202310

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11010iGSF50..LHD201710-202010

main89667-11020iGSF50..GEN¥1,120201710-202509

main89667-11030iGVF50¥1,060201710-202010

main89667-50090iVXFA50..LHD201712-202010

main89667-50100iVXFA50..RHD¥350201712-202010

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11010iGSF50..GCC201710-202010

main89668-11020iGSF50..RHD¥800201710-202509

main89668-11030iGVF50¥1,350201710-202010

main89668-50080iVXFA50..LHD201712-202010

main89668-50090iVXFA50..RHD¥920201712-202010

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11010iGSF50,VXFA50..LHD201710-202010

main89669-11020iGSF50,VXFA50..RHD¥1,210201710-202509

main89669-11030iGVF50¥2,350201710-202010

9011406027

main90114-06027¥60

9011406028

main90114-06028¥60

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

9046814044

main90468-14044¥60

9155180616

main91551-80616¥60

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

20 parts on this diagram · 5 diagrams in section
