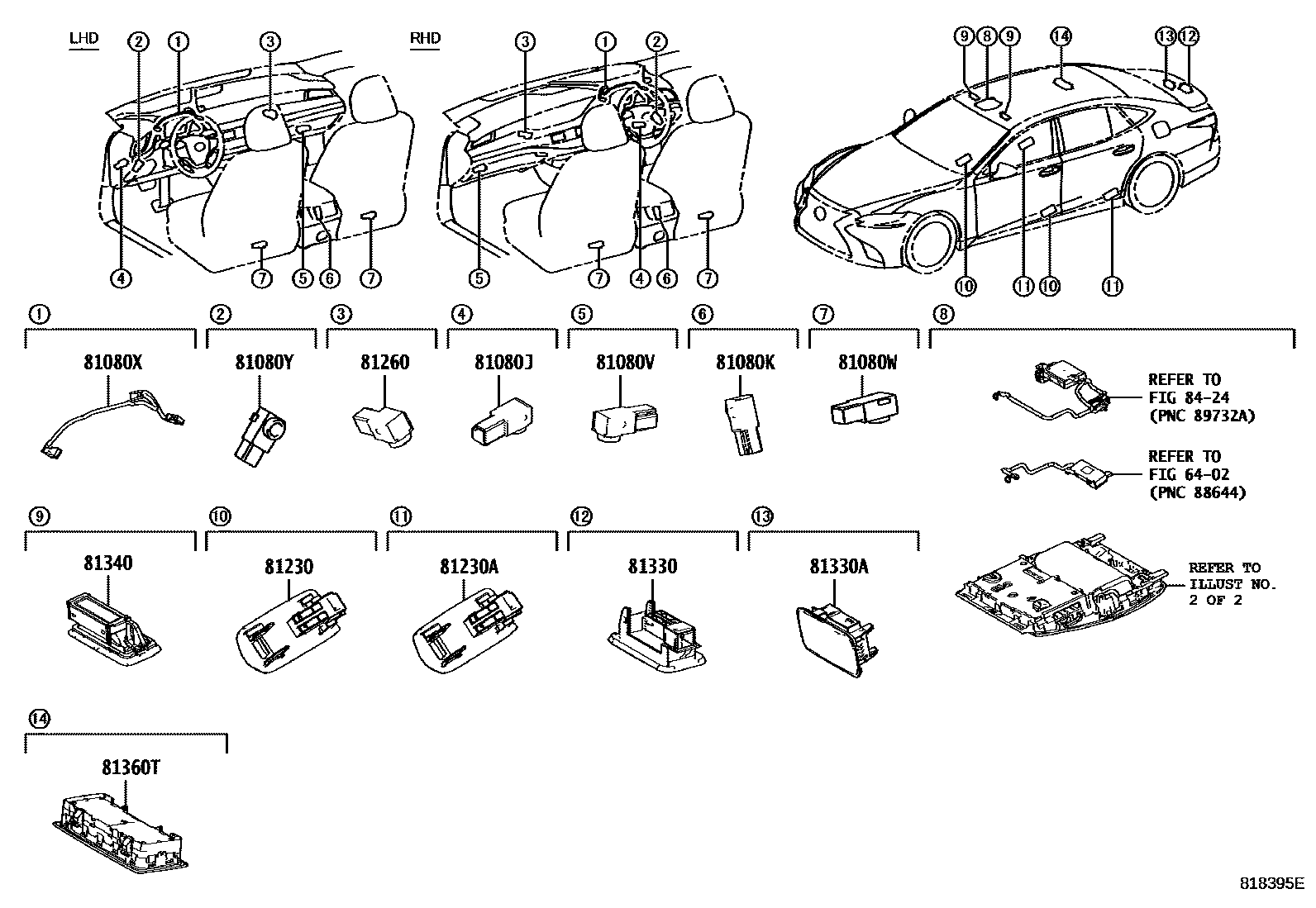

INTERIOR LAMP
6402
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
"EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&REAR SEAT ADJUSTER-POWER & OTTOMAN
"EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&SEAT COVER MATERIAL-L-ANILINE&REAR SEAT ADJUSTER-POWER & OTTOMAN
"EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW)&SEAT COVER MATERIAL-L-ANILINE&REAR SEAT ADJUSTER-POWER & OTTOMAN
"EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)&REAR SEAT ADJUSTER-POWER & OTTOMAN
"VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L)&REAR SEAT ADJUSTER-POWER
"VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L)&REAR SEAT ADJUSTER-POWER
81080XLAMP ASSY, METER HOOD ILLUMINATION
81080YLAMP ASSY, COIN BOX
81230LAMP ASSY, COURTESY
81230ALAMP ASSY, COURTESY, NO.2
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330ALAMP ASSY, LUGGAGE COMPARTMENT, NO.2
81340LAMP ASSY, VANITY
81360TLAMP ASSY, SPOT
L WHITE,TRIM04,05,45,59
L WHITE,TRIM03,04,05,40,45,51,59
L WHITE,TRIM0#,1#,40,45,47,51,57,59
L WHITE,TRIM04,05,1#,40,45,47,51,57,59
BLACK,TRIM2#,3#
BLACK,TRIM06,2#,3#
NOBLE BROWN,TRIM46,48,49,52,53,9#
NOBLE BROWN,TRIM48,49,52,53,9#
NOBLE BROWN,TRIM48,49,53,9#
NOBLE BROWN,TRIM46,48,49,53,9#
8424
15 parts on this diagram · 4 diagrams in section
