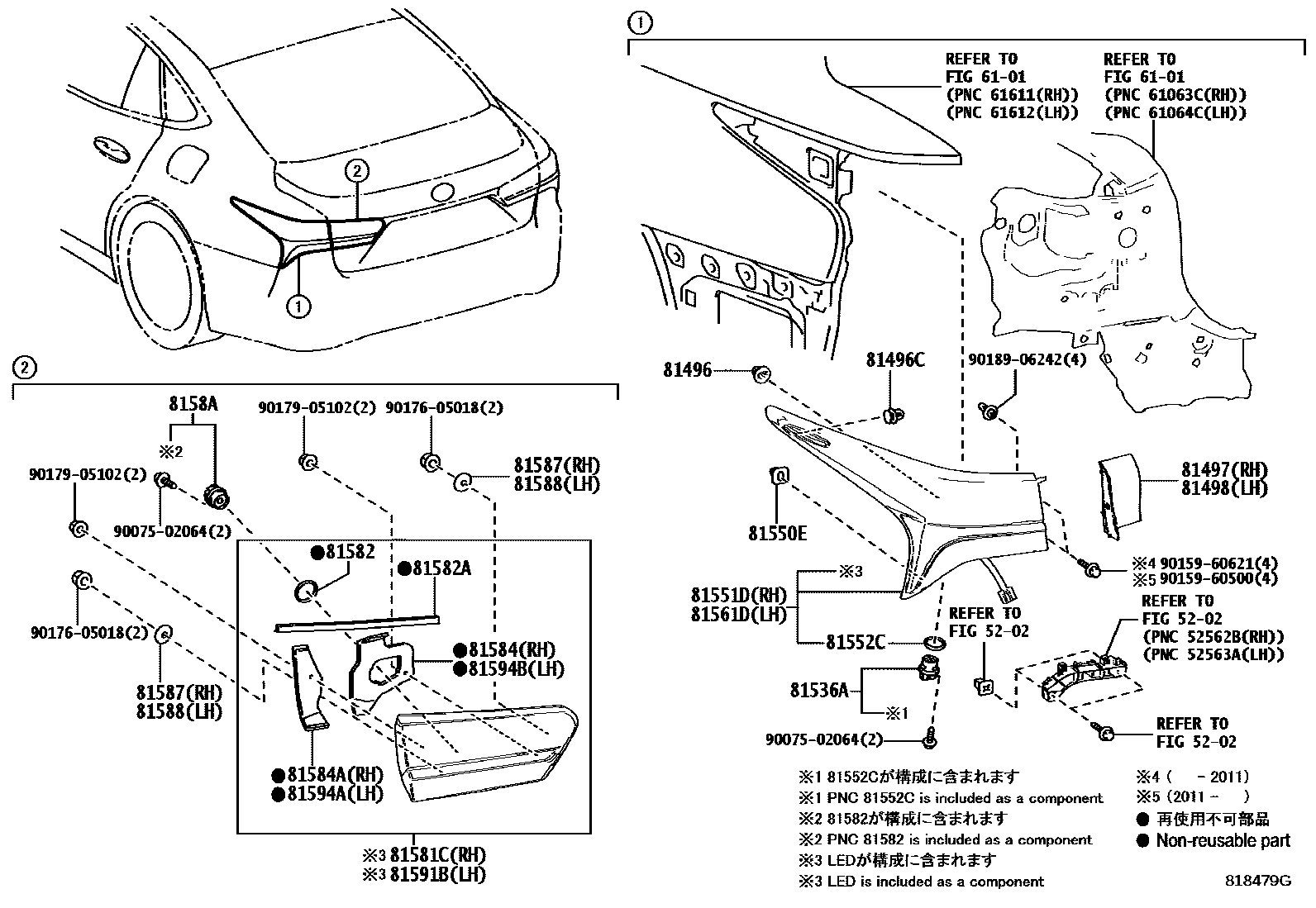

REAR COMBINATION LAMP

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iGSF50..GEN¥70201710-202509

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iGSF50,GVF50,VXFA50¥100201710-202509

81497COVER, REAR COMBINATION LAMP, RH

main81497-50040iGSF50,GVF50,VXFA50¥1,010201710-202509

81498COVER, REAR COMBINATION LAMP, LH

main81498-50040iGSF50,GVF50,VXFA50¥1,010201710-202509

81536ALED, REAR COMBINATION LAMP

main81536-52C80iGSF50,GVF50,VXFA50¥2,590201710-202509

81550ECLIP(FOR REAR COMBINATION LAMP)

main76817-26040iGSF50,GVF50,VXFA50¥110201710-202509

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-50280iGSF50..GEN¥62,600202010-202509

main81551-50310iGSF50,GVF50,VXFA50¥82,600201710-201907

sub81551-50311¥82,600

main81551-50311iGSF50,GVF50,VXFA50¥82,600201907-202010

81552CGASKET, REAR COMBINATION LAMP

main90075-68010iGSF50..GCC;GVF50,VXFA50¥610201710-202509

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-50280iGSF50..GEN¥62,600202010-202509

main81561-50310iGSF50,GVF50,VXFA50¥82,600201710-201907

sub81561-50311¥82,600

main81561-50311iGSF50,GVF50,VXFA50¥82,600201907-202010

81581CLENS AND BODY, REAR LAMP, RH

main81581-50310iGSF50,GVF50,VXFA50¥78,100201710-201907

sub81581-50311¥78,000

main81581-50311iGSF50,GVF50,VXFA50¥78,000201907-202010

main81581-50360iGSF50..GCC;GVF50,VXFA50¥59,100202010-202509

81582GASKET, REAR LAMP

main90075-68010iGSF50,GVF50,VXFA50¥610201710-202509

81582AEND RUBBER REAR LAMP

main81588-50290iGSF50,GVF50,VXFA50¥180201710-202509

81584PACKING, REAR LAMP RH

main81582-50290iGSF50,GVF50,VXFA50¥670201710-202509

81584AGASKET, REAR LAMP RH

main81584-50290iGSF50,GVF50,VXFA50¥670201710-202509

81587PROTECTOR, REAR LAMP, RH

main81584-24050iGSF50,GVF50,VXFA50¥140201710-202509

81588PROTECTOR, REAR LAMP, LH

main81584-24050iGSF50,GVF50,VXFA50¥140201710-202509

8158ALED, REAR LAMP

main81536-52C80iGSF50,GVF50,VXFA50¥2,590201710-202509

81591BLENS AND BODY, REAR LAMP, LH

main81591-50310iGSF50,GVF50,VXFA50¥78,100201710-201907

sub81591-50311¥78,000

main81591-50311iGSF50,GVF50,VXFA50¥78,000201907-202010

main81591-50360iGSF50..GEN¥59,100202010-202509

81594AGASKET, REAR LAMP LH

main81594-50290iGSF50,GVF50,VXFA50¥670201710-202509

81594BPACKING, REAR LAMP LH

main81592-50290iGSF50,GVF50,VXFA50¥670201710-202509

9007502064

main90075-02064¥60

9015960500

main90159-60500¥70

9015960621

main90159-60621¥60

9017605018

main90176-05018¥70

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

28 parts on this diagram · 1 diagram in section
