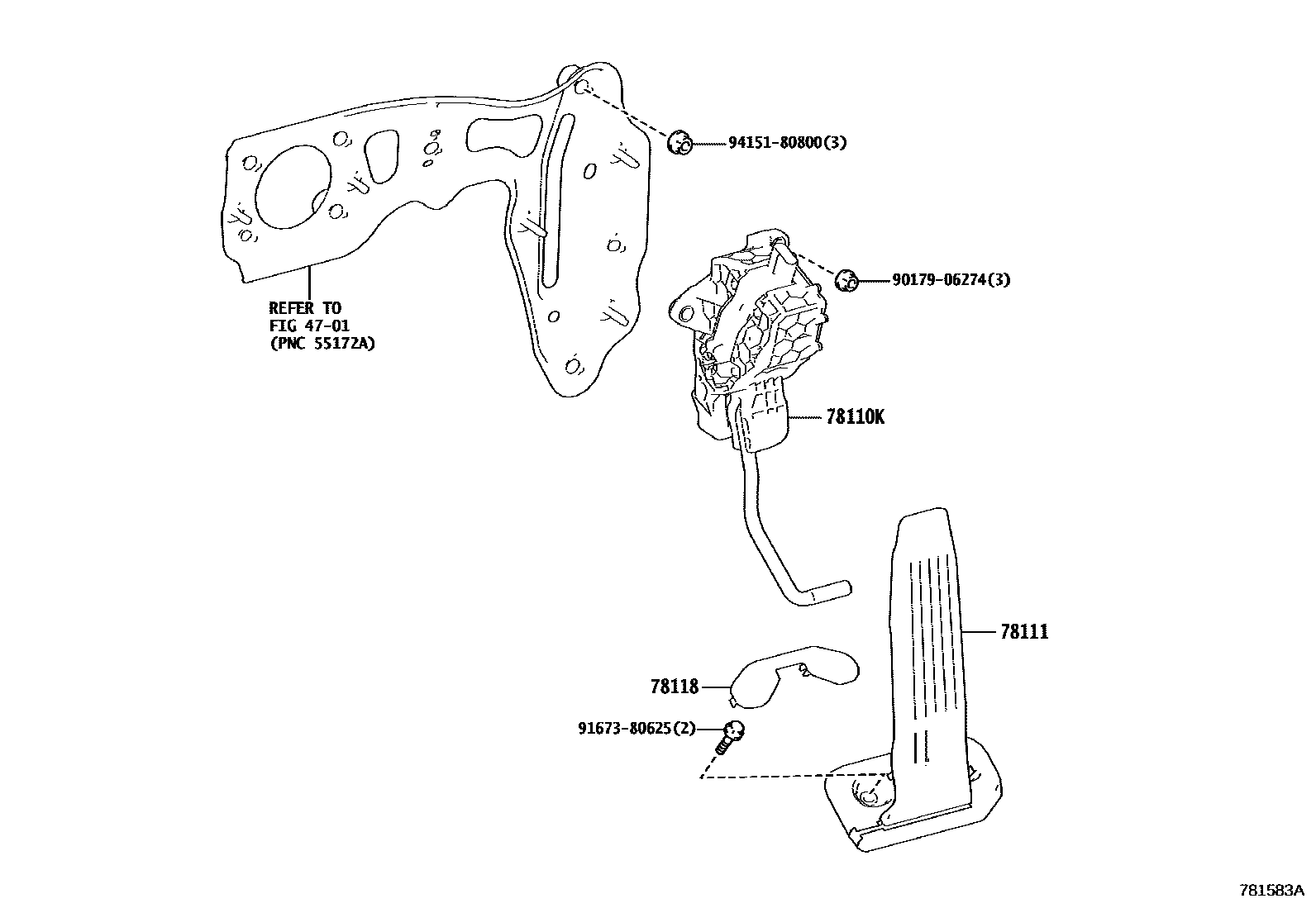

ACCELERATOR LINK

0001 1 0002 1F SPORT 0003 1 0004 1F SPORT

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-11010iGSF50,GVF50,VXFA50..LHD201710-202009

sub78110-11011

main78110-11011iGSF50,GVF50,VXFA50..LHD202010

main78110-11020iGSF50,GVF50,VXFA50..RHD201710-202006

sub78110-11021

main78110-11021iGSF50,GVF50,VXFA50..RHD202007-202509

78111PEDAL, ACCELERATOR

main78101-50050iGSF50..GEN201710-202509

78118PAD, ACCELERATOR PEDAL

main78117-11010iGSF50,GVF50,VXFA50201710-202509

9017906274

main90179-06274

9167380625

main91673-80625

9415180800

main94151-80800

7 parts on this diagram · 4 diagrams in section
