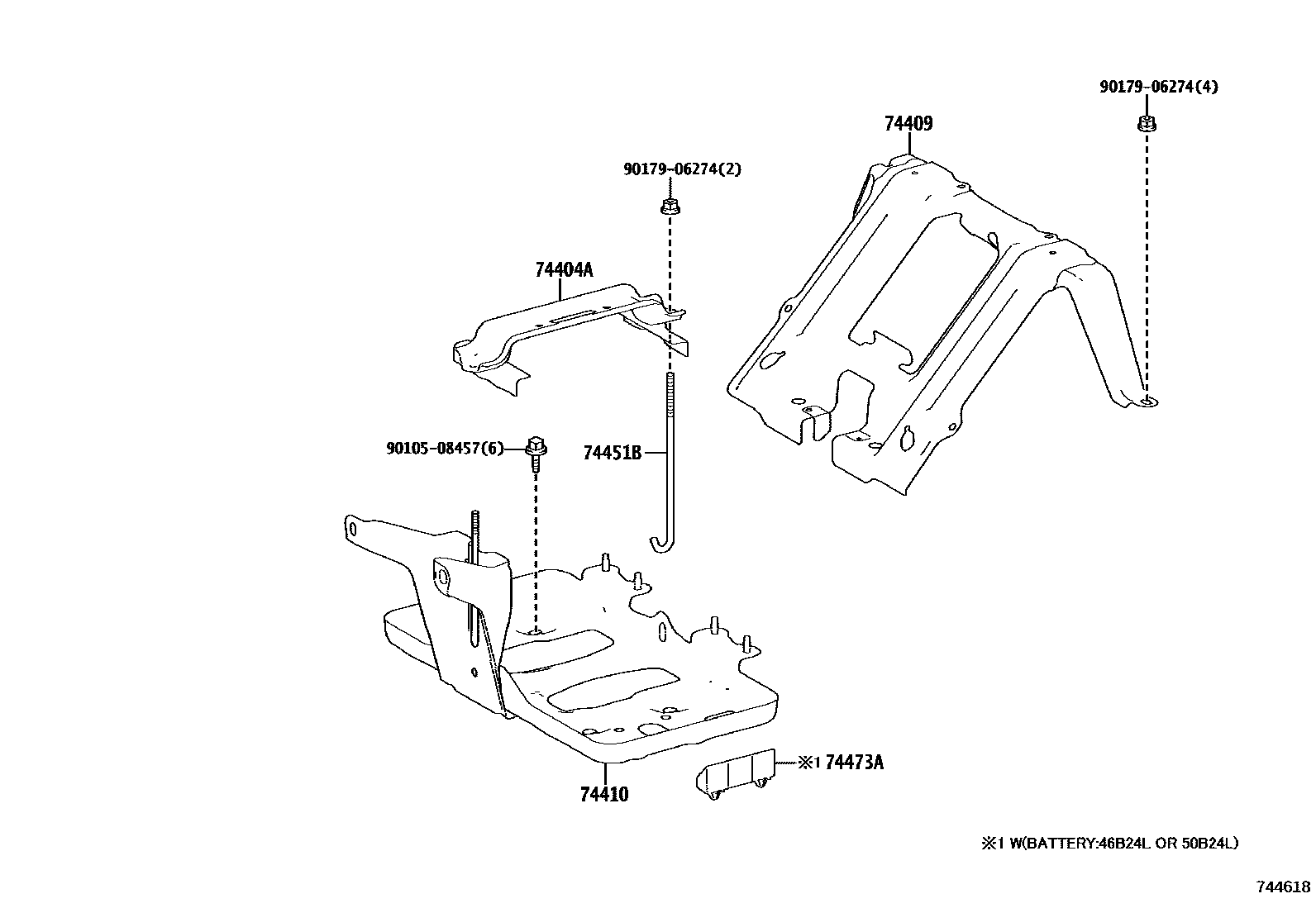

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-11010iGSF50,GVF50,VXFA50201710-202509

74409BRACKET SUB-ASSY, BATTERY CARRIER CATCH

main74409-50010iGSF50,GVF50,VXFA50201710-202509

74410CARRIER ASSY, BATTERY

main74410-50040iGSF50,GVF50,VXFA50201710-202509

74451BBOLT, BATTERY CLAMP

main74451-35090iGSF50,GVF50,VXFA50201710-202509

74473ASPACER, BATTERY, NO.1

main74473-11020iGSF50,VXFA50;GVF50..GCC,GEN201710-202509

9010508457

main90105-08457

9017906274

main90179-06274

7 parts on this diagram · 1 diagram in section
