EPC Data

REAR SEAT & SEAT TRACK

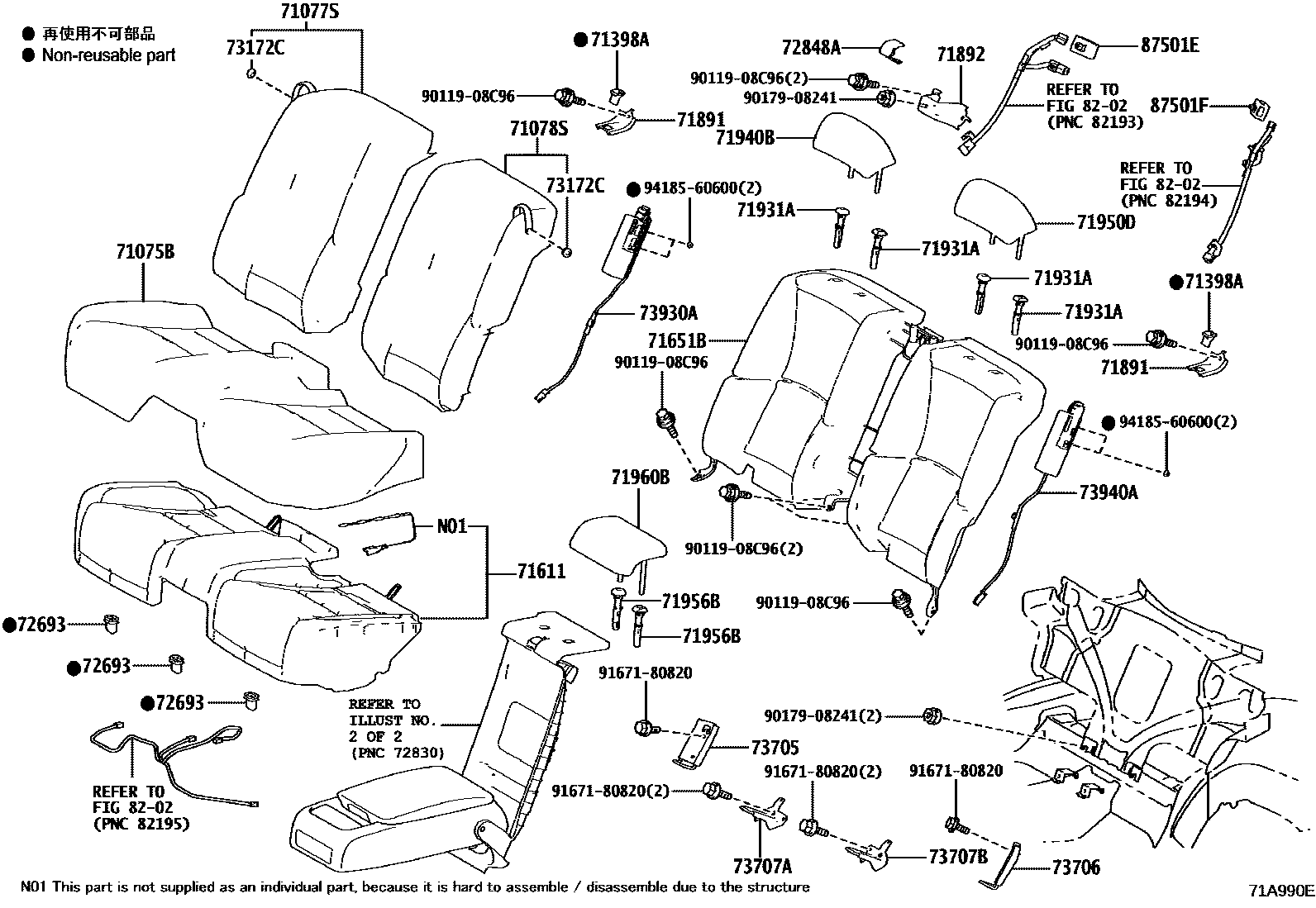

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-50L70-A7i201710-202010
IVORY/IVORY,TRIM4#
main71075-50L70-C7i201710-202010
BLACK/LT.GRAY,TRIM2#
main71075-50L70-F4i201809-202010
T.BROWM/SHELL,TRIM5#
main71075-50N10-A4i201711-202010
IVORY/IVORY,TRIM4#
main71075-50N10-B3i201711-202010
CHATEAU/SHELL,TRIM1#
main71075-50N10-C2i201711-202010
BLACK/LT.GRAY,TRIM2#
main71075-50N10-F3i201711-202010
T.BROWN/SHELL,TRIM5#
main71075-50P40-A1i202010-202111
WHITE,TRIM0#
main71075-50P40-C1i202011-202111
BLACK,TRIM2#
main71075-50P40-E1i202010-202111
HAZEL,TRIM4#
main71075-50P41-A1i202111
WHITE,TRIM0#
main71075-50P41-C1i202111-202510
BLACK,TRIM2#
main71075-50P41-E1i202111
HAZEL,TRIM4#
main71075-50P90-A1i202011-202111
WHITE,TRIM0#
main71075-50P90-B1i202011-202111
CHATEAU,TRIM1#
main71075-50P90-C1i202011-202111
BLACK,TRIM2#
main71075-50P90-E1i202011-202111
HAZEL,TRIM4#
main71075-50P91-A1i202111
WHITE,TRIM0#
main71075-50P91-B1i202111
CHATEAU,TRIM1#
main71075-50P91-C1i202111
BLACK,TRIM2#
main71075-50P91-E1i202111
HAZEL,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-50F50-A3i201710-202010
IVORY/IVORY,TRIM4#
main71077-50F50-C3i201710-202010
BLACK/LT.GRAY,TRIM2#
main71077-50F50-F2i201809-202010
T.BROWN/SHELL,TRIM5#
main71077-50M80-A3i201711-202010
IVORY/IVORY,TRIM4#
main71077-50M80-B2i201711-202010
CHATEAU/SHELL,TRIM1#
main71077-50M80-C1i201711-202010
BLACK/LT.GRAY,TRIM2#
main71077-50M80-F2i201711-202010
T.BROWN/SHELL,TRIM5#
main71077-50P00-A2i202010
WHITE,TRIM0#
main71077-50P00-C1i202011-202510
BLACK,TRIM2#
main71077-50P00-E1i202010
HAZEL,TRIM4#
main71077-50P60-A2i202011
WHITE,TRIM0#
main71077-50P60-B1i202011
CHATEAU,TRIM1#
main71077-50P60-C1i202011
BLACK,TRIM2#
main71077-50P60-E1i202011
HAZEL,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-50J50-A3i201710-202010
IVORY/IVORY,TRIM4#
main71078-50J50-C3i201710-202010
BLACK/LT.GRAY,TRIM2#
main71078-50J50-F2i201809-202010
T.BROWN/SHELL,TRIM5#
main71078-50K60-A3i201711-202010
IVORY/IVORY,TRIM4#
main71078-50K60-B2i201711-202010
CHATEAU/SHELL,TRIM1#
main71078-50K60-C1i201711-202010
BLACK/LT.GRAY,TRIM2#
main71078-50K60-F2i201711-202010
T.BROWN/SHELL,TRIM5#
main71078-50L80-A2i202010
WHITE,TRIM0#
main71078-50L80-C1i202011-202510
BLACK,TRIM2#
main71078-50L80-E1i202010
HAZEL,TRIM4#
main71078-50M40-A2i202011
WHITE,TRIM0#
main71078-50M40-B1i202011
CHATEAU,TRIM1#
main71078-50M40-C1i202011
BLACK,TRIM2#
main71078-50M40-E1i202011
HAZEL,TRIM4#
71398AHOLDER, REAR SEATBACK
main71398-30010i201710-202509
71611PAD, REAR SEAT CUSHION
main71503-50150i201710-202509
main71503-50160i202310
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-50060i201710-202509
71891BRACKET, REAR SEATBACK SET, NO.1
main71891-50030i201710-202509
71892BRACKET, REAR SEATBACK SET, NO.2
main71892-50020i201710-202509
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-21i201710-202010
W(LOCK),BLACK,TRIM0#,2#,3#,4#,5#
sub71930-44020
sub71930-02370
main71930-44020-21i201710-202010
W(LOCK),BLACK,TRIM0#,2#,3#
sub71930-44020
sub71930-02370
main71930-44020-21i202011
W(LOCK),BLACK,TRIM0#,1#,2#,3#
sub71930-44020
sub71930-02370
main71930-44020-21i201710-202010
W(LOCK),BLACK,TRIM0#,2#,3#,5#
sub71930-44020
sub71930-02370
main71930-44020-21i202010
W(LOCK),BLACK,TRIM0#
sub71930-44020
sub71930-02370
main71930-44020-21i202011-202509
W(LOCK),BLACK,TRIM0#,1#,2#
sub71930-44020
sub71930-02370
main71930-44020-21i201711-202010
W(LOCK),BLACK,TRIM1#,2#,5#
sub71930-44020
sub71930-02370
main71930-44020-21i201711-202010
W(LOCK),BLACK,TRIM0#,1#,2#,3#,5#
sub71930-44020
sub71930-02370
main71930-44020-A4i201710-202010
W(LOCK),IVORY,TRIM4#
sub71930-44020
sub71930-02370
main71930-44020-L3i202010
W(LOCK),HAZEL,TRIM4#
sub71930-44020
sub71930-02370
main71931-47010-A8i201710-202010
W/O(LOCK),IVORY,TRIM4#
sub71931-47010
sub71931-42020
main71931-47010-C8i201710-202010
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,5#
sub71931-47010
sub71931-42020
main71931-47010-C8i201710-202010
W/O(LOCK),BLACK,TRIM0#,2#,3#
sub71931-47010
sub71931-42020
main71931-47010-C8i201710-202010
W/O(LOCK),"I PACKAGE"*(I),BLACK,TRIM0#,2#,3#,5#
sub71931-47010
sub71931-42020
main71931-47010-C8i201710-202010
W/O(LOCK),"F SPORT"*(F)&SEAT COVER MATERIAL-F SPORT,BLACK,TRIM0#,2#,3#,5#
sub71931-47010
sub71931-42020
main71931-47010-C8i201711-202010
W/O(LOCK),BLACK,TRIM1#,2#,5#
sub71931-47010
sub71931-42020
main71931-47010-C8i201711-202010
W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,5#
sub71931-47010
sub71931-42020
main71931-47010-C8i202011-202509
W/O(LOCK),BLACK,TRIM0#,1#,2#
sub71931-47010
sub71931-42020
main71931-47010-C8i202010
W/O(LOCK),BLACK,TRIM0#
sub71931-47010
sub71931-42020
main71931-47010-C8i202011
W/O(LOCK),BLACK,TRIM0#,1#,2#,3#
sub71931-47010
sub71931-42020
main71931-47010-L7i202010
W/O(LOCK),HAZEL,TRIM4#
sub71931-47010
sub71931-42020
71940BHEADREST ASSY, REAR SEAT, RH
main71940-50750-03i202010
WHITE/MELLOW WHITE,TRIM05
main71940-50750-03i202010
WHITE/MELLOW WHITE,TRIM0#
main71940-50750-A7i201710-202010
"F SPORT"*(F)&SEAT COVER MATERIAL-F SPORT,WHITE/LT.GRAY,TRIM0#
main71940-50750-A7i201710-202010
SUN SHADE-WITH(BACK WINDOW),WHITE/LT.GRAY,TRIM0#
main71940-50750-A7i201710-202010
"F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW)&SEAT COVER MATERIAL-F SPORT,WHITE/LT.GRAY,TRIM0#
main71940-50750-A7i201710-202010
WHITE/LT.GRAY,TRIM0#
main71940-50750-A8i201710-202010
IVORY/IVORY,TRIM4#
main71940-50750-C4i201710-202509
BLACK/LT.GRAY,TRIM2#
main71940-50750-C4i201710-202010
"I PACKAGE"*(I),BLACK/LT.GRAY,TRIM2#
main71940-50750-C4i201710-202010
"F SPORT"*(F)&SEAT COVER MATERIAL-F SPORT,BLACK/LT.GRAY,TRIM2#
main71940-50750-C4i202010
BLACK/LT.GRAY,TRIM06,08,2#
main71940-50750-C4i202011
BLACK/LT.GRAY,TRIM0#,2#
main71940-50750-C7i202010
BLACK/FLARE RED,TRIM3#
main71940-50750-E7i202010
HAZEL/SADDLE TAN,TRIM4#
main71940-50750-F3i201809-202010
TOPAZ BROWN/SHELL,TRIM5#
main71940-50A20-A0i201711-202010
IVORY/IVORY,TRIM4#
main71940-50A20-A3i202011
WHITE,TRIM0#
main71940-50A20-B0i201711-202010
CHATEAU/SHELL,TRIM1#
main71940-50A20-B1i202011
CHATEAU,TRIM1#
main71940-50A20-C0i201711-202010
BLACK/LT.GRAY,TRIM2#
main71940-50A20-E1i202011
HAZEL,TRIM4#
main71940-50A20-F0i201711-202010
T.BROWN/SHELL,TRIM5#
71950DHEADREST ASSY, REAR SEAT, LH
main71940-50750-03i202010
WHITE/MELLOW WHITE,TRIM05
main71940-50750-03i202010
WHITE/MELLOW WHITE,TRIM0#
main71940-50750-A7i201710-202010
"F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW)&SEAT COVER MATERIAL-F SPORT,WHITE/LT.GRAY,TRIM0#
main71940-50750-A7i201710-202010
"F SPORT"*(F)&SEAT COVER MATERIAL-F SPORT,WHITE/LT.GRAY,TRIM0#
main71940-50750-A7i201710-202010
SUN SHADE-WITH(BACK WINDOW),WHITE/LT.GRAY,TRIM0#
main71940-50750-A7i201710-202010
WHITE/LT.GRAY,TRIM0#
main71940-50750-A8i201710-202010
IVORY/IVORY,TRIM4#
main71940-50750-C4i201710-202509
BLACK/LT.GRAY,TRIM2#
main71940-50750-C4i201710-202010
"I PACKAGE"*(I),BLACK/LT.GRAY,TRIM2#
main71940-50750-C4i201710-202010
"F SPORT"*(F)&SEAT COVER MATERIAL-F SPORT,BLACK/LT.GRAY,TRIM2#
main71940-50750-C4i202010
BLACK/LT.GRAY,TRIM06,08,2#
main71940-50750-C4i202011
BLACK/LT.GRAY,TRIM0#,2#
main71940-50750-C7i202010
BLACK/FLARE RED,TRIM3#
main71940-50750-E7i202010
HAZEL/SADDLE TAN,TRIM4#
main71940-50750-F3i201809-202010
TOPAZ BROWN/SHELL,TRIM5#
main71940-50A20-A0i201711-202010
IVORY/IVORY,TRIM4#
main71940-50A20-A3i202011
WHITE,TRIM0#
main71940-50A20-B0i201711-202010
CHATEAU/SHELL,TRIM1#
main71940-50A20-B1i202011
CHATEAU,TRIM1#
main71940-50A20-C0i201711-202010
BLACK/LT.GRAY,TRIM2#
main71940-50A20-E1i202011
HAZEL,TRIM4#
main71940-50A20-F0i201711-202010
T.BROWN/SHELL,TRIM5#
71956BSUPPORT, REAR SEAT HEADREST
main71955-30010-A2i201710-202010
W(LOCK),IVORY,TRIM4#
sub71955-30010
main71955-30010-C1i201710-202010
W(LOCK),BLACK,TRIM0#,2#,3#
sub71955-30010
main71955-30010-C1i201710-202010
W(LOCK),BLACK,TRIM0#,2#,3#,5#
sub71955-30010
main71955-30010-C1i201711-202010
W(LOCK),BLACK,TRIM1#,2#,5#
sub71955-30010
main71955-30010-C1i201711-202010
W(LOCK),BLACK,TRIM0#,1#,2#,3#,5#
sub71955-30010
main71955-30010-C1i202011-202509
W(LOCK),BLACK,TRIM0#,1#,2#
sub71955-30010
main71955-30010-C1i202011-202510
W(LOCK),BLACK,TRIM0#,1#,2#,3#
sub71955-30010
main71955-30010-C1i202010
W(LOCK),BLACK,TRIM0#
sub71955-30010
main71955-30010-E6i202010
W(LOCK),HAZEL,TRIM4#
sub71955-30010
main71956-30030-A2i201710-202010
W/O(LOCK),IVORY,TRIM4#
sub71956-30030
main71956-30030-C1i201710-202010
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,5#
sub71956-30030
main71956-30030-C1i201710-202010
W/O(LOCK),BLACK,TRIM0#,2#,3#
sub71956-30030
main71956-30030-C1i201710-202010
W/O(LOCK),"I PACKAGE"*(I),BLACK,TRIM0#,2#,3#,5#
sub71956-30030
main71956-30030-C1i201710-202010
W/O(LOCK),"F SPORT"*(F)&SEAT COVER MATERIAL-F SPORT,BLACK,TRIM0#,2#,3#,5#
sub71956-30030
main71956-30030-C1i202010
W/O(LOCK),BLACK,TRIM0#
sub71956-30030
main71956-30030-C1i202011-202510
W/O(LOCK),BLACK,TRIM0#,1#,2#,3#
sub71956-30030
main71956-30030-C1i201711-202010
W/O(LOCK),BLACK,TRIM1#,2#,5#
sub71956-30030
main71956-30030-C1i201711-202010
W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,5#
sub71956-30030
main71956-30030-C1i202011-202509
W/O(LOCK),BLACK,TRIM0#,1#,2#
sub71956-30030
main71956-30030-E6i202010
W/O(LOCK),HAZEL,TRIM4#
sub71956-30030
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-50280-02i201710-202010
IVORY/IVORY,TRIM4#
main71960-50280-03i202010-202111
WHITE/WHITE,TRIM0#
main71960-50280-C7i201710-202111
BLACK/BLACK,TRIM2#
main71960-50280-C7i201710-202010
"I PACKAGE"*(I),BLACK/BLACK,TRIM2#
main71960-50280-C7i201710-202010
"F SPORT"*(F)&SEAT COVER MATERIAL-F SPORT,BLACK/BLACK,TRIM2#
main71960-50280-D6i202010-202111
RED/RED,TRIM3#
main71960-50280-E8i202010-202111
HAZEL,TRIM4#
main71960-50280-F5i201809-202010
T.BROWN/T.BROWN,TRIM5#
main71960-50281-05i202111-202510
WHITE,TRIM0#
main71960-50281-C9i202111-202510
BLACK,TRIM2#
main71960-50281-D7i202111-202510
RED,TRIM3#
main71960-50281-L0i202111-202510
HAZEL,TRIM4#
main71960-50350-A0i201711-202010
IVORY/IVORY,TRIM4#
main71960-50350-A1i202011-202111
WHITE,TRIM0#
main71960-50350-B0i201711-202111
CHATEAU/SHELL,TRIM1#
main71960-50350-C0i201711-202111
BLACK,TRIM2#
main71960-50350-E0i202011-202111
HAZEL,TRIM4#
main71960-50350-F0i201711-202010
T.BROWN/SHELL,TRIM5#
main71960-50440-A2i202111
WHITE,TRIM0#
main71960-50440-B2i202111
CHATEAU,TRIM1#
main71960-50440-C2i202111
BLACK,TRIM2#
main71960-50440-E2i202111
HAZEL,TRIM4#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i201710-202010
"VERSION L"*(L)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(VERSION L)
main72693-12080i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-L-ANILINE
main72693-12080i201710-202010
"EXECUTIVE"*(E)&SEAT COVER MATERIAL-SEMI ANILINE LEATHER(EXECUTIVE)
main72693-12080i202010-202509
72848ACAP, SEAT ARMREST, NO.1
main72848-50030-A0i201710-202509
WHITE,TRIM0#
main72848-50030-A1i201710-202010
IVORY,TRIM4#
main72848-50030-B0i201711-202509
CHATEAU,TRIM1#
main72848-50030-C0i201710-202509
BLACK,TRIM2#
main72848-50030-D0i201710-202010
RED,TRIM3#
main72848-50030-E1i202010-202509
HAZEL,TRIM4#
main72848-50030-F0i201710-202010
TOPAZ BROWN,TRIM5#
73172CCAP, REAR SHOULDER BELT HANGER
main73172-50020i201710-202509
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-50050i201710-202509
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-50050i201710-201911
sub73706-50051
main73706-50051i201912-202509
73707ABRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER RH
main73707-50040i201710-202509
73707BBRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER LH
main73707-50050i201710-202509
73930AAIRBAG ASSY, REAR SEAT, RH
main73930-50040i201710-202509
73940AAIRBAG ASSY, REAR SEAT, LH
main73940-50040i201710-202509
8202
87501ECONTROL SUB-ASSY, SEAT HEATER, RH
main87501-48030i201711-202010
87501FCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-48030i201711-202010
9011908C96
main90119-08C96
9017908241
main90179-08241
9167180820
main91671-80820
9418560600
main94185-60600

29 parts on this diagram · 15 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
