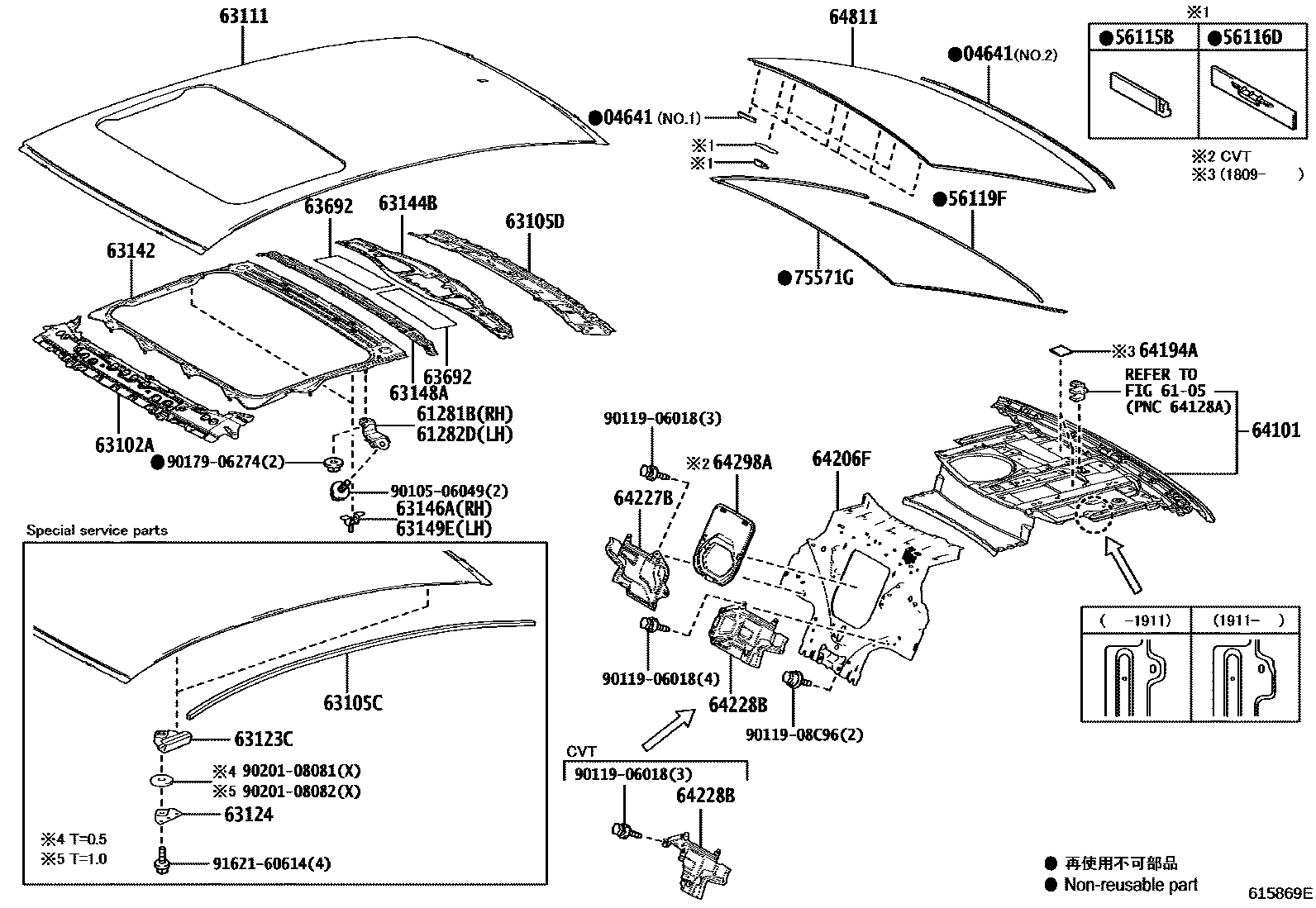

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(MOON) 0002 1ROOF PANEL(PANORAMA) 0003 1SLIDING ROOF(MOON) 0004 1SLIDING ROOF(PANORAMA)

04641DAM KIT, BACK WINDOW GLASS

main56117-24070×6iGSF50..GCC;GVF50,VXFA50202010

NO.1

main56118-50070iGSF50,GVF50,VXFA50201710-202010

NO.2

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iGSF50..GEN202010-202509

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iGSF50..GEN202010-202509

56119FSEAL, WINDSHIELD GLASS

main56119-50100iGSF50..GEN202010-202509

6105

61281BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-50070iGSF50..GEN202010-202509

61282DBRACKET, SLIDING ROOF HOUSUNG SIDE MOUNTING, NO.2

main61281-50070iGSF50..GEN202010-202509

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-50908iGSF50,GVF50,VXFA50201710-202010

main63102-50140iGVF50..CHI202310

"VERSION L"*(L)&ROOF HEAD LINING-SUEDE&AUDIO-DVD & MARKLEVINSON & 24SPEAKER

63105CMOULDING SUB-ASSY, ROOF DRIP

main63215-53010×2iGSF50,GVF50,VXFA50201710-202010

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-50050iGSF50..GEN202010-202509

main63105-50041iGVF50..CHI202310

"VERSION L"*(L)&ROOF HEAD LINING-SUEDE&AUDIO-DVD & MARKLEVINSON & 24SPEAKER

63111PANEL, ROOF

main63111-50190iGSF50..GCC;GVF50,VXFA50202010

63123CREINFORCEMENT, ROOF PANEL

main63123-50010×2iGSF50,GVF50,VXFA50201710-202010

FRONT

main63123-50030×2iGSF50..GCC;GVF50,VXFA50202010

REAR

63124REINFORCEMENT, ROOF PANEL, NO.1

main63124-50010×4iGSF50,GVF50,VXFA50201710-202010

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-50050iGSF50,GVF50,VXFA50201710-202010

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-50040iGSF50,GVF50,VXFA50201710-202010

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-50040iGSF50..GCC;GVF50,VXFA50202010

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-50060iGSF50..GCC;GVF50,VXFA50202010

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63149-50040iGSF50,GVF50,VXFA50201710-202010

63692PAD, ROOF SILENCER, NO.22

main63692-50080×2supersedes 63692-50080iGSF50..GEN202010-202509

64101PANEL SUB-ASSY, UPPER BACK

main64101-50271iGSF50..GEN202010-202509

main64101-50260supersedes 64101-50271iGSF50,GVF50,VXFA50201710-201910

REAR AIR CONDITIONER-WITH(REAR COOLER)

main64101-50261supersedes 64101-50271iGSF50,GVF50,VXFA50201911-202010

REAR AIR CONDITIONER-WITH(REAR COOLER)

64194APAD, BACK PANEL SILENCER, UPPER

main64194-50020×2iGSF50,GVF50,VXFA50201809-202010

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-50100supersedes 64206-50110iVXFA50202010

REAR AIR CONDITIONER-WITH(REAR COOLER)

main64206-50110iGSF50..GEN202010-202509

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-50070iGSF50,GVF50,VXFA50201710-202010

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-50070iGSF50,VXFA50201710-201908

main64228-50071iGSF50..GEN202010-202509

main64228-50080iGVF50201710-201908

main64228-50081iGVF50202010

64298APANEL, ROOM PARTITION CENTER

main64298-50010iGVF50202010

64811GLASS, BACK WINDOW

main64801-50900supersedes 64801-50901iGSF50,GVF50,VXFA50201710-202010

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-50080iGSF50..GEN202010-202509

9010506049

main90105-06049

9011906018

main90119-06018

9011908C96

main90119-08C96

9017906274

main90179-06274

9020108081

main90201-08081

9020108082

main90201-08082

9162160614

main91621-60614

34 parts on this diagram · 4 diagrams in section
