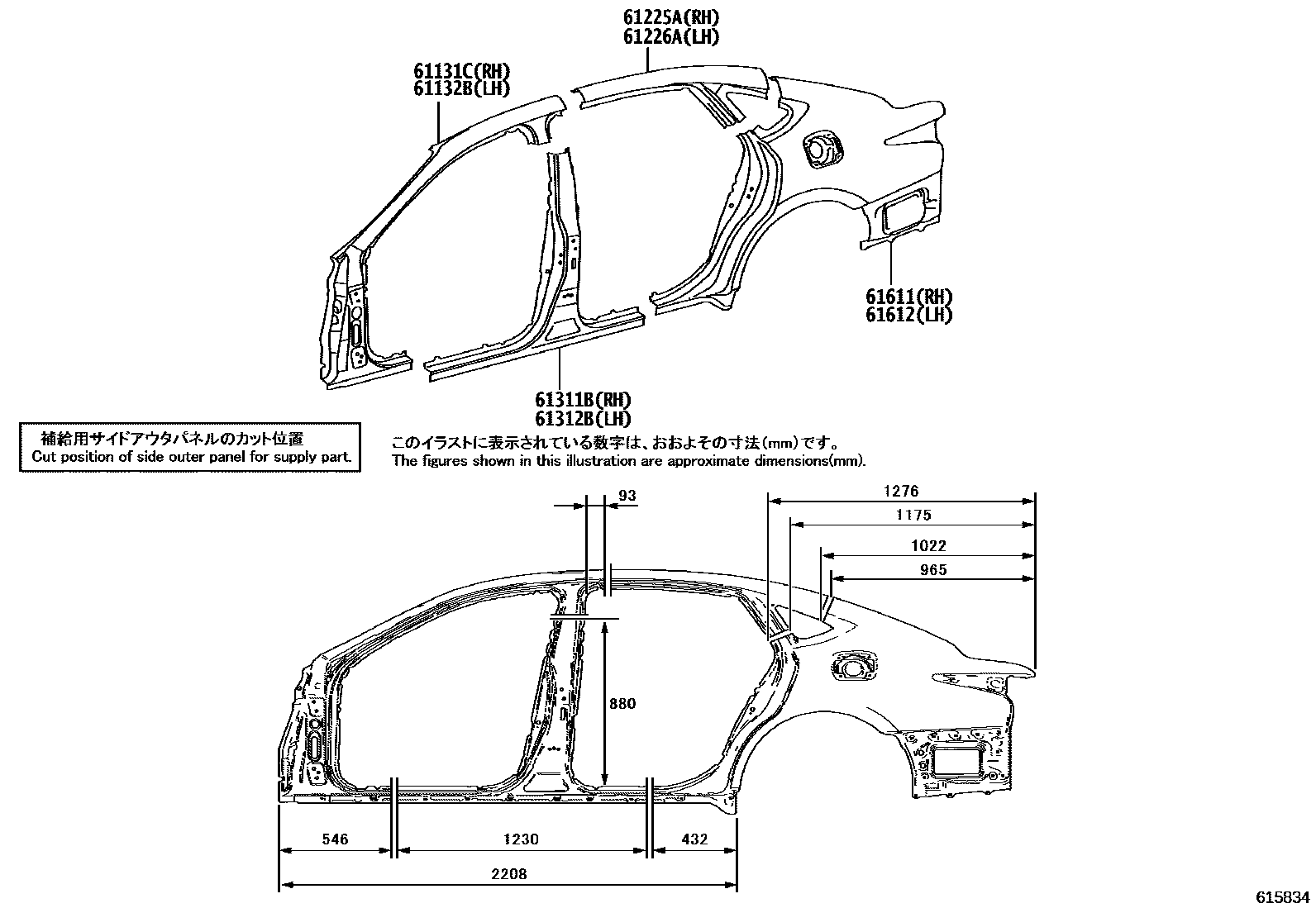

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-50060iGSF50,GVF50,VXFA50201710-202509

61132BPILLAR, FRONT BODY, OUTER LH

main61132-50060iGSF50,GVF50,VXFA50201710-202509

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-50040iGSF50,GVF50,VXFA50201710-202509

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-50050iGSF50,GVF50,VXFA50201710-202509

61311BPILLAR, CENTER BODY, OUTER RH

main61311-50060iGSF50,GVF50,VXFA50201710-202509

61312BPILLAR, CENTER BODY, OUTER LH

main61312-50090iGSF50,GVF50,VXFA50201710-202509

61611PANEL, QUARTER, RH

main61601-50070iGSF50,GVF50,VXFA50201710-202509

61612PANEL, QUARTER, LH

main61602-50110iGSF50,GVF50,VXFA50201710-202509

8 parts on this diagram · 3 diagrams in section
