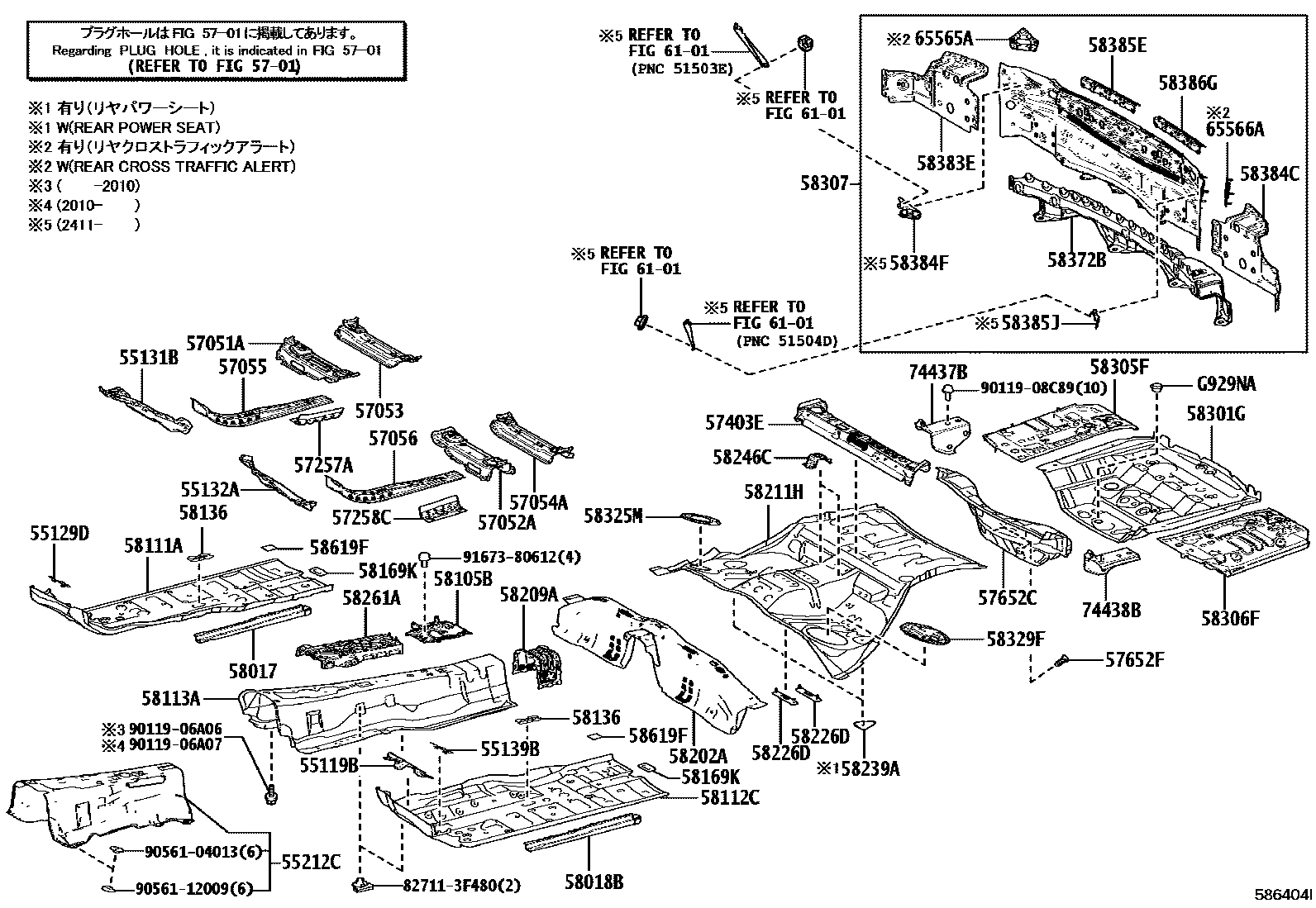

FLOOR PAN & LOWER BACK PANEL
55119BEXTENSION, DASH PANEL, LH
55129DCOVER, DASH PANEL HOLE, RH
55131BREINFORCEMENT, TOE BOARD, RH
55132AREINFORCEMENT, TOE BOARD, LH
55139BCOVER, DASH PANEL HOLE, LH
55212CSILENCER, FRONT PANEL, LOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5
57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57652FBOLT, WELD(FOR REAR FLOOR CROSSMEMBER)
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58136COVER, FRONT FLOOR HOLE
58169KPATCH, FRONT FLOOR, REAR
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58226DPATCH, BRACKET CENTER MOUNTING
58239APLATE, BELT ANCHOR NUT
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58261ACOVER, TRANSMISSION
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
MALAYSIA SPEC
AUSTRALIA OR NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+
THAILAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+
SINGAPORE SPEC
INDONESIA SPEC
BURNEI SPEC
LANE CHANGE ASSIST-WITH(*BSM & *RCTA)
BACK MONITOR-WITH(*PVM)
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58372BPANEL, BODY LOWER BACK, LOWER
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58384FBRACKET, LOWER BACK PANEL, NO.1 RH
58385EBRACKET, REAR BUMPER COVER, RH
58385JBRACKET, LOWER BACK PANEL, NO.1 LH
58386GBRACKET, REAR BUMPER COVER, LH
58619FSHEET, CENTER FLOOR SILENCER
6101
65565APATCH, SIDE PANEL REAR END, RH
MALAYSIA SPEC
AUSTRALIA OR NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+
THAILAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+
SINGAPORE SPEC
INDONESIA SPEC
BURNEI SPEC
LANE CHANGE ASSIST-WITH(*BSM & *RCTA)
65566APATCH, SIDE PANEL REAR END, LH
MALAYSIA SPEC
AUSTRALIA OR NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+
THAILAND SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+
SINGAPORE SPEC
INDONESIA SPEC
BURNEI SPEC
LANE CHANGE ASSIST-WITH(*BSM & *RCTA)
74437BBRACKET, BATTERY CARRIER, NO.5
74438BBRACKET, BATTERY CARRIER, NO.6
G929NAPLUG, BATTERY DRAIN
827113F480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F480
9011906A06
main90119-06A06
9011906A07
main90119-06A07
9011908C89
main90119-08C89
9056104013
main90561-04013
9056112009
main90561-12009
9167380612
main91673-80612
60 parts on this diagram · 4 diagrams in section
