FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1HONG KONG, MACAU OR TAIWAN SP0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1RADIATOR SUPPORT & FENDER APR0006 1RADIATOR SUPPORT & FENDER APR0007 1RADIATOR SUPPORT & FENDER APR0008 1RADIATOR SUPPORT & FENDER APR0009 1FENDER APRON 0010 1DASH PANEL 0011 1DASH PANEL

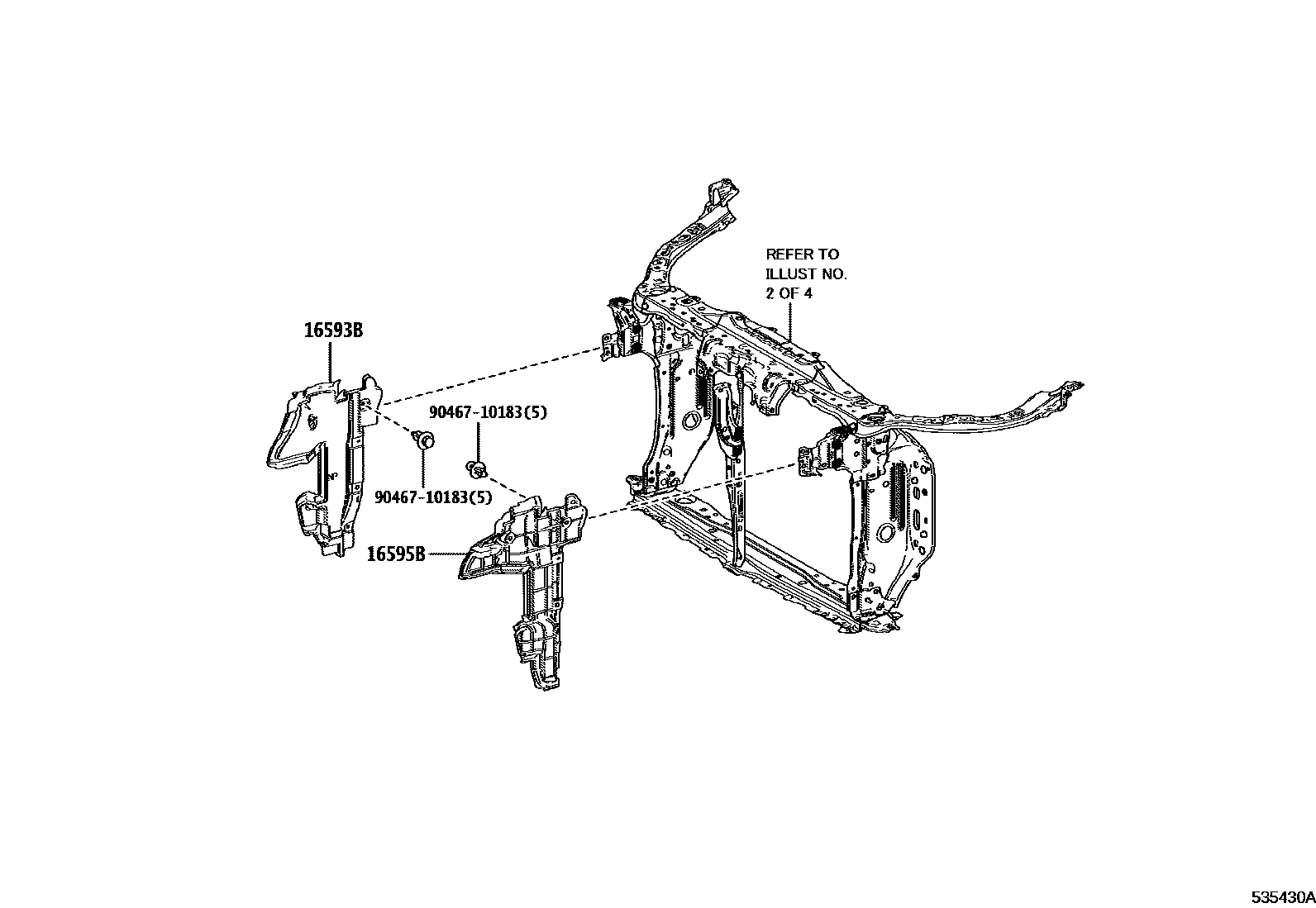

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-31020i8GRFXS..GVF50..RHD201909-201911

HONG KONG OR MACAU SPEC

sub16593-31021

main16593-31021i8GRFXS..GVF50..RHD201912-202310

HONG KONG OR MACAU SPEC

main16593-31021i8GRFXS..GVF50..RHD202011-202310

TAIWAN SPEC

main16593-31021i8GRFXS..GVF50..RHD202111-202310

SINGAPORE SPEC

main16593-70010iV35AFTS,8GR#..GSF50,GVF50,VXFA50201710-201911

sub16593-70011

main16593-70011i8GRFKS..GSF50..GEN201912-202509

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-31020i8GRFXS..GVF50..RHD201909-201911

HONG KONG OR MACAU SPEC

sub16595-31021

main16595-31021i8GRFXS..GVF50..LHD..GEN202011-202310

TAIWAN SPEC

main16595-31021i8GRFXS..GVF50..RHD201912-202310

HONG KONG OR MACAU SPEC

main16595-31021i8GRFXS..GVF50..RHD202111-202310

SINGAPORE SPEC

main16595-70010iV35AFTS,8GR#..GSF50,GVF50,VXFA50201710-201911

sub16595-70011

main16595-70011i8GRFKS..GSF50..GEN201912-202509

9046710183

main90467-10183

3 parts on this diagram · 11 diagrams in section
