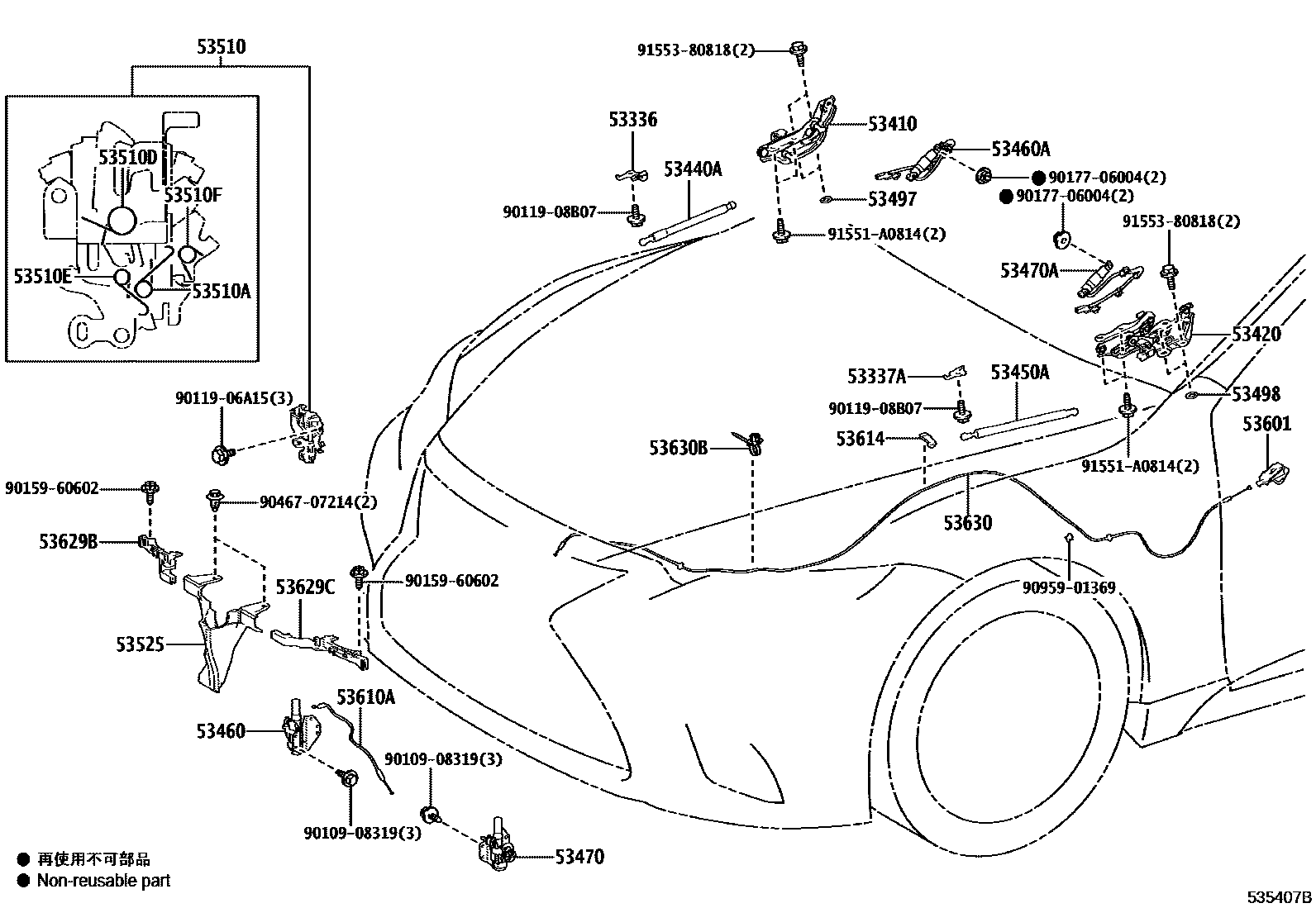

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337ABRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53460LIFTER ASSY, POP UP HOOD, RH
53460ALIFTER ASSY, POP UP HOOD, NO.2 RH
53470LIFTER ASSY, POP UP HOOD, LH
53470ALIFTER ASSY, POP UP HOOD, NO.2 LH
53497PAD, HOOD HINGE, NO.1
T=1.0
53498PAD, HOOD HINGE, NO.2
T=1.0
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.4
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.4
53510FSPRING, TENSION(FOR HOOD LOCK)
WD=1.4
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#,3#
BLACK
53610ACONTROL ASSY, HOOD LOCK
53614CLAMP, HOOD LOCK CONTROL CABLE
53629BCOVER, HOOD LOCK CONTROL CABLE, RH
53629CCOVER, HOOD LOCK CONTROL CABLE, LH
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9010908319
main90109-08319
9011906A15
main90119-06A15
9011908B07
main90119-08B07
9015960602
main90159-60602
9017706004
main90177-06004
9046707214
main90467-07214
9095901369
main90959-01369
91551A0814
main91551-A0814
9155380818
main91553-80818
34 parts on this diagram · 2 diagrams in section
