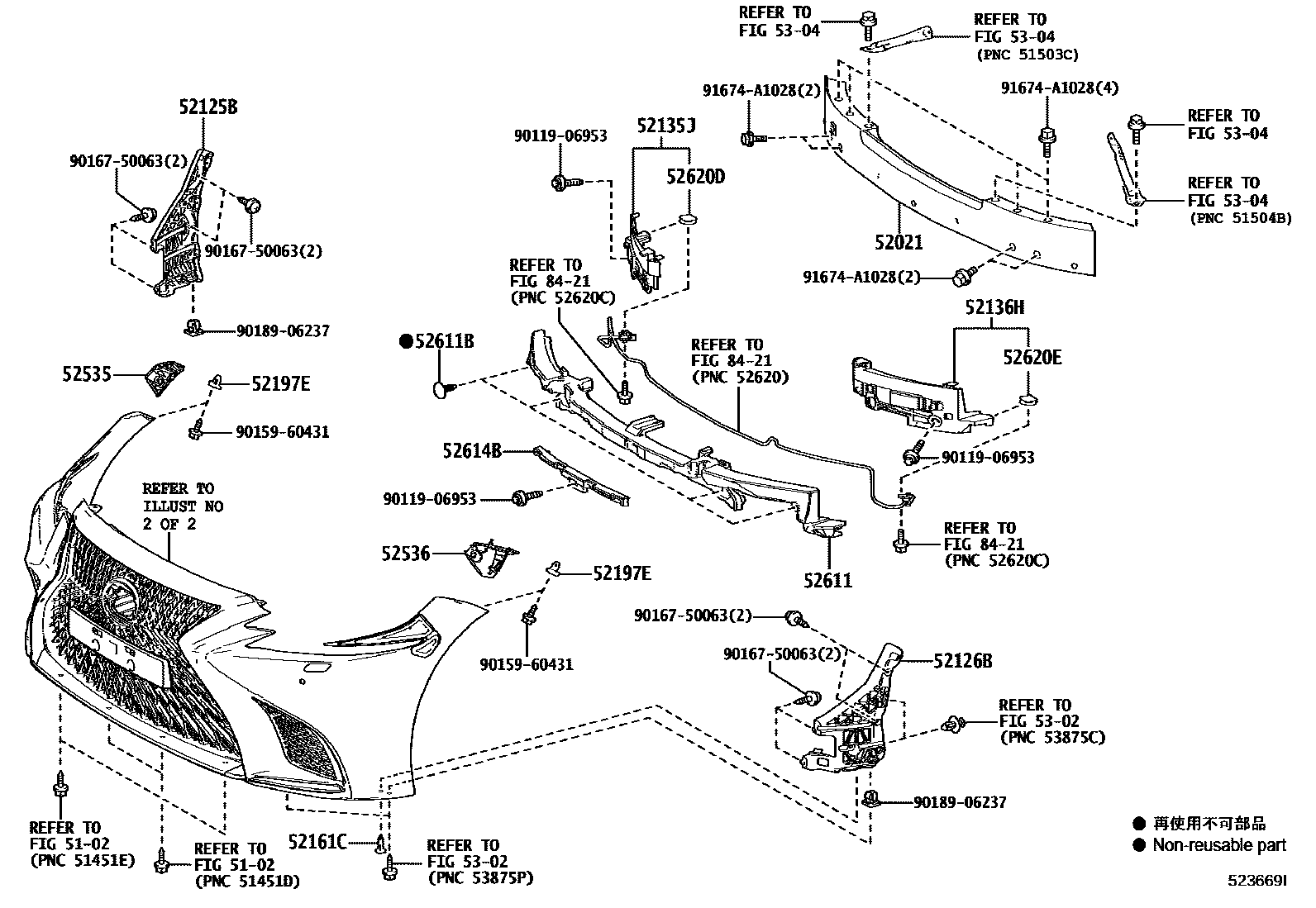

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT 0004 1F SPORT 0005 1 0006 1 0007 1F SPORT 0008 1F SPORT

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-50020iGSF50..GCC;GVF50,VXFA50201710-202509

52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH

main52125-50070iGSF50,GVF50,VXFA50201710-202010

main52125-50090iGSF50..GCC;GVF50,VXFA50202010-202509

52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH

main52126-50070iGSF50,GVF50,VXFA50201710-202010

main52126-50090iGSF50..GEN202010-202509

52135JREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, RH

main52135-50060iGSF50,GVF50,VXFA50201710-202010

main52135-50070iGSF50..GCC;GVF50,VXFA50202010-202509

52136HREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, LH

main52136-50030iGSF50,GVF50,VXFA50201710-202010

main52136-50040iGSF50..GCC;GVF50,VXFA50202010-202509

52161CPIECE, FRONT BUMPER

main52161-16010iGSF50..GEN201710-202509

sub52161-0K040

52197EBRACKET, FRONT BUMPER SEAL

main52197-30040iGSF50..GEN201710-202509

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-50100iGSF50,GVF50,VXFA50201710-202509

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-50090iGSF50,GVF50,VXFA50201710-202509

52611ABSORBER, FRONT BUMPER ENERGY

main52611-50140iGSF50,GVF50,VXFA50201710-202010

main52611-50190iGSF50..GEN202010-202509

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-07049-23iGSF50..GEN201710-202509

BLACK

sub90467-07049

52614BABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-50060iGSF50,GVF50,VXFA50201710-202509

52620DNUT, PEDESTRIAN DETECTION CHAMBER, RH

main90182-06009iGSF50..GCC;GVF50,VXFA50201710-202509

52620ENUT, PEDESTRIAN DETECTION CHAMBER, LH

main90182-06009iGSF50..GEN201710-202509

5302

5304

8421

9011906953

main90119-06953

9015960431

main90159-60431

9016750063

main90167-50063

9018906237

main90189-06237

91674A1028

main91674-A1028

23 parts on this diagram · 8 diagrams in section
