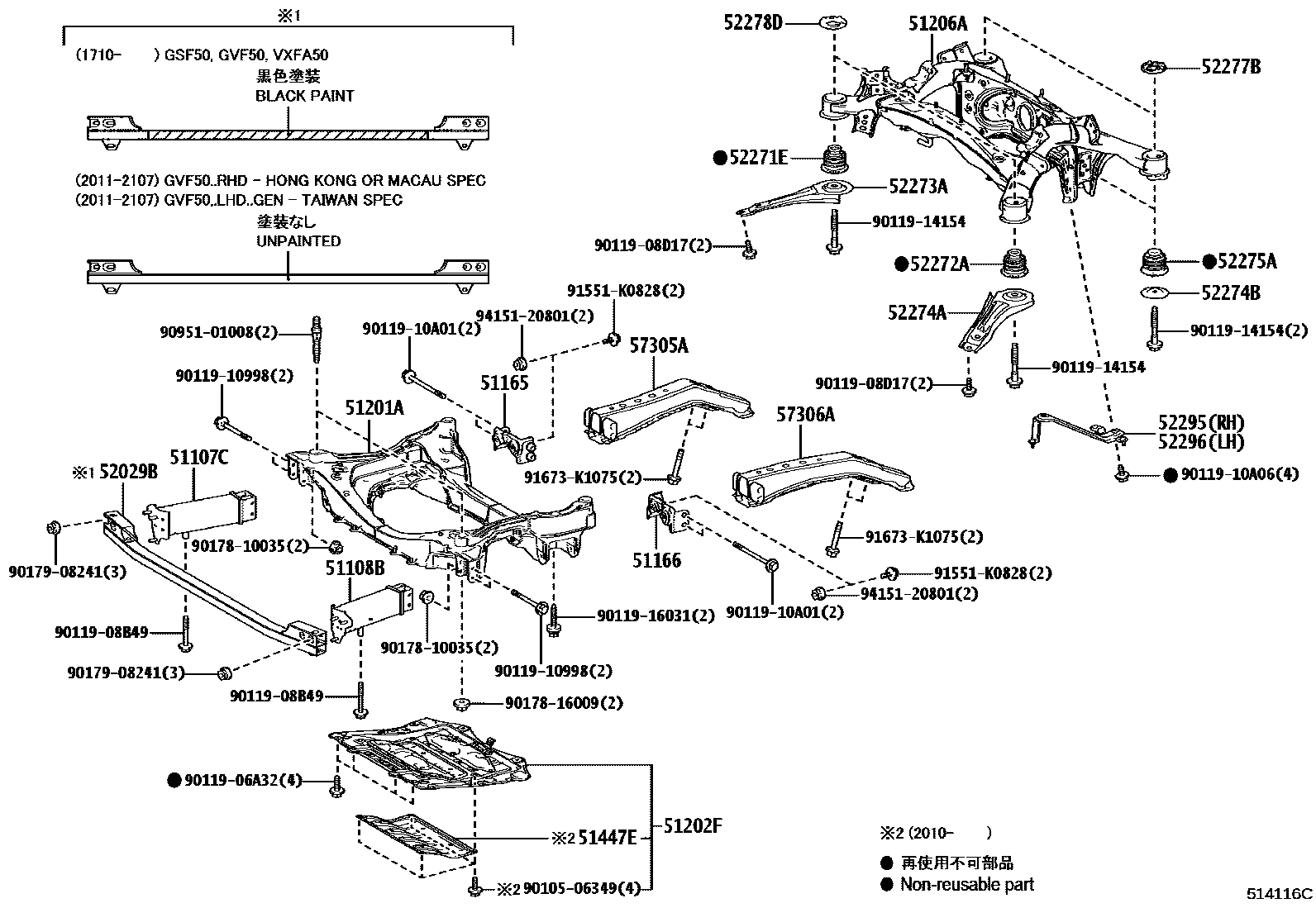

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51107CRAIL SUB-ASSY, REAR FRAME, RH

main51107-50030iGSF50,GVF50,VXFA50201710-202509

51108BRAIL SUB-ASSY, REAR FRAME, LH

main51108-50030iGSF50,GVF50,VXFA50201710-202509

51165REINFORCEMENT, SIDE RAIL, NO.2 RH

main51165-11010iGSF50,GVF50,VXFA50201710-202509

51166REINFORCEMENT, SIDE RAIL, NO.2 LH

main51166-11010iGSF50,GVF50,VXFA50201710-202509

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-11020iGSF50,GVF50,VXFA50201710-202509

51202FSUPPORT SUB-ASSY, STRUT BAR BRACKET

main51202-50020iGSF50,GVF50,VXFA50201710-202509

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50060iGSF50,GVF50,VXFA50201710-202509

51447EREINFORCEMENT, ENGINE UNDER COVER

main51447-50030iGSF50..GEN202010-202509

52029BREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-11010iGSF50,GVF50,VXFA50201710-202509

main52029-11010iGSF50,GVF50,VXFA50202010-202107

BLACK PAINT

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-11010iGSF50,GVF50,VXFA50201710-201908

main52271-50070iGSF50,GVF50,VXFA50201909-202509

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-11010iGSF50,GVF50,VXFA50201710-201908

main52272-50030iGSF50,GVF50,VXFA50201909-202509

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-11010iGSF50,GVF50,VXFA50201710-202210

main57075-50010iGSF50..GEN202210-202509

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-11010iGSF50,GVF50,VXFA50201710-202210

main57076-50010iGSF50..GEN202210-202509

52274BSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-50020iGSF50,GVF50,VXFA50201710-202509

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-11010iGSF50,GVF50,VXFA50201710-202509

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-11010iGSF50,GVF50,VXFA50201710-202509

52278DSTOPPER, REAR SUSPENSION MEMBER, FRONT UPPER

main52278-11010iGSF50,GVF50,VXFA50201710-201908

main52278-50050iGSF50,GVF50,VXFA50201909-202509

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-11010iGSF50,GVF50,VXFA50201710-202509

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-11010iGSF50,GVF50,VXFA50201710-202509

57305AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH

main57305-11010iGSF50,GVF50,VXFA50201710-202012

sub57305-30060

main57305-30060iGSF50..GEN202101-202509

57306AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH

main57306-11010iGSF50,GVF50,VXFA50201710-202012

sub57306-30080

main57306-30080iGSF50..GEN202101-202509

9010506349

main90105-06349

9011906A32

main90119-06A32

9011908B49

main90119-08B49

9011908D17

main90119-08D17

9011910998

main90119-10998

9011910A01

main90119-10A01

9011910A06

main90119-10A06

9011914154

main90119-14154

9011916031

main90119-16031

9017810035

main90178-10035

9017816009

main90178-16009

9017908241

main90179-08241

9095101008

main90951-01008

91551K0828

main91551-K0828

91673K1075

main91673-K1075

9415120801

main94151-20801

37 parts on this diagram · 2 diagrams in section
