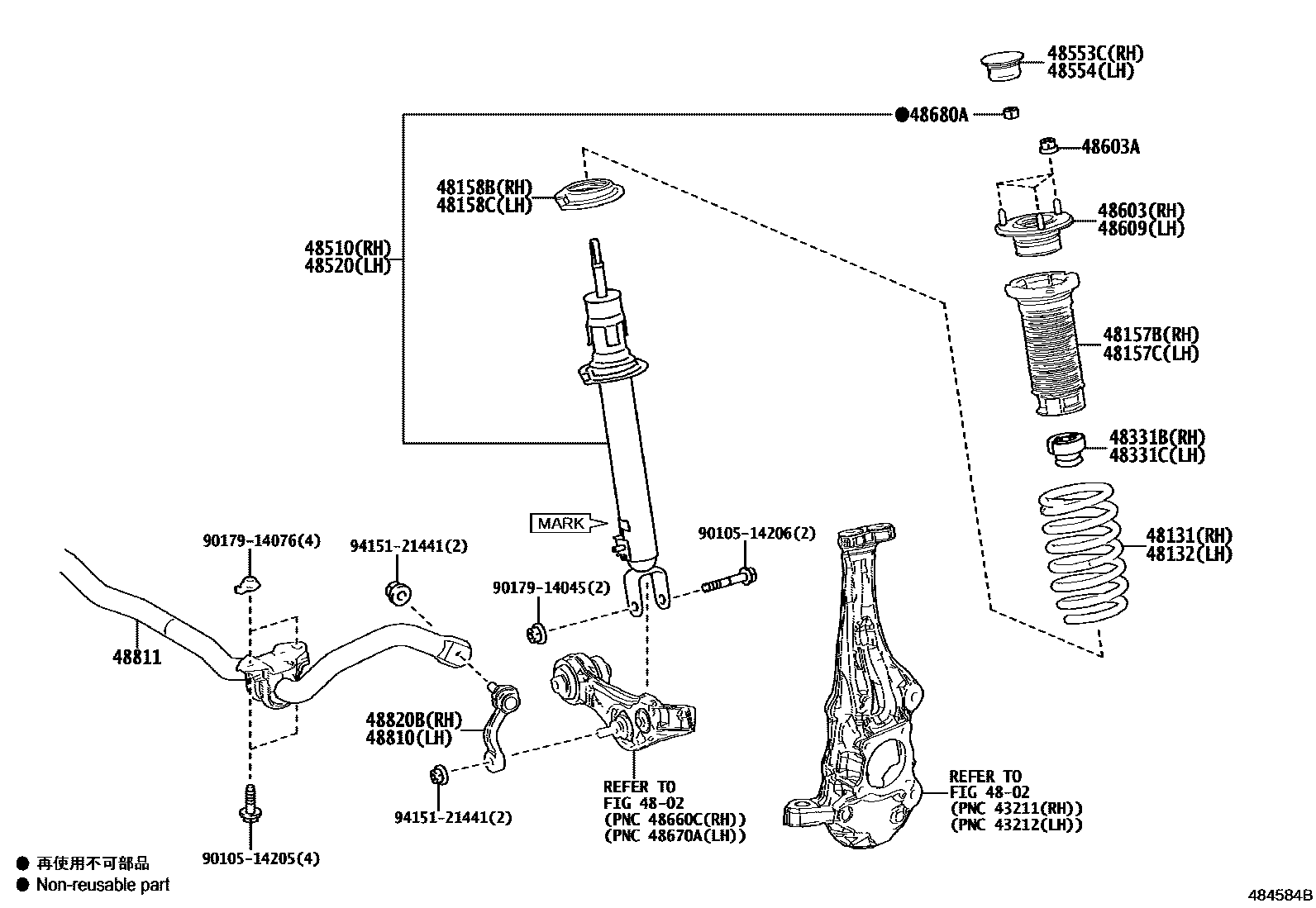

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
"I PACKAGE"*(I)
"VERSION L"*(L)
"F SPORT"*(F)
"EXECUTIVE"*(E)
"F SPORT"*(F)
"VERSION L"*(L)
"EXECUTIVE"*(E)
"I PACKAGE"*(I)
"EXECUTIVE"*(E)
"F SPORT"*(F)
"VERSION L"*(L)
48132SPRING, FRONT COIL, LH
"VERSION L"*(L)
"I PACKAGE"*(I)
"EXECUTIVE"*(E)
"F SPORT"*(F)
"EXECUTIVE"*(E)
"F SPORT"*(F)
"VERSION L"*(L)
"EXECUTIVE"*(E)
"F SPORT"*(F)
"VERSION L"*(L)
"I PACKAGE"*(I)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-50290
MARK 48510-50290,"EXECUTIVE"*(E)
MARK 48510-50290,"F SPORT"*(F)
MARK 48510-50290,"VERSION L"*(L)
MARK 48510-50270,"EXECUTIVE"*(E)
MARK 48510-50270,"F SPORT"*(F)
MARK 48510-50270,"VERSION L"*(L)
MARK 48510-50270
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-50050
MARK 48520-50050,"EXECUTIVE"*(E)
MARK 48520-50050,"F SPORT"*(F)
MARK 48520-50050,"VERSION L"*(L)
MARK 48520-50030
MARK 48520-50030,"VERSION L"*(L)
MARK 48520-50030,"F SPORT"*(F)
MARK 48520-50030,"EXECUTIVE"*(E)
48553CCAP, FRONT SHOCK ABSORBER, RH
48554CAP, FRONT SHOCK ABSORBER, LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820BLINK ASSY, FRONT STABILIZER, RH
9010514205
main90105-14205
9010514206
main90105-14206
9017914045
main90179-14045
9017914076
main90179-14076
9415121441
main94151-21441
25 parts on this diagram · 4 diagrams in section
