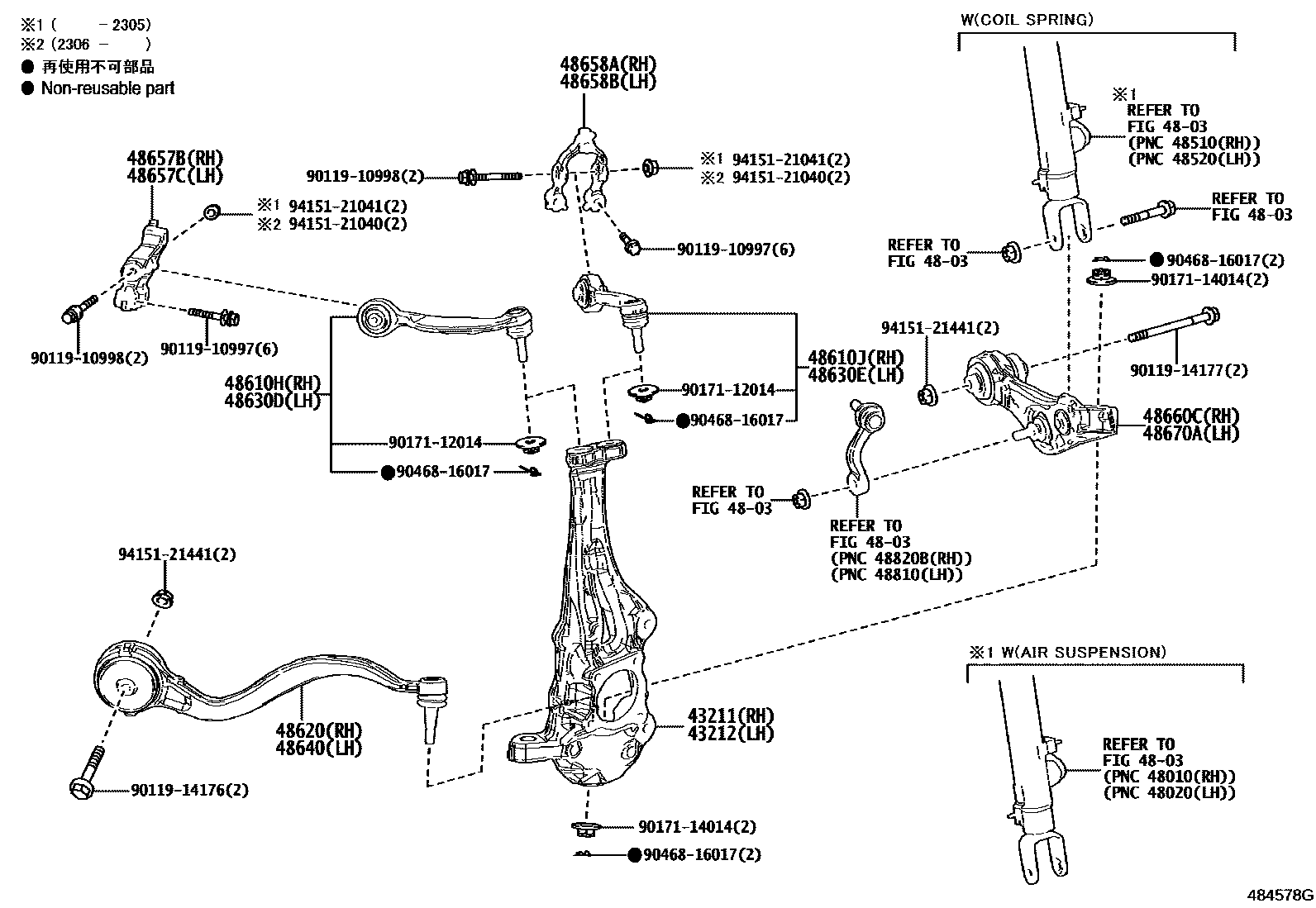

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-19005iGSF50,GVF50,VXFA50201710-202509

43212KNUCKLE, STEERING, LH

main43202-19005iGSF50,GVF50,VXFA50201710-202509

4803

48610HARM ASSY, FRONT SUSPENSION UPPER, NO.1 RH

main48610-19045iGSF50,GVF50,VXFA50201710-202509

48610JARM ASSY, FRONT SUSPENSION UPPER, NO.2 RH

main48610-19055iGSF50,GVF50,VXFA50201710-202509

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-11010iGSF50,GVF50,VXFA50201710-202010

main48620-11030iGSF50..GEN202010-202509

48630DARM ASSY, FRONT SUSPENSION UPPER, NO.1 LH

main48630-19045iGSF50,GVF50,VXFA50201710-202509

48630EARM ASSY, FRONT SUSPENSION UPPER, NO.2 LH

main48630-19055iGSF50,GVF50,VXFA50201710-202509

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-11010iGSF50,GVF50,VXFA50201710-202010

main48640-11030iGSF50..GEN202010-202509

48657BBRACKET, FRONT UPPER ARM, NO.1 RH

main48657-11010iGSF50,GVF50,VXFA50201710-202509

48657CBRACKET, FRONT UPPER ARM, NO.1 LH

main48657-11020iGSF50,GVF50,VXFA50201710-202509

48658ABRACKET, FRONT UPPER ARM, NO.2 RH

main48658-11010iGSF50,GVF50,VXFA50201710-202509

48658BBRACKET, FRONT UPPER ARM, NO.2 LH

main48658-11020iGSF50,GVF50,VXFA50201710-202509

48660CARM ASSY, SUSPENSION, LOWER NO.2 RH

main48620-50140iGSF50,GVF50,VXFA50201710-202009

sub48620-50170

main48620-50170iGSF50..GEN202010-202509

48670AARM ASSY, SUSPENSION, LOWER NO.2 LH

main48640-50140iGSF50,GVF50,VXFA50201710-202009

sub48640-50170

main48640-50170iGSF50..GEN202010-202509

9011910997

main90119-10997

9011910998

main90119-10998

9011914176

main90119-14176

9011914177

main90119-14177

9017112014

main90171-12014

9017114014

main90171-14014

9046816017

main90468-16017

9415121040

main94151-21040

9415121041

main94151-21041

9415121441

main94151-21441

25 parts on this diagram · 1 diagram in section
