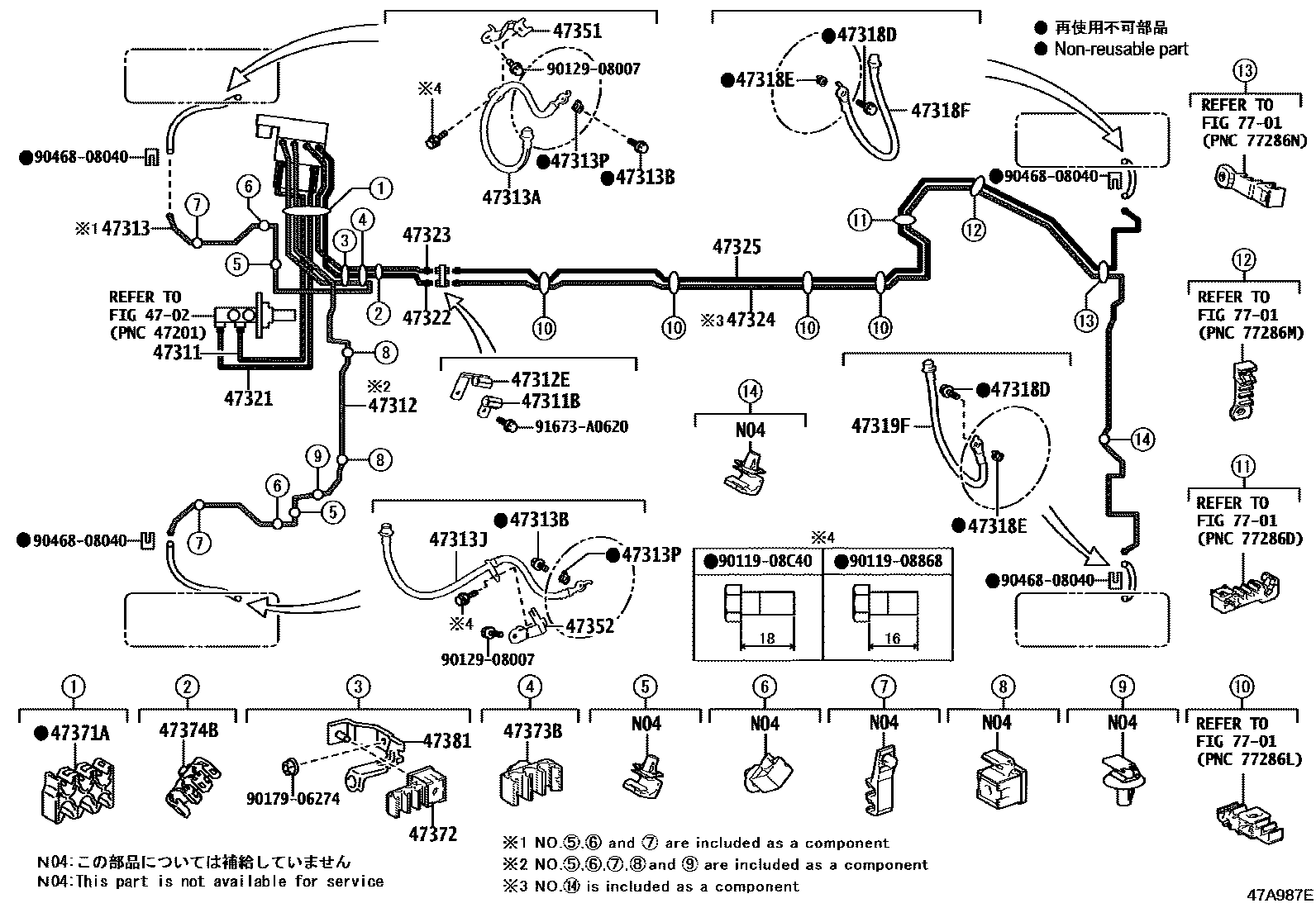

BRAKE TUBE & CLAMP

0001 1W(VACUUM BRAKE BOOSTER) 0002 1W(VACUUM BRAKE BOOSTER) 0003 1W/O(VACUUM BRAKE BOOSTER) 0004 1W/O(VACUUM BRAKE BOOSTER) 0005 1W/O(VACUUM BRAKE BOOSTER) 0006 1W(VACUUM BRAKE BOOSTER) 0007 1W/O(VACUUM BRAKE BOOSTER) 0008 1 0009 1 0010 1W/O(VACUUM BRAKE BOOSTER) 0012 1W/O(VACUUM BRAKE BOOSTER) 0013 1W(VACUUM BRAKE BOOSTER) 0014 1W(VACUUM BRAKE BOOSTER) 0015 1 0016 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-50100iGSF50,VXFA50..RHD201710-202509

main47311-50110iVXFA50..GCC201710-202310

main47311-50120iVXFA50..LHD202310

main47311-50131iGVF50..LHD202310

main47311-50140iGVF50..RHD202310

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10292iGSF50..GCC;GVF50,VXFA50201710-202509

47312TUBE, FRONT BRAKE, NO.2

main47312-50290iGSF50..GEN201710-202509

main47312-50300iGVF50..RHD201710-202310

main47312-50310iGSF50..LHD;VXFA50..LHD..GEN201710-202310

main47312-50330iVXFA50..GCC202010-202310

LEXUS SAFETY SYSTEM+A

main47312-50330iGVF50..LHD201710-202010

main47312-50400iVXFA50..LHD202310

main47312-50410iGVF50..RHD202310

main47312-50430iGVF50..LHD202310

main47312-50350iVXFA50..RHD202011-202310

LEXUS SAFETY SYSTEM+A

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10297iGSF50,GVF50,VXFA50201710-202509

47313TUBE, FRONT BRAKE, NO.3

main47313-50270iGSF50,VXFA50..RHD201710-202509

main47313-50290iVXFA50..RHD202011-202310

LEXUS SAFETY SYSTEM+A

main47313-50290iGVF50..RHD201710-202010

main47313-50310iGSF50..LHD;VXFA50..LHD..GEN201710-202310

main47313-50320iGVF50..LHD201710-202310

main47313-50390iGVF50..RHD202310

main47313-50400iVXFA50..LHD202310

main47313-50410iGVF50..LHD202310

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H60iGVF50;GSF50..GCC;VXFA50..GEN201710-202509

main90947-02H62iVXFA50..GCC201712-202010

main90947-02H62iGVF50..GCC202010

"F SPORT"*(F)

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iGSF50,GVF50,VXFA50201710-202509

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H61iGSF50..GEN201710-202509

main90947-02H67iVXFA50..GCC201712-202010

main90947-02H67iGVF50..GCC202010

"F SPORT"*(F)

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iGSF50,GVF50,VXFA50201710-202509

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iGSF50..GCC;GVF50,VXFA50201710-202509

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iGSF50,GVF50,VXFA50201710-202509

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H68iGSF50,GVF50,VXFA50201710-202509

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H68iGSF50,GVF50,VXFA50201710-202509

47321TUBE, REAR BRAKE, NO.1

main47321-50090iGSF50,VXFA50..RHD201710-202509

main47321-50100iVXFA50..LHD201710-202310

main47321-50110iGVF50..LHD202310

main47321-50120iVXFA50..LHD202310

main47321-62020iGVF50..RHD202310

47322TUBE, REAR BRAKE, NO.2

main47322-50320iGSF50,VXFA50..RHD201710-202509

main47322-50340iGVF50..RHD201710-202010

main47322-50340iVXFA50..RHD202011-202310

LEXUS SAFETY SYSTEM+A

main47322-50360iVXFA50..LHD201710-202310

main47322-50370iGVF50..LHD201710-202310

main47322-50400iGVF50..LHD202310

main47322-50410iGVF50..RHD202310

main47322-50440iVXFA50..LHD202310

47323TUBE, REAR BRAKE, NO.3

main47323-50180iVXFA50..RHD201710-202509

main47323-50200iVXFA50..RHD202011-202310

LEXUS SAFETY SYSTEM+A

main47323-50200iGVF50..RHD201710-202010

main47323-50220iVXFA50..LHD201710-202310

main47323-50230iGVF50..LHD201710-202310

main47323-50260iGVF50..LHD202310

main47323-50270iGVF50..RHD202310

main47323-50300iVXFA50..LHD202310

47324TUBE, REAR BRAKE, NO.4

main47324-50200iGSF50,GVF50,VXFA50201710-202509

47325TUBE, REAR BRAKE, NO.5

main47325-50160iGSF50..GCC;GVF50,VXFA50201710-202509

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-11040iGSF50,GVF50,VXFA50201710-202509

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-11020iGSF50..GEN201710-202509

47371ACLAMP, BRAKE TUBE, NO.1

main47371-11010iGVF50201710-202010

main47371-11010iVXFA50..RHD;VXFA50..GCC202010-202310

LEXUS SAFETY SYSTEM+A

main90949-01E56iGSF50;VXFA50..GEN201710-202509

47372CLAMP, BRAKE TUBE, NO.2

main47371-62020iGVF50..LHD202310

main47371-62040iGVF50..RHD202310

main90949-01D21iGSF50,GVF50,VXFA50..RHD201710-202509

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D41iGSF50,GVF50,VXFA50201710-202509

47374BCLAMP, BRAKE TUBE, NO.4

main47371-50220iGSF50..GCC;GVF50,VXFA50201710-202509

47381BRACKET, BRAKE TUBE CLAMP NO.1

main77281-11040iVXFA50..RHD201712-202010

7701

9011908868

main90119-08868

9011908C40

main90119-08C40

9012908007

main90129-08007

9017906274

main90179-06274

9046808040

main90468-08040

91673A0620

main91673-A0620

33 parts on this diagram · 15 diagrams in section
