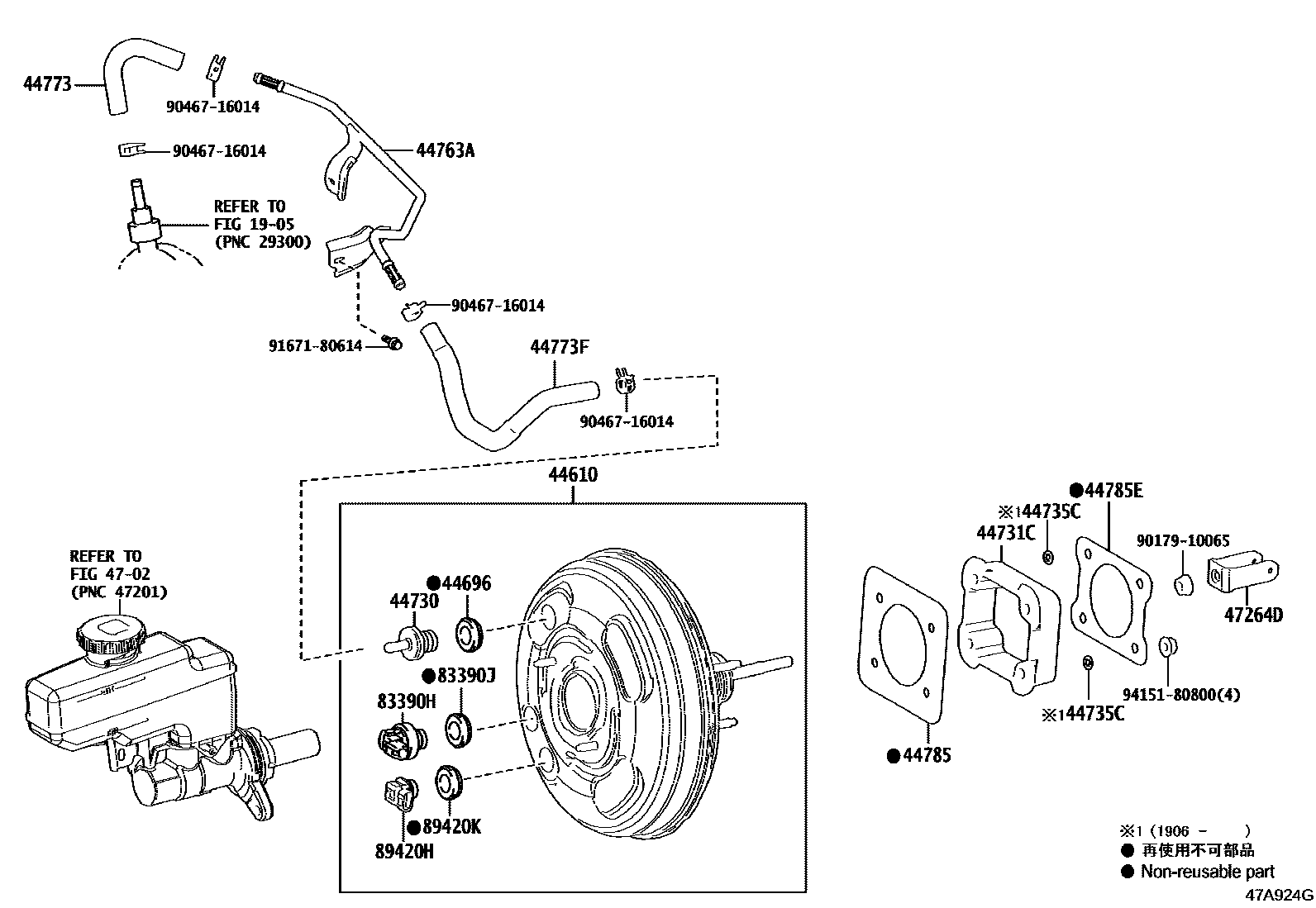

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE
"F SPORT"*(F)
"F SPORT"*(F)
"F SPORT"*(F)
"F SPORT"*(F)
"F SPORT"*(F)
"F SPORT"*(F)
"F SPORT"*(F)
"F SPORT"*(F)
44696GROMMET, CHECK VALVE
"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE
44731CBRACKET, BRAKE BOOSTER
"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE
44735CRING, BOOSTER BRACKET STOPPER
"F SPORT"*(F)
44763ATUBE, HOSE TO HOSE, NO.1
"F SPORT"*(F)
44773HOSE, VACUUM, NO.2
"F SPORT"*(F)
44773FHOSE, UNION TO CHECK VALVE
"F SPORT"*(F)
44785GASKET, BRAKE BOOSTER
"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE
44785EGASKET, BRAKE BOOSTER, NO.2
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE
83390HSWITCH ASSY, VACUUM WARNING
83390JGROMMET, VACUUM WARNING SWITCH
89420HSENSOR ASSY, VACUUM
"F SPORT"*(F)
PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A
LEXUS SAFETY SYSTEM+A
89420KGROMMET, VACUUM SENSOR
"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE
9017910065
main90179-10065
9046716014
main90467-16014
9167180614
main91671-80614
9415180800
main94151-80800
21 parts on this diagram · 4 diagrams in section
