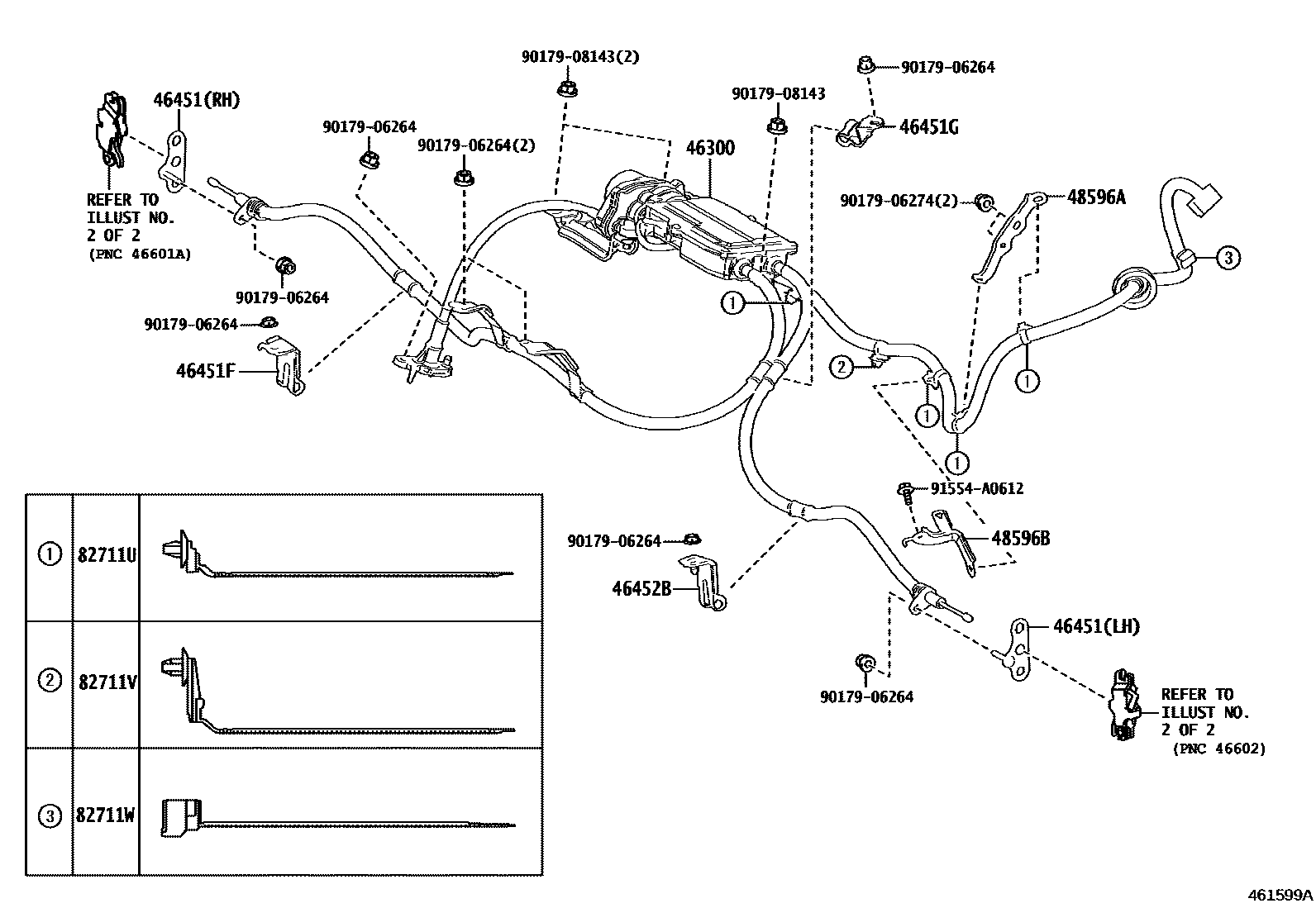

PARKING BRAKE & CABLE

0001 1 0002 1

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-11010iGSF50,GVF50,VXFA50¥64,700201710-202309

sub46300-11011¥58,800

sub46451-11050¥470

sub46451-11060¥470

main46300-11011iGSF50..GEN¥58,800202309-202509

46451BRACKET, CABLE SUPPORT

main46451-30270iGSF50..GEN¥280201710-202509

RH

main46451-30280iGSF50..GEN¥280201710-202509

LH

46451FBRACKET, CABLE SUPPORT

main46451-11060iGSF50..GCC;GVF50,VXFA50¥470202309-202509

main46451-11070iGSF50,GVF50,VXFA50¥470201710-202309

46451GBRACKET, CABLE SUPPORT

main46451-11030iGSF50,GVF50,VXFA50¥360201710-202509

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-11040iGSF50,GVF50,VXFA50¥470201710-202309

main46451-11050iGSF50..GEN¥470202309-202509

48596ACLAMP, ACTUATOR HARNESS, NO.1

main48596-11020iGSF50,GVF50,VXFA50¥250201710-202509

48596BCLAMP, ACTUATOR HARNESS, NO.2

main48596-11010iGSF50,GVF50,VXFA50¥270201710-202509

82711UCLAMP, WIRING HARNESS, NO.1

main82711-16830iGSF50,GVF50,VXFA50¥100201710-202509

82711VCLAMP, WIRING HARNESS, NO.2

main82711-3F400iGSF50,GVF50,VXFA50¥130201710-202509

82711WCLAMP, WIRING HARNESS, NO.3

main82711-3F240iGSF50,GVF50,VXFA50¥190201710-202509

9017906264

main90179-06264¥100

9017906274

main90179-06274¥70

9017908143

main90179-08143¥110

91554A0612

main91554-A0612¥60

14 parts on this diagram · 2 diagrams in section
