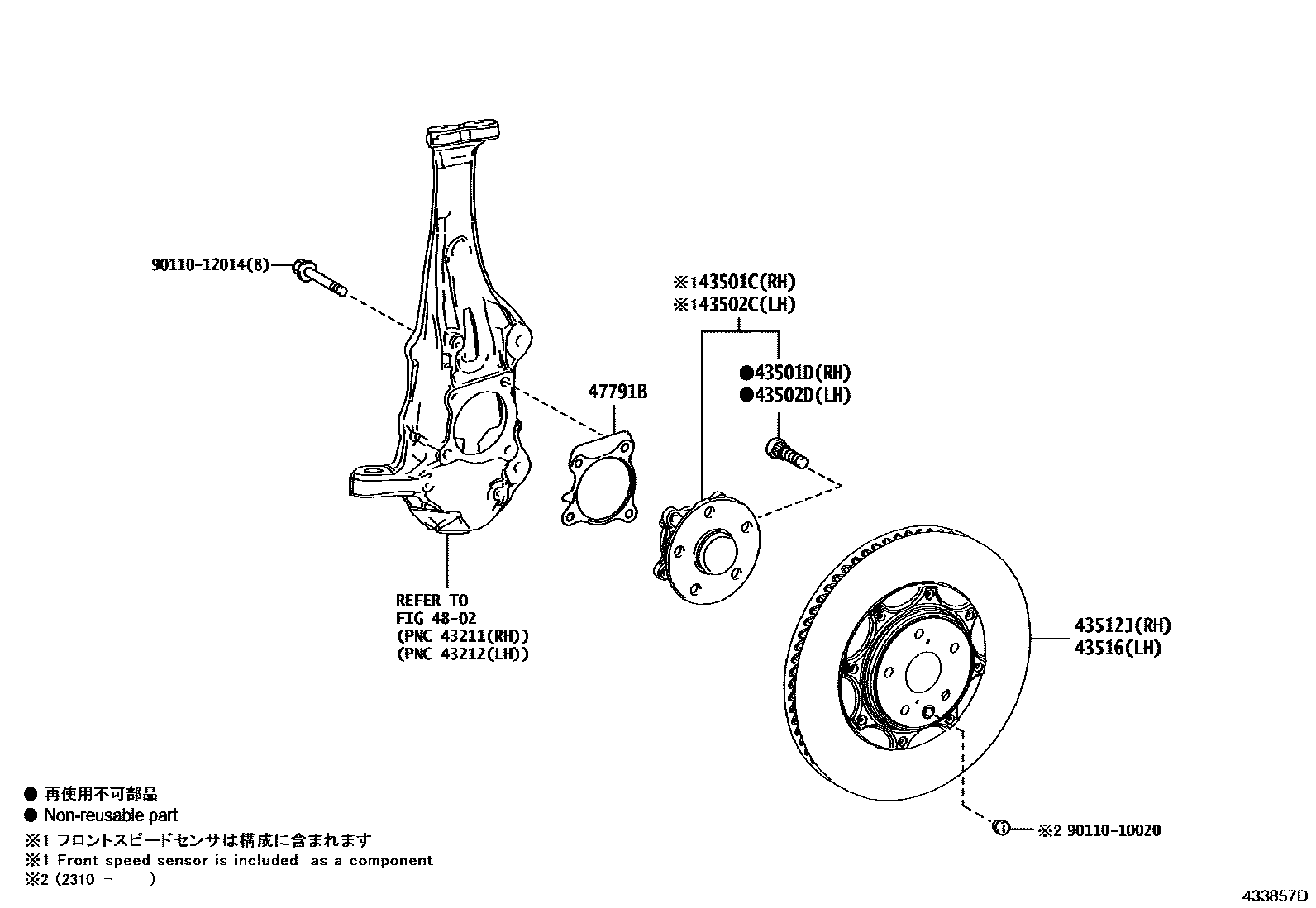

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-11020iGSF50,GVF50,VXFA50201710-202010

main43550-11040iGSF50..GCC202310

main43550-50100iGSF50..GEN202310-202509

main43550-62020iGSF50,GVF50,VXFA50..CHI,GEN202011-202310

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×5iGSF50,GVF50,VXFA50201710-202010

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-11020iGSF50,GVF50,VXFA50201710-202010

main43550-11040iGSF50..GCC202310

main43560-50040iGSF50..GEN202310-202509

main43560-62020iGSF50,GVF50,VXFA50..CHI,GEN202011-202310

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×5iGSF50,GVF50,VXFA50201710-202010

43512JDISC, FRONT RH

main43512-11010iVXFA50..GCC202010-202310

"F SPORT"*(F)

main43512-11030iVXFA50..GCC202310-202403

"F SPORT"*(F)

main43512-11031iVXFA50..GCC202404

"F SPORT"*(F)

main43512-50250iGSF50,GVF50;VXFA50..GEN202010-202310

main43512-50260iGVF50;GSF50..GCC;VXFA50..GEN202310

43516DISC, FRONT LH

main43516-11010iVXFA50..GCC201712-202010

main43516-11030iVXFA50..GCC202310-202403

"F SPORT"*(F)

main43516-11031iVXFA50..GCC202404

"F SPORT"*(F)

main43516-50010iGSF50,GVF50,VXFA50..CHI,GEN201710-202010

main43516-50020iGSF50..GEN202310-202509

47791BPLATE, DISC BRAKE AIR GUIDE

main47791-11010×2iGSF50,GVF50,VXFA50201710-202010

4802

9011010020

main90110-10020

9011012014

main90110-12014

10 parts on this diagram · 1 diagram in section
