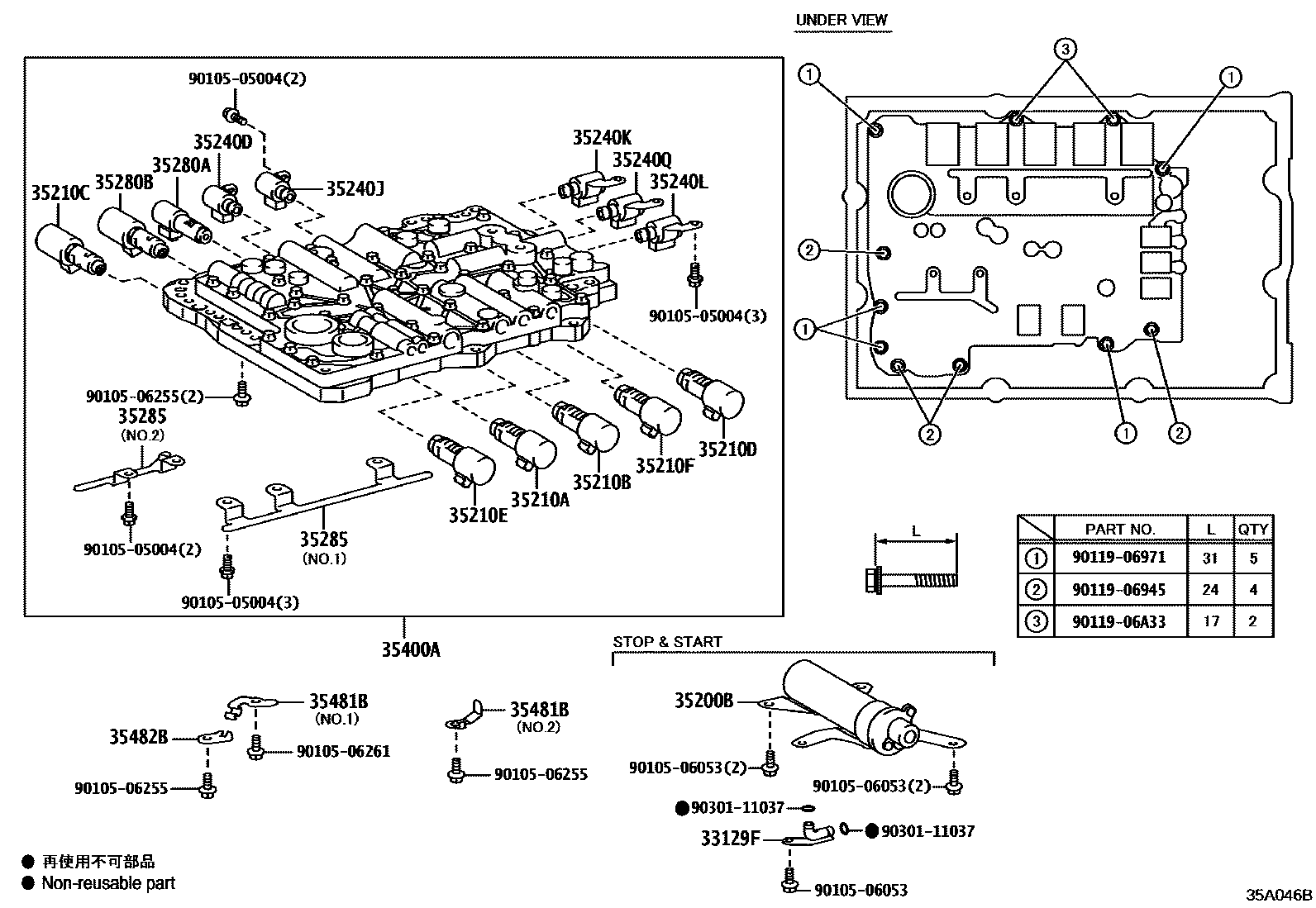

VALVE BODY & OIL STRAINER (ATM)
33129FPIPE, TRANSMISSION OIL
35200BACCUMULATOR ASSY, TRANSMISSION ACTUATOR, W/SOLENOID
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240DVALVE, SOLENOID(SL)
35240JVALVE, SOLENOID(SR)
35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)
35240LSOLENOID ASSY, TRANSMISSION 3WAY(SC2)
35240QSOLENOID ASSY, TRANSMISSION 3WAY(SC3)
35280BVALVE, SOLENOID(SLT)
35285PLATE, SOLENOID LOCK
NO.1
NO.2
35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID
35481BCLAMP, VALVE BODY WIRE HARNESS
NO.1
NO.2
35482BCLAMP, TEMPERATURE SENSOR
9010505004
main90105-05004
9010506053
main90105-06053
9010506255
main90105-06255
9010506261
main90105-06261
9011906945
main90119-06945
9011906971
main90119-06971
9011906A33
main90119-06A33
9030111037
main90301-11037
27 parts on this diagram · 2 diagrams in section
