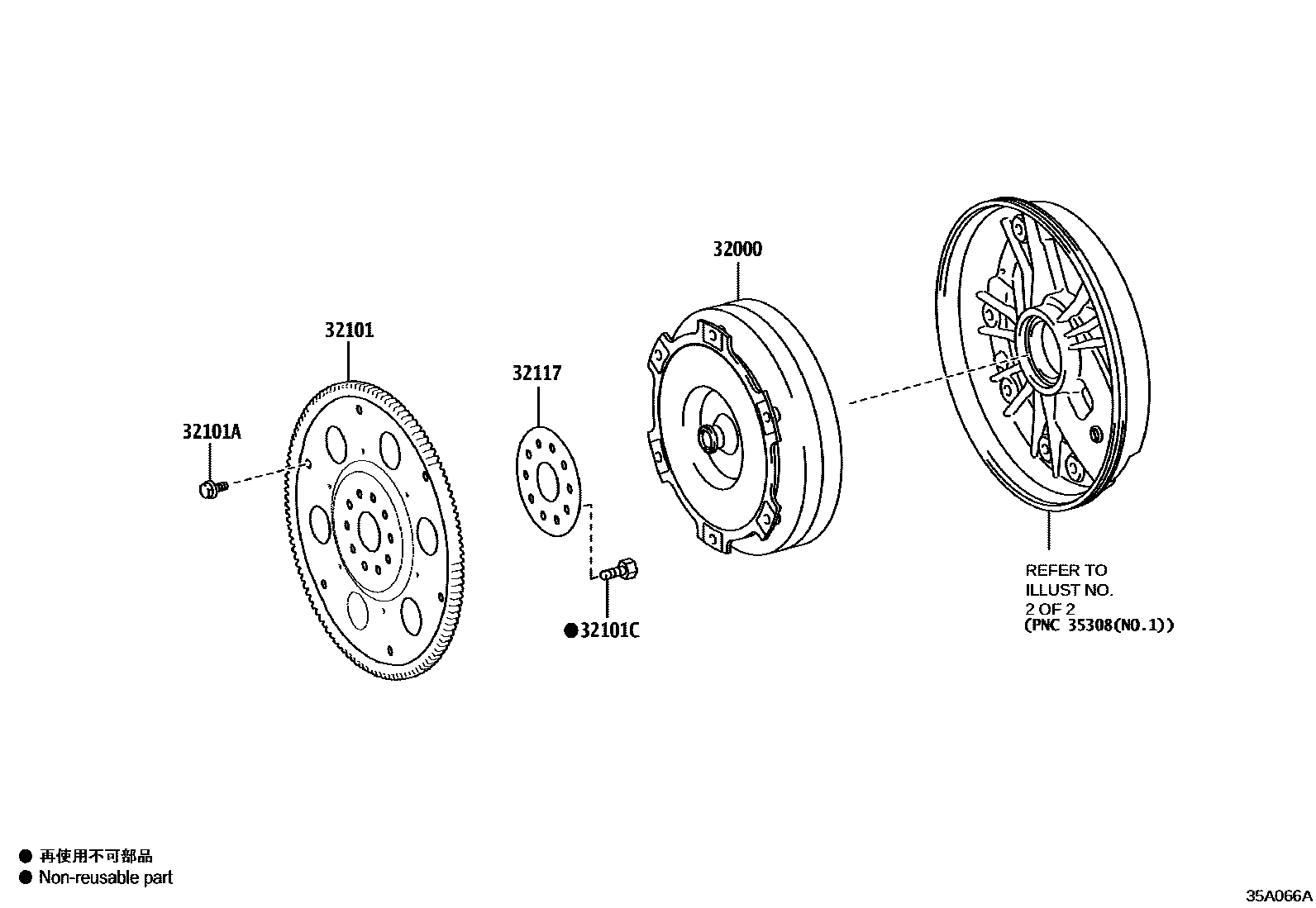

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AGA0E 0002 1AGA0E

32000CONVERTER ASSY, TORQUE

main32000-50060iVXFA50¥149,000201712-202010

main32000-50070iGSF50..GEN201710-202509

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-50030iVXFA50¥14,400201712-202010

main32101-50040iGSF50..GCC201710-202509

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-09005iGSF50¥80201710-202509

*9-1.25PX11-8,BLACK

main90105-09006iGSF50¥80201710-202509

*9-1.25PX11-8.5,SILVER WHITE

main90105-10595iVXFA50¥100201712-202010

*10-1.5PX14.8-6.2,BLACK

main90105-10596iVXFA50¥100201712-202010

*10-1.5PX14.8-6.5,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iGSF50..GCC¥130201710-202509

*10-1.25PX18-13

main90910-02129iVXFA50¥110202010-202104

*10-1.25PX23-16

main90910-02129iVXFA50¥110201712-202010

*10-1.25PX23-16,(J)

main90910-A2002iVXFA50201712-202010

*10-1.25PX23-16,(L)

32117SPACER, DRIVE PLATE, REAR

main32117-30030iGSF50..GEN¥930201710-202509

main32117-50020iVXFA50¥1,040201712-202010

5 parts on this diagram · 2 diagrams in section
