VACUUM PIPING

0001 1 0002 1 0003 1W(ON BOARD DIAGNOSIS) 0005 1 0006 1

1701

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31320i8GRFXS..GVF50..LHD..GEN202310

NO.1

main23826-31330i8GRFXS..GVF50..LHD..GEN201710-202509

NO.1

main23826-31440i8GRFKS..GSF50..GEN201710-202509

NO.2

main23826-31450i8GRFXS..GVF50201710-202310

NO.2

main23826-31520i8GRFXS..GVF50..LHD..GEN202310

NO.2

main23826-70070iV35AFTS..VXFA50201712-202010

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main44753-50300i8GRFXS..GVF50..LHD..GEN202310

main77196-50030i8GRFXS..GVF50..LHD..GEN201710-202509

main96138-51701iV35AFTS..VXFA50201712-202010

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96133-41301i8GRFXS..GVF50..LHD..GEN201710-202509

main96136-41901i8GRFXS..GVF50..LHD..GEN202310

23841GCLAMP, FUEL HOSE

main23841-31180i8GRFXS..GVF50..LHD..GEN202310

main23841-31190i8GR#..GSF50,GVF50201710-202509

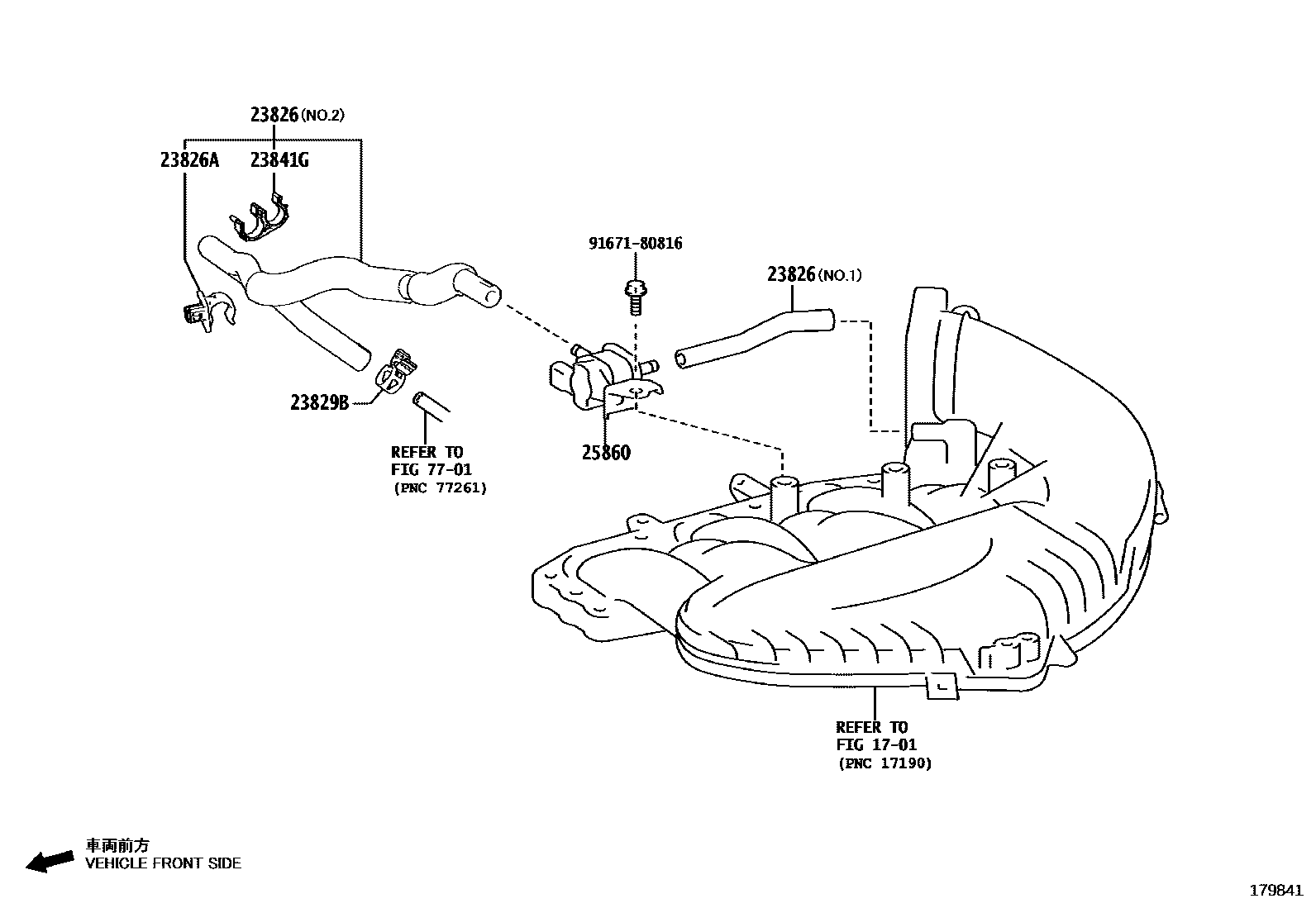

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31090i8GR#..GSF50,GVF50201710-202509

main25860-31110i8GRFXS..GVF50..LHD..GEN202310

7701

9167180816

main91671-80816

8 parts on this diagram · 5 diagrams in section
