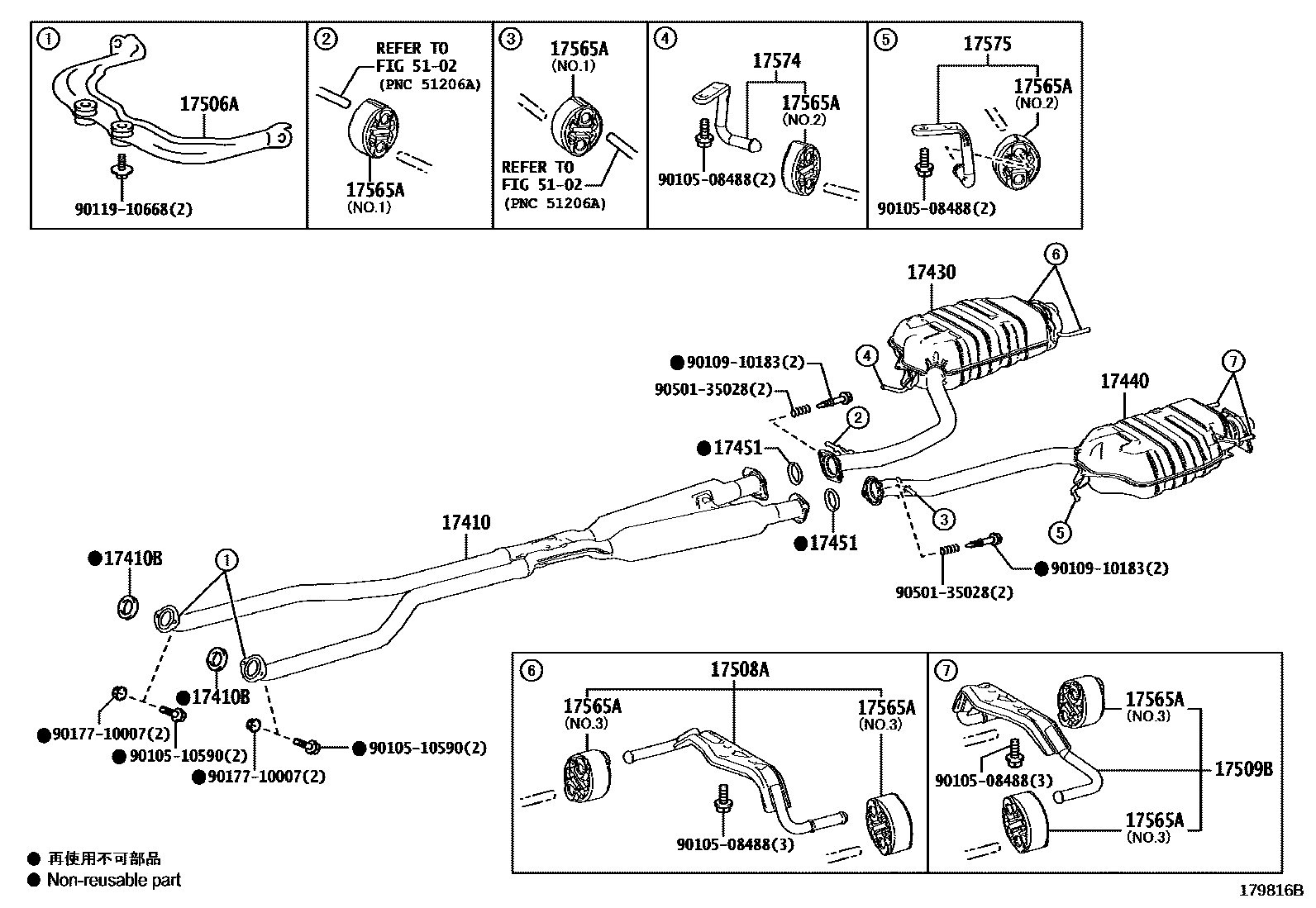

EXHAUST PIPE
17410BGASKET, EXHAUST PIPE
17451GASKET, EXHAUST PIPE
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509BSUPPORT, EXHAUST PIPE NO.4
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
NO.1:REFER ILLUST.
NO.3:REFER ILLUST.
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102
9010508488
main90105-08488
9010510590
main90105-10590
9010910183
main90109-10183
9011910668
main90119-10668
9017710007
main90177-10007
9050135028
main90501-35028
18 parts on this diagram · 3 diagrams in section
