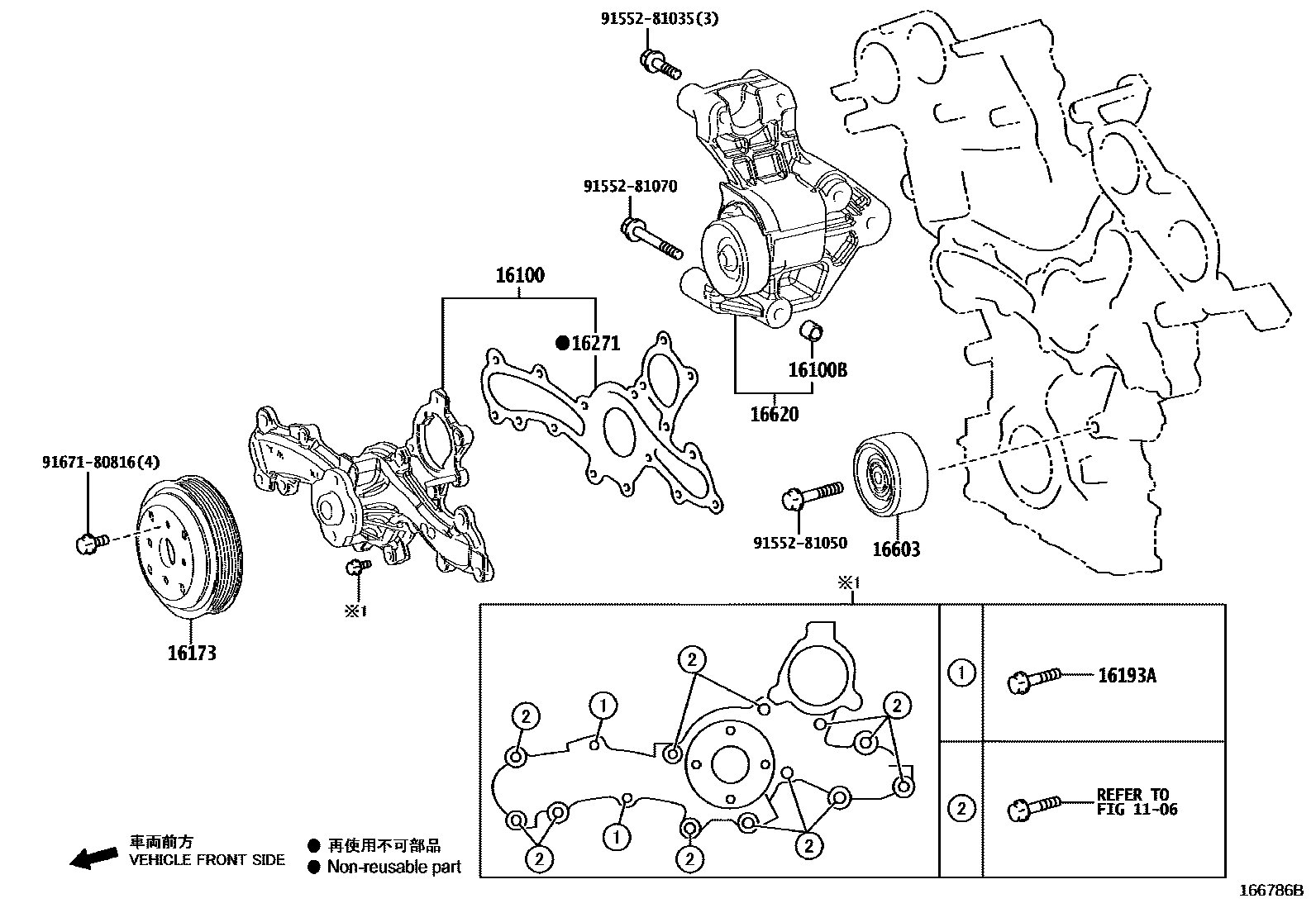

WATER PUMP

0001 1 0002 1 0003 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39615i8GR#..GSF50,GVF50201710-202004

sub16100-39616

main16100-39616i8GRFXS..GVF50;8GRFKS..GSF50..GCC202004-202509

main16100-79505iV35AFTS..VXFA50201712-202010

16100BPIN, RING(FOR WATER PUMP SET)

main90253-13017i8GRFKS..GSF50201710-202509

16173PULLEY, WATER PUMP

main16173-31030i8GRFKS..GSF50201710-202003

sub16173-31031

main16173-31031i8GRFKS..GSF50..GEN202004-202509

main16173-31040i8GRFXS..GVF50201710-202003

sub16173-31041

main16173-31041i8GRFXS..GVF50202004-202012

sub16173-31042

main16173-31042i8GRFXS..GVF50202101

main16173-70020iV35AFTS..VXFA50201712-202002

sub16173-70021

main16173-70021iV35AFTS..VXFA50202003-202010

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i8GR#..GSF50,GVF50201710-202509

16271GASKET, WATER PUMP

main16271-31050i8GRFXS..GVF50;8GRFKS..GSF50..GCC201710-202509

main16271-70010iV35AFTS..VXFA50201712-202010

NO.1:REFER ILLUST.

main16271-70020iV35AFTS..VXFA50201712-202010

NO.2:REFER ILLUST.

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31050i8GRFKS..GSF50..GCC201710-202509

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31110i8GRFKS..GSF50201710-202509

main16620-70020iV35AFTS..VXFA50201712-202010

9155281035

main91552-81035

9155281050

main91552-81050

9155281070

main91552-81070

9167180816

main91671-80816

12 parts on this diagram · 3 diagrams in section
