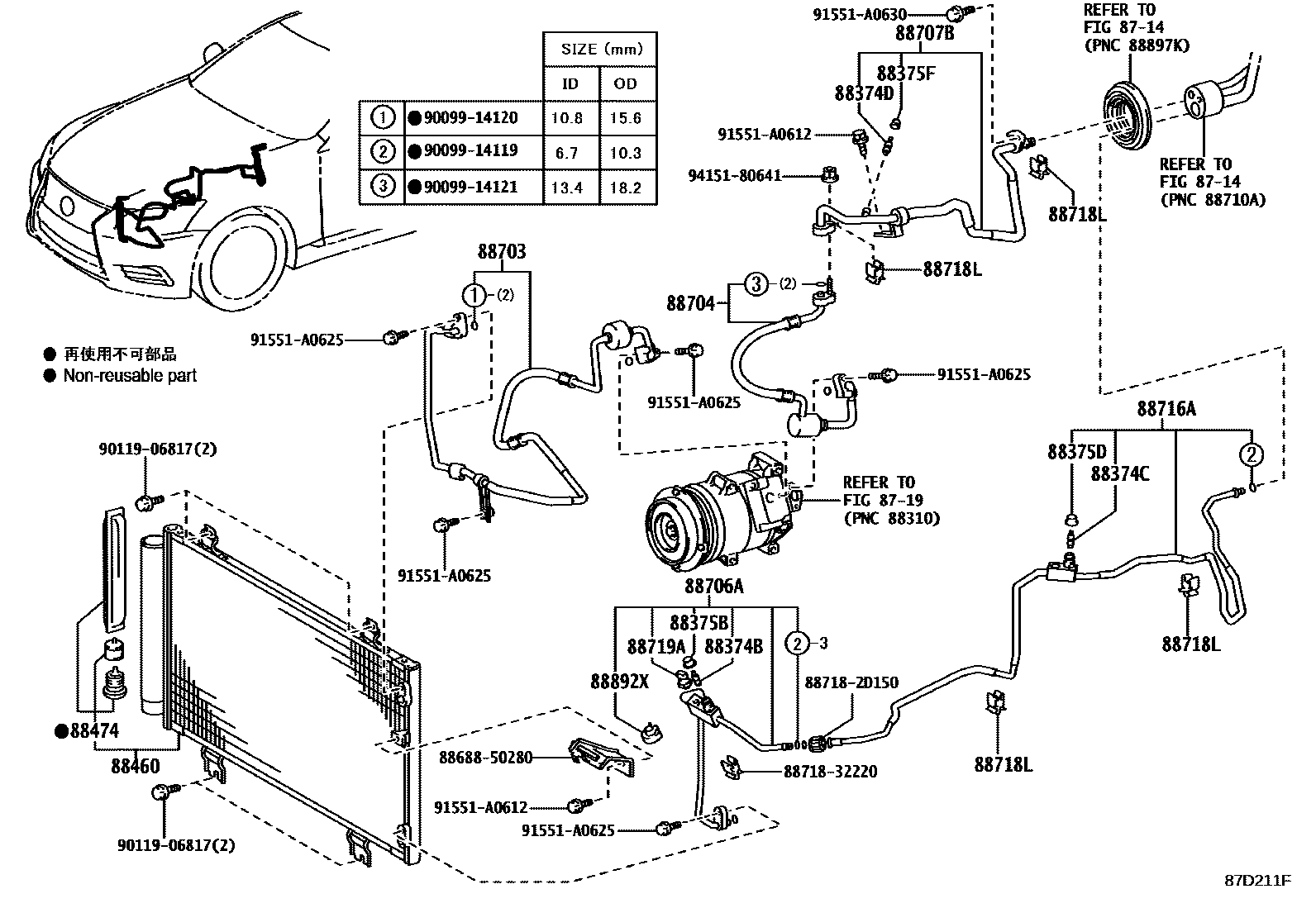

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT---W(REAR COOLER) 0003 1FRONT 0004 1FRONT---W(REAR COOLER) 0005 1FRONT 0006 1FRONT---W(REAR COOLER) 0007 1REAR 0008 1REAR 0009 1REAR

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iUSF45201209-201708

main88374-30010iUSF45201212-201304

VERSION L

88374CVALVE, SERVICE, NO.2

main88374-30010iUSF4#201209-201708

88374DVALVE, SERVICE NO.3

main88374-30010iUSF4#201209-201708

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iUSF45201212-201304

VERSION L

main88375-30280iUSF45201209-201708

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iUSF4#201209-201708

88375FCAP, SERVICE VALVE, NO.3

main88375-30290iUSF4#201209-201708

88460CONDENSER ASSY, COOLER

main88460-50201iUSF40,41..CHI,EUR201209-201708

main88460-50220iUSF40,41..GCC201209-201708

main88460-50240iUSF45,46201209-201708

88474DRYER, COOLER

main88474-17010iUSF4#201209

88703HOSE SUB-ASSY, DISCHARGE

main88703-50010iUSF40,41..CHI,EUR201209

main88703-50020iUSF40,41..GCC201209

main88703-50050iUSF45,46201209

88704HOSE SUB-ASSY, SUCTION

main88704-50030iUSF45,46201209

main88704-50050iUSF40,41201209

88706ATUBE SUB-ASSY, LIQUID, A

main88706-50010iUSF40,41..CHI,EUR201209

main88706-50020iUSF40,41..GCC201209

main88706-50050iUSF45201211-201303

VERSION L

main88706-50050iUSF45201209-201303

main88706-50051iUSF45201212

88707BTUBE SUB-ASSY, SUCTION, B

main88707-50010iUSF41..LHD..D4..EUR201209

main88707-50020iUSF41..LHD..D4..EUR201209

VERSION L

main88707-50020iUSF41..LHD..D4..EUR201209-201309

main88707-50020iUSF41..LHD..D4..EUR201309

EXECUTIVE PACKAGE(4SEAT)

main88707-50020iUSF41..LHD..D4..EUR201309

EXECUTIVE PACKAGE(5SEAT)

main88707-50030iUSF45201209

VERSION L

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-50530iUSF41..LHD..D4..EUR201209

main88716-50540iUSF41..LHD..D4..EUR201309

EXECUTIVE PACKAGE(4SEAT)

main88716-50540iUSF41..LHD..D4..EUR201209

VERSION L

main88716-50540iUSF41..LHD..D4..EUR201309

EXECUTIVE PACKAGE(5SEAT)

main88716-50540iUSF41..LHD..D4..EUR201209-201309

main88716-50590iUSF40,41..GCC201209

main88716-50600iUSF46201209

VERSION L

88718LCLAMP, PIPING

main88718-32220iUSF40,41..GCC201209-201309

main88718-50390iUSF40,41..GCC201309-201405

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iUSF45201209-201212

main88719-33020iUSF45201212-201304

VERSION L

88892XCOVER, COOLER, NO.2

main88892-50120iUSF40,41201209

8868850280BRACKET, COOLER DIAPHRAGM

main88688-50280

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

29 parts on this diagram · 9 diagrams in section
