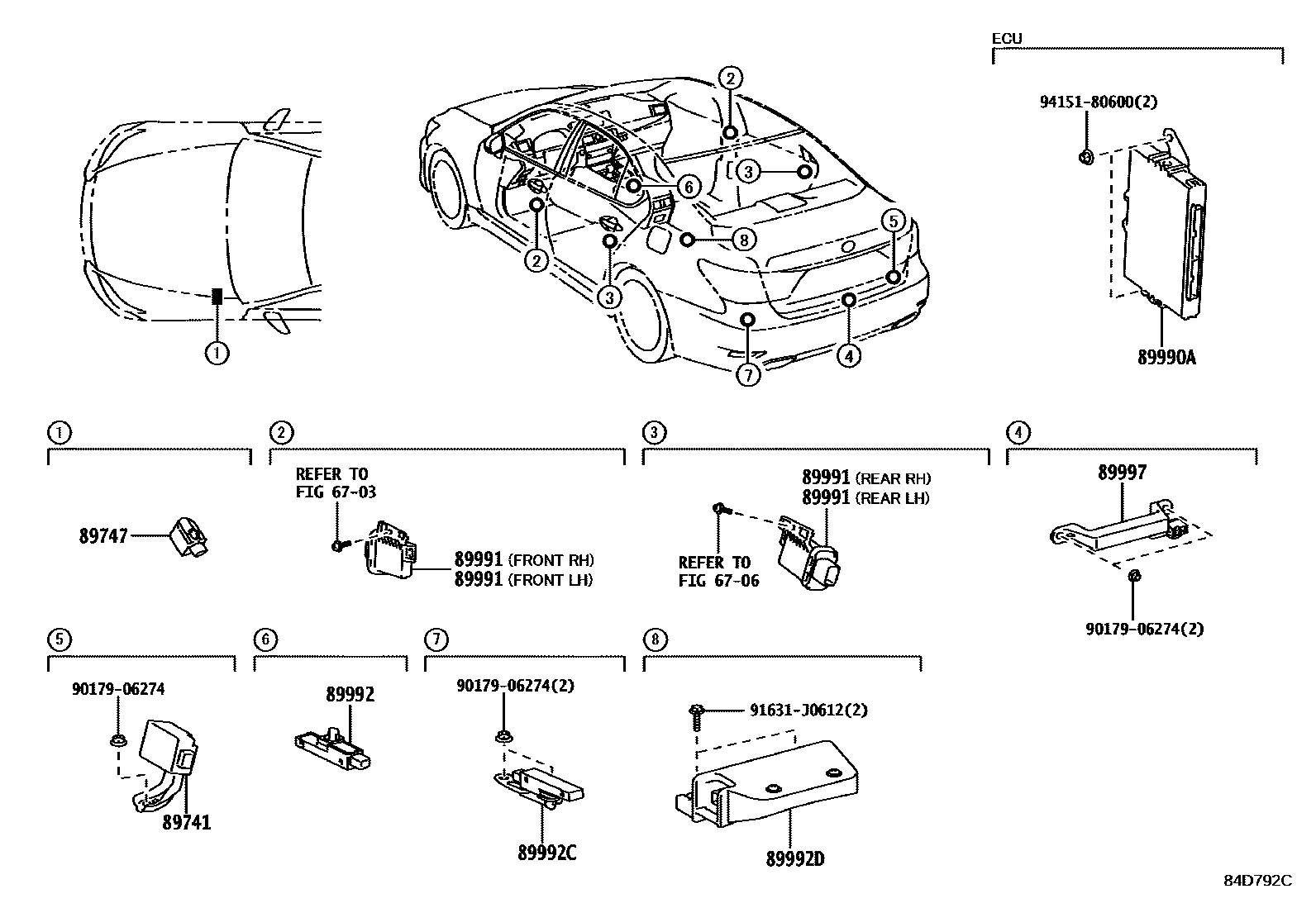

WIRELESS DOOR LOCK

0001 1 0002 1

6703

6706

89741RECEIVER, DOOR CONTROL

main89740-50191iUSF41..GCC;USF41..RHD;USF40,45,46..EUR,GCC201209-201505

PHILIPPINES,VIETNAM SPEC

main89740-50192supersedes 89740-50180iUSF41..GCC;USF41..RHD;USF40,45,46..EUR,GCC201506

PHILIPPINES,VIETNAM SPEC

main89740-50210iUSF40,41..RHD201209

HONGKONG,MACAO SPEC

main89740-50220iUSF40..LHD..EUR201209-201608

LATIN AMERICA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)

main89740-50221iUSF40..LHD..EUR201609

LATIN AMERICA SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)

sub89740-50222

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iUSF4#201209

89990ACOMPUTER ASSY, SMART KEY

main89990-50060supersedes 89990-50050iUSF40..RHD201209-201309

AUSTRALIA,NEW ZEALAND SPEC

main89990-50070iUSF41..CHI;USF40,45,46..LHD..(CHI,EUR)201209-201309

main89990-50080iUSF40,45..LHD..EUR201209-201309

LATIN AMERICA SPEC

sub89990-50081

main89990-50280iUSF41..CHI;USF40,45,46..LHD..(CHI,EUR)201309-201410

main89990-50290iUSF40,45..LHD..EUR201309-201410

LATIN AMERICA SPEC

sub89990-50291

main89990-50330iUSF41..CHI;USF40,45,46..LHD..(CHI,EUR)201410-201508

main89990-50340iUSF40..LHD..EUR201410-201508

LATIN AMERICA SPEC

main89990-50420iUSF41..CHI;USF40,45,46..LHD..(CHI,EUR)201509-201512

main89990-50430iUSF40,45..LHD..EUR201509-201512

LATIN AMERICA SPEC

sub89990-50431

main89990-50470iUSF41..CHI;USF40,45,46..LHD..(CHI,EUR)201512

main89990-50480iUSF40..GCC;USF41..LHD..(EUR,GCC)201512

LATIN AMERICA SPEC

sub89990-50481

main89990-50180iUSF40,41..GCC201209-201309

main89990-50300iUSF40,41..GCC201309-201410

main89990-50350iUSF40,41..GCC201410-201508

main89990-50440iUSF40,41..GCC201509-201512

main89990-50490iUSF40,41..GCC201512

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-33010×2iUSF4#201209-201708

FRONT-RH,REAR-LH

main89991-33020×2iUSF4#201209-201708

FRONT-LH,REAR-RH

main89991-30040×2iUSF40..GCC201410-201509

THE CRAFTED LINE,FRONT-RH,REAR-LH

main89991-30050×2iUSF40..GCC201410-201509

THE CRAFTED LINE,FRONT-LH,REAR-RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30090iUSF4#201209

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

main89992-50111iUSF4#201209

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

main89992-50101iUSF4#201209

89997ANTENNA, ELECTRICAL KEY

main89997-30070iUSF4#201209

9017906274

main90179-06274

91631J0612

main91631-J0612

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
