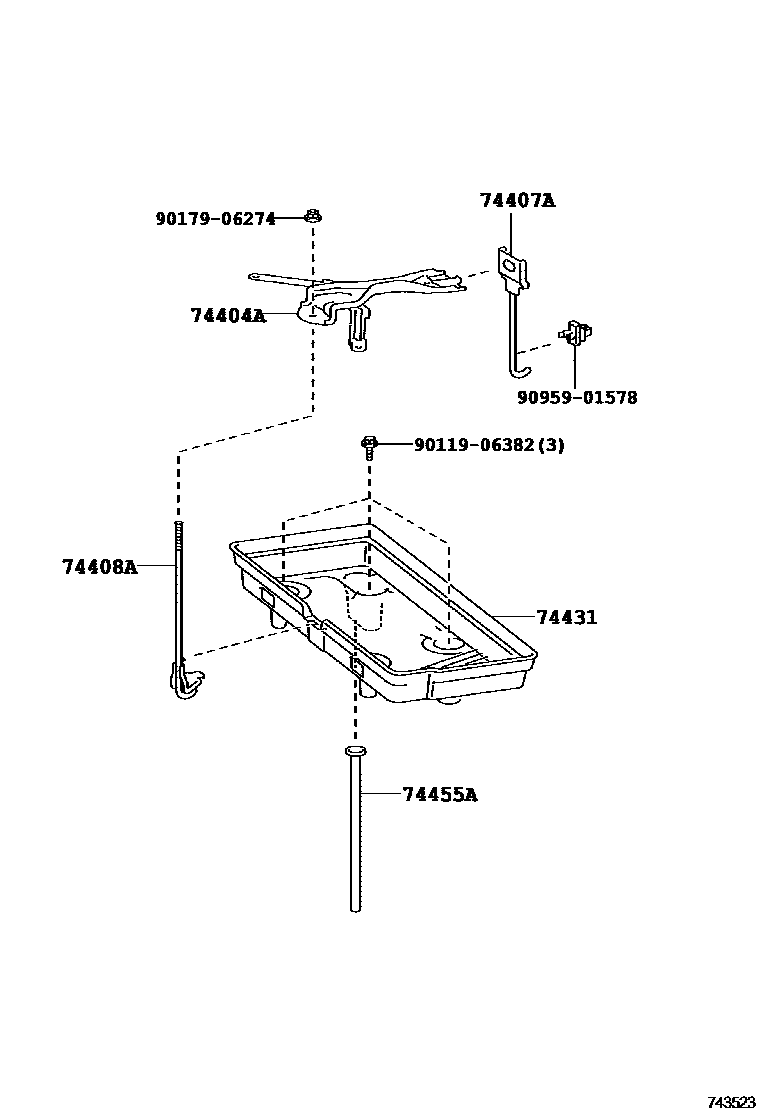

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-50030iUSF4#..LHD201209

main74404-50050iUSF40,41..RHD201209

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-50010iUSF4#201209

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-50030iUSF4#201209

74431TRAY, BATTERY

main74431-50030iUSF4#..LHD201209

main74431-50040iUSF40,41..RHD201209

74455AHOSE, BATTERY DRAIN

main74455-30020iUSF4#201209

9011906382

main90119-06382

9017906274

main90179-06274

9095901578

main90959-01578

8 parts on this diagram · 1 diagram in section
