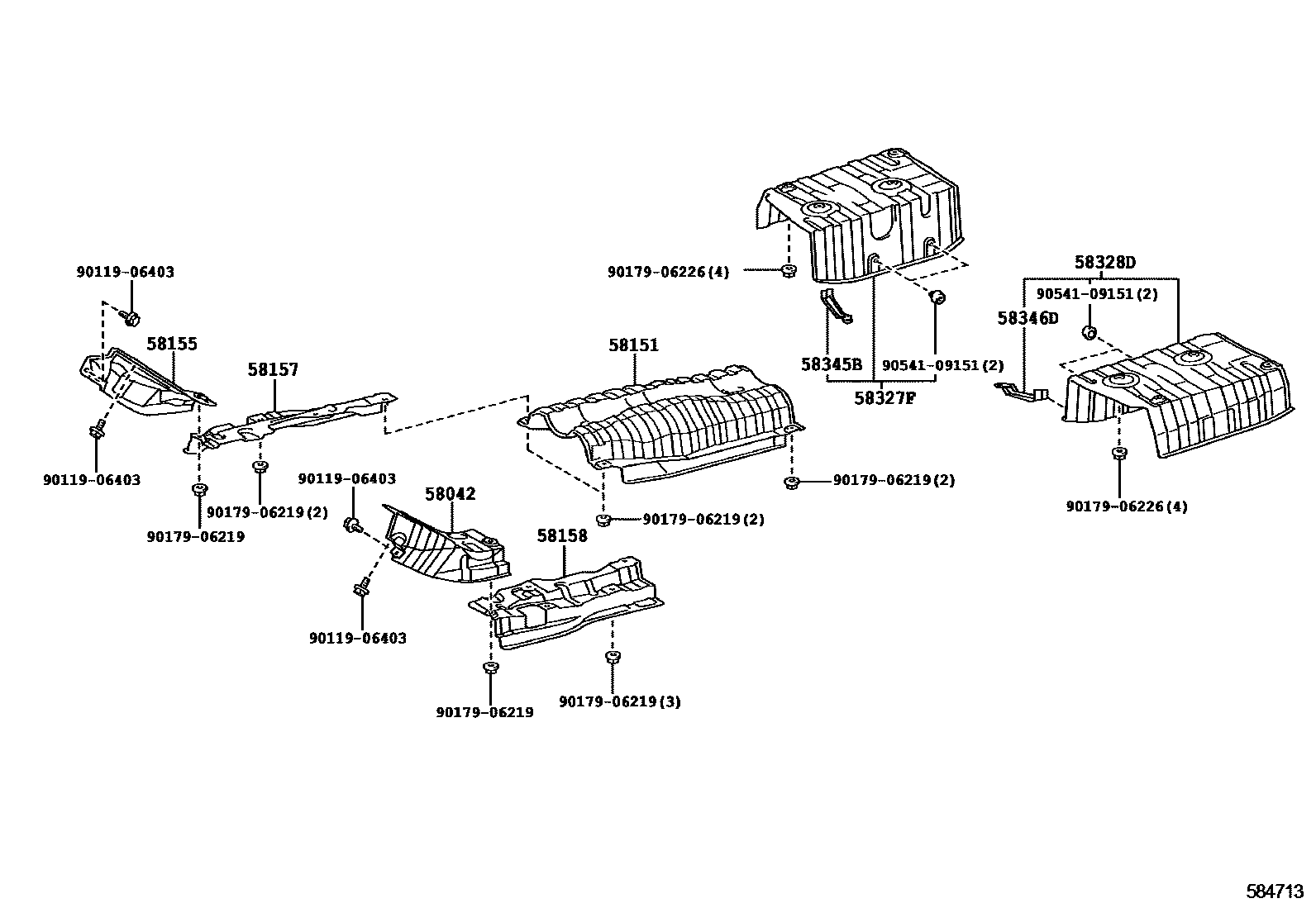

FLOOR INSULATOR

0001 1 0002 1

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-50020iUSF40,41201209-201306

sub58042-50021

main58042-50021iUSF40,41201307

main58042-50030iUSF45,46201209-201306

sub58042-50031

main58042-50031iUSF45,46201307

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-50031iUSF40,41201209

main58151-50040iUSF45,46201209

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-50040iUSF40,41201209

main58155-50050iUSF45,46201209

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-50040iUSF4#201209

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-50041iUSF40,41201209

main58158-50050iUSF45,46201209

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-50041iUSF4#201209

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-50031iUSF4#201209

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-50020iUSF4#201209

58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-50010iUSF4#201209

9011906403

main90119-06403

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

13 parts on this diagram · 2 diagrams in section
