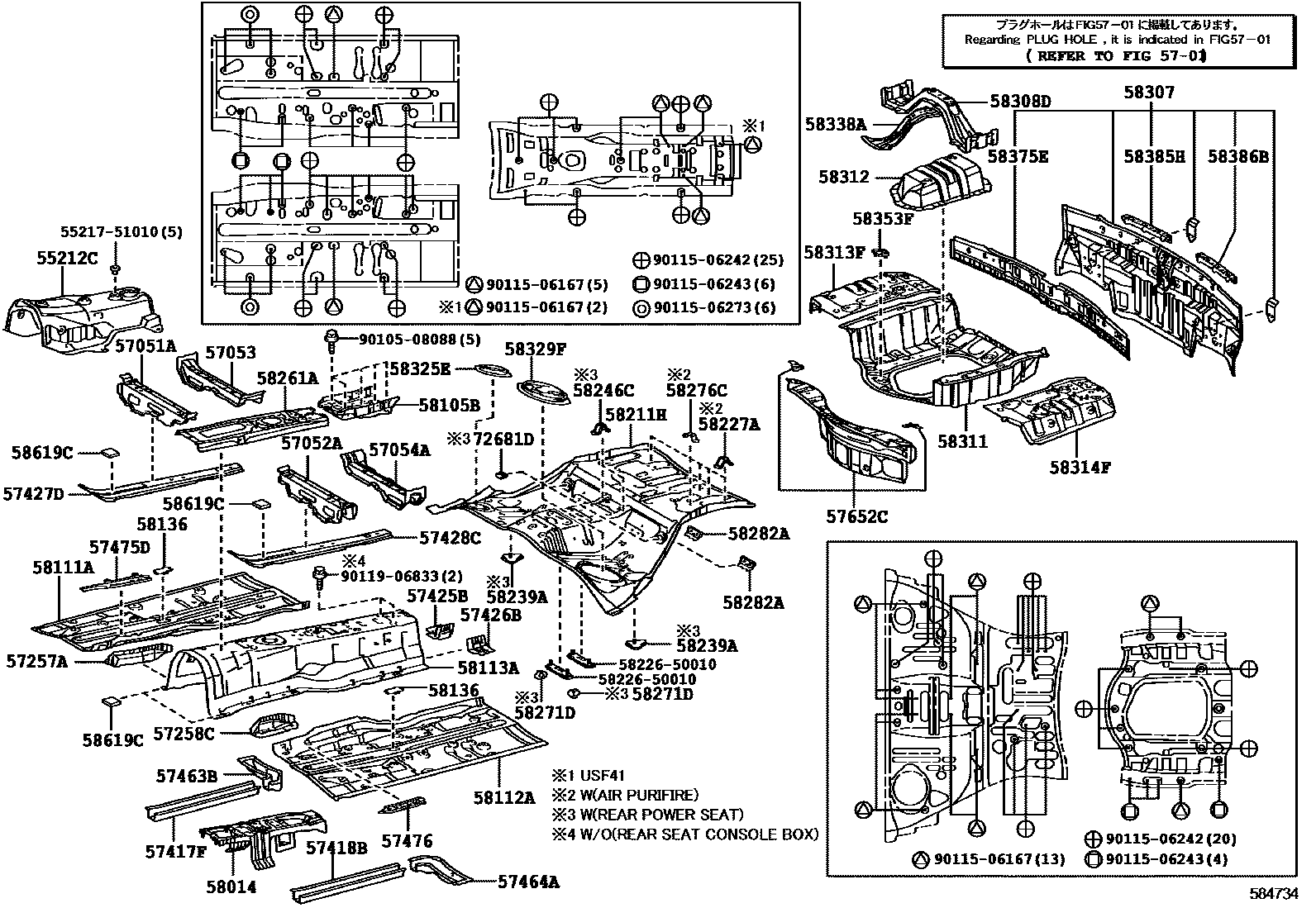

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL 0002 1FLOOR PANEL 0003 1FLOOR UNDER COVER 0004 1FLOOR UNDER COVER 0005 1FLOOR UNDER COVER 0006 1FLOOR UNDER COVER

55212CSILENCER, FRONT PANEL, LOWER

main55212-50060iUSF40,41201209-201707

sub55212-50061

main55212-50070iUSF45,46201209

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-50020iUSF4#201209

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-50020iUSF40,41201209

main57052-50030iUSF45,46201209

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-50030iUSF4#201209

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-50030iUSF4#201209

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-50050iUSF45,46201209

main57257-50060iUSF40,41201209

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-50050iUSF45,46201209

main57258-50060iUSF40,41201209

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-50061iUSF40,45201209

main57417-50071iUSF41,46201209

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-50061iUSF40,45201209

main57417-50071iUSF41,46201209

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-50050iUSF4#201209-201708

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57425-50050iUSF4#201209-201708

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57055-50010iUSF4#201209

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57056-50010iUSF4#201209

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57463-50040iUSF4#201209

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57464-50030iUSF4#201209

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-50010iUSF4#201209

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-50010iUSF40,41201209

main57476-50020iUSF45,46201209

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-50901iUSF4#201209

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-50020iUSF40201209

main58014-50030iUSF41201209

main58014-50040iUSF45201209

main58014-50050iUSF46201209

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-50010iUSF4#201209

58111APAN, FRONT FLOOR, RH

main58111-50904iUSF40,45201209

main58111-50905iUSF41,46201209

sub58111-50070

58112APANEL, FRONT FLOOR, LH

main58112-50905iUSF40201209

sub58112-50080

main58112-50906iUSF41201209

sub58112-50090

main58112-50907iUSF45201209

main58112-50908iUSF46201209

58113APANEL, FRONT FLOOR, CENTER

main58113-50911iUSF40201209

sub58113-50120

main58113-50912iUSF41201209

sub58113-50130

main58113-50913iUSF45201209

main58113-50914iUSF46201209

58136COVER, FRONT FLOOR HOLE

main58136-51010iUSF4#201209

58211HPAN, CENTER FLOOR

main58211-50919iUSF40,45201209-201509

sub58211-50931

main58211-50922iUSF40,45201209-201509

VERSION L

sub58211-50933

main58211-50922iUSF41..LHD..D4..EUR201209-201309

sub58211-50933

main58211-50931iUSF40,45;USF41..LHD..D4..EUR201509

main58211-50933iUSF41..LHD..D4..EUR201509

VERSION L

main58211-50933iUSF41..LHD..D4..EUR201509

EXECUTIVE PACKAGE(4SEAT)

main58211-50933iUSF41..LHD..D4..EUR201509

EXECUTIVE PACKAGE(5SEAT)

58227APLATE, AIR GUIDE

main58225-50010iUSF41..LHD..D4..EUR201209-201309

main58225-50010iUSF46;USF41..RHD;USF41..HTWC;USF41..D4..(CHI,GCC)201209

VERSION L

58239APLATE, BELT ANCHOR NUT

main58239-50030iUSF41..LHD..D4..EUR201209-201309

main58239-50030iUSF46;USF41..RHD;USF41..HTWC;USF41..D4..(CHI,GCC)201209

VERSION L

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-50010iUSF41..LHD..D4..EUR201209-201309

main58246-50010iUSF46;USF41..RHD;USF41..HTWC;USF41..D4..(CHI,GCC)201209

VERSION L

58261ACOVER, TRANSMISSION

main58261-50030iUSF4#201209

58271DREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3

main58271-50020iUSF41..LHD..D4..EUR201209-201309

main58271-50020iUSF46;USF41..RHD;USF41..HTWC;USF41..D4..(CHI,GCC)201209

VERSION L

58276CREINFORCEMENT, SIDE FLOOR, NO.4

main58276-50010iUSF41..LHD..D4..EUR201209-201309

main58276-50010iUSF46;USF41..RHD;USF41..HTWC;USF41..D4..(CHI,GCC)201209

VERSION L

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-50040iUSF4#201209

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-50071iUSF4#201209-201508

sub58307-50072

main58307-50072iUSF4#201509

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-50010iUSF4#201209-201405

sub58308-50011

main58308-50011iUSF4#201406

sub58308-50012

58311PAN, REAR FLOOR

main58311-50901iUSF4#201209

58312PANEL, REAR BODY FLOOR, NO.1

main58312-50010iUSF4#201209

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-50021iUSF4#201209-201708

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58306-50020iUSF4#201209-201708

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-50020iUSF4#201209

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-50010iUSF4#201209

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58338-50020iUSF4#201209-201405

sub58338-50021

main58338-50021iUSF4#201406

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-50010iUSF4#201209

58375EREINFORCEMENT, BODY LOWER BACK PANEL

main58375-50040iUSF4#201209

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-50010iUSF4#201209

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-50010iUSF4#201209

58619CSHEET, CENTER FLOOR SILENCER SUB

main58619-30080iUSF4#201209

72681DHOOK, REAR SEATBACK LOCK, LOWER

main72681-50020iUSF41..LHD..D4..EUR201209-201309

main72681-50020iUSF46;USF41..RHD;USF41..HTWC;USF41..D4..(CHI,GCC)201209

VERSION L

5521751010STRIP, DASH PANEL SILENCER FINISH

main55217-51010

5822650010PLATE, FLOOR PANEL FRONT END, LOWER

main58226-50010

9010508088

main90105-08088

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9011506273

main90115-06273

9011906833

main90119-06833

56 parts on this diagram · 6 diagrams in section
