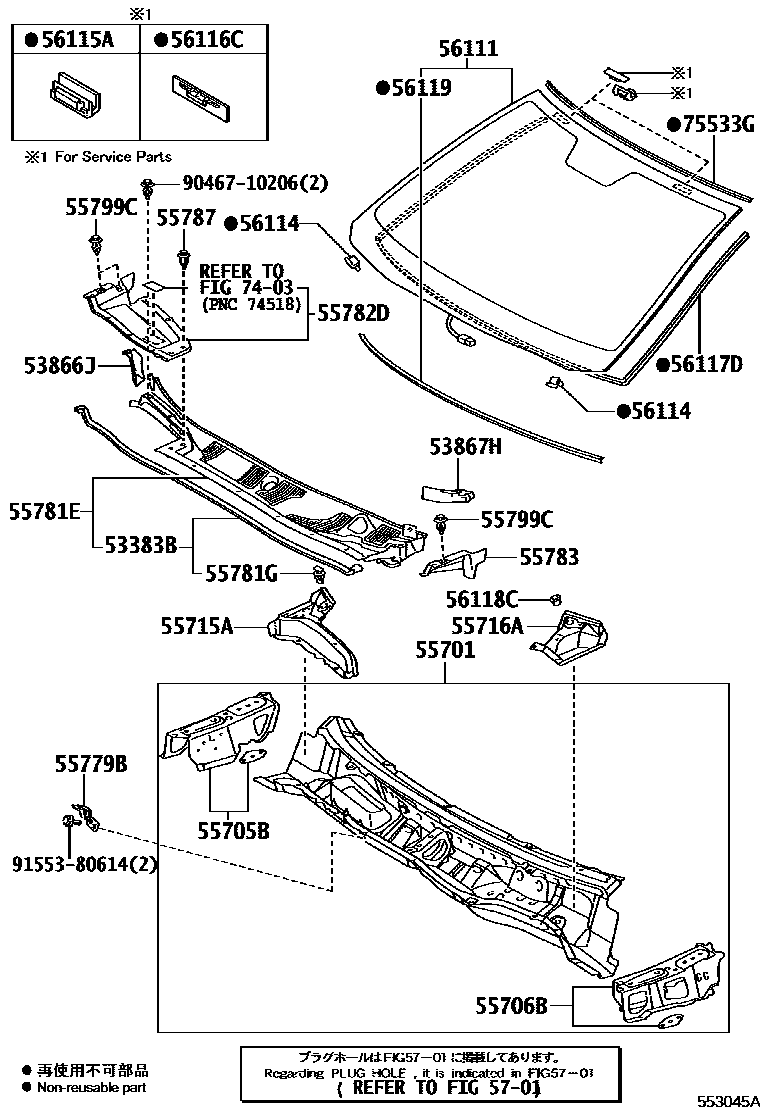

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-50060iUSF4#201209

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-50050iUSF4#201209

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-50050iUSF4#201209

55701PANEL SUB-ASSY, COWL

main55700-50183iUSF4#..LHD201209

main55700-50193iUSF40,41..RHD201209

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-50902iUSF4#201209

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-50902iUSF4#201209

55715ABRACE, COWL TOP TO APRON, RH

main55715-50070iUSF4#..LHD201209

main55715-50080iUSF40,41..RHD201209

55716ABRACE, COWL TOP TO APRON, LH

main55716-50070iUSF4#..LHD201209

main55716-50080iUSF40,41..RHD201209

55779BBRACKET, WIRING HARNESS MOUNTING

main55779-50020iUSF4#..LHD201209

main55779-50030iUSF40,41..RHD201209

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-50051iUSF4#..LHD201209

sub55708-50071

main55708-50061iUSF40,41..RHD201209

sub55708-50081

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108iUSF4#201209

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55785-50040iUSF40,41..RHD201209

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-50050iUSF4#..LHD201209

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55785-50030iUSF4#..LHD201209

55787CLIP, COWL VENTILATOR LOUVER, INNER

main90467-07076-C0iUSF4#201209-201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iUSF4#201703-201708

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-10170-C0iUSF4#201209-201708

BLACK

56111GLASS, WINDSHIELD

main56101-50650iUSF40..RHD201209

*IRCL,T=5.48,GREEN

main56101-50650iUSF40..RHD201209

*IRCL,T=5.48,GREEN,VERSION L

main56101-50660iUSF46..CHI201410

*IRCEHL,T=5.48,GREEN

sub56101-50997

sub75531-50050

main56101-50730iUSF40..RHD201209

*LAM,T=5.48,GREEN

main56101-50760iUSF41..CHI;USF46..EUR201209-201410

*IRCEHL,T=5.48,GREEN

sub56101-5A924

sub75531-50050

main56101-50760iUSF40,45..LHD..EUR201209

*IRCEHL,T=5.48,GREEN,VERSION L&COLD AREA SPEC

sub56101-5A924

sub75531-50050

main56101-50770iUSF40,45..LHD..EUR201209

*LAM,T=5.48,GREEN

sub56101-5A925

sub75531-50050

main56101-50780iUSF40..GCC;USF41..LHD..(EUR,GCC)201209

*IRCL,T=5.48,GREEN

sub56101-5A926

sub75531-50050

main56101-50780iUSF40..GCC;USF41..LHD..(EUR,GCC)201209

*IRCL,T=5.48,GREEN,VERSION L

sub56101-5A926

sub75531-50050

56114RETAINER, WINDSHIELD GLASS

main56114-50020iUSF4#201209

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iUSF4#201209

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iUSF4#201209

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-50120iUSF40,45..LHD..EUR201209

L=2917,VERSION L&COLD AREA SPEC

sub56117-64010

main56117-50120iUSF40,45..LHD..EUR201209

L=2917,VERSION L&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)

sub56117-64010

main56117-50120iUSF40,45..LHD..EUR201209

L=2917,VERSION L&PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)

sub56117-64010

main56117-50120iUSF40,45..LHD..EUR201209

L=2917,COLD AREA SPEC

sub56117-64010

main56117-50120iUSF40,45..LHD..EUR201209

L=2917,PRE-COLLISION SYSTEM-WITH(*PB)

sub56117-64010

main56117-50120iUSF40,45..LHD..EUR201209

L=2917,PRE-COLLISION SYSTEM-WITH(*RPCS)

sub56117-64010

main56117-50120iUSF41..D4..GCC201209

L=2917

sub56117-64010

main56117-50120iUSF41..D4..GCC201209

L=2917,VERSION L

sub56117-64010

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iUSF4#201209

56119SEAL, WINDSHIELD GLASS

main56119-50060iUSF4#201209

5701

7403

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-50050iUSF4#201209

9046710206

main90467-10206

9155380614

main91553-80614

28 parts on this diagram · 2 diagrams in section
