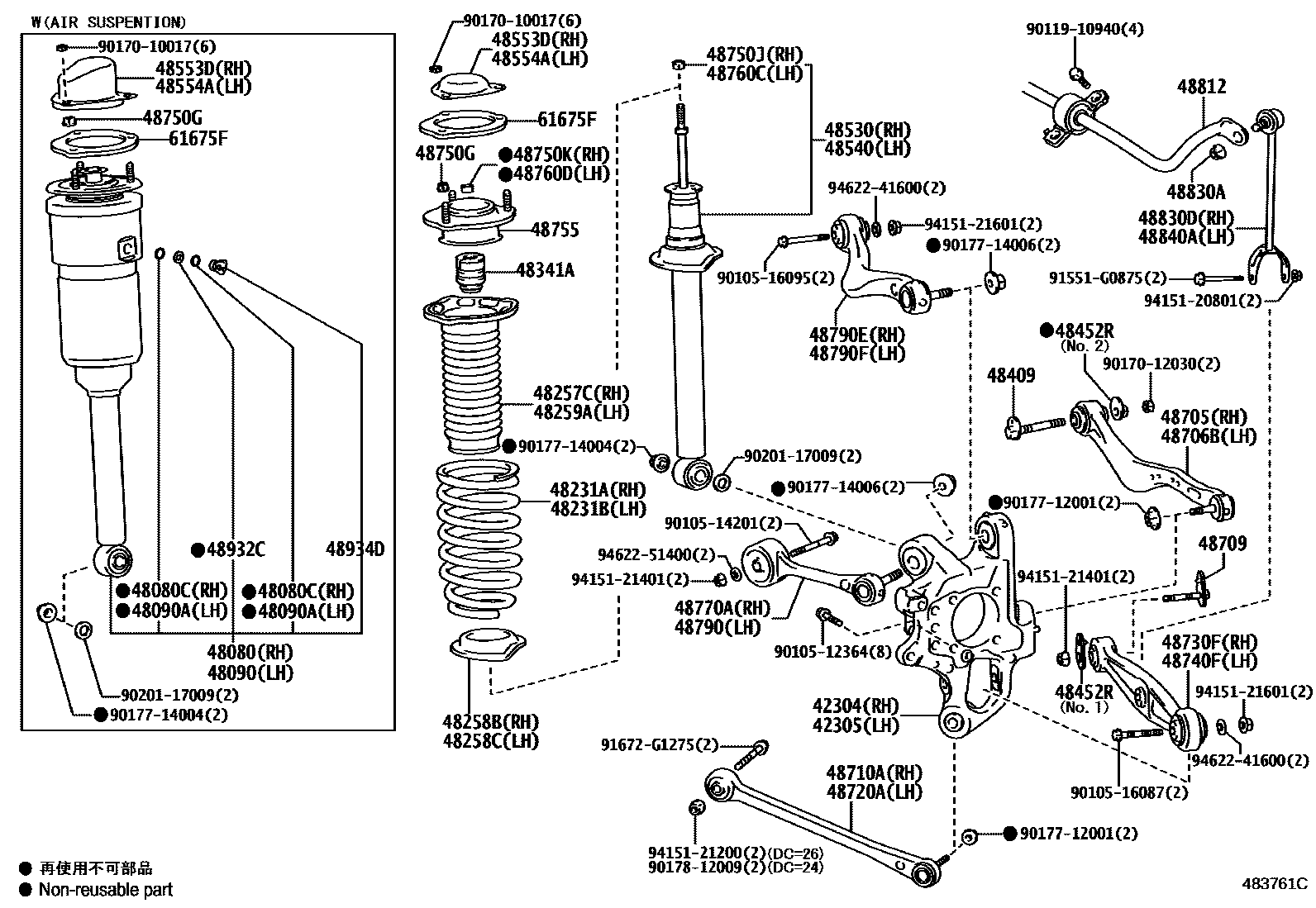

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-50100iUSF4#201209-201708

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-50100iUSF4#201209-201708

48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER

main48080-50370iUSF45,46201209-201312

sub48080-50371

main48080-50371iUSF45,46201401

main48080-50410iUSF41..LHD..D4..EUR201209-201309

TAIWAN SPEC

sub48080-50411

main48080-50410iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

sub48080-50411

main48080-50410iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

sub48080-50411

main48080-50410iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

sub48080-50411

main48080-50410iUSF40..LHD..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

sub48080-50411

main48080-50420iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

sub48080-50421

main48080-50420iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

VERSION L

sub48080-50421

main48080-50420iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

SUSPENSION-AIR SUSPENTION

sub48080-50421

main48080-50420iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

MOROCCO SPEC&SUSPENSION-COIL SPRING

sub48080-50421

main48080-50420iUSF40..RHD201209-201312

THAILAND SPEC&SUSPENSION-COIL SPRING

sub48080-50421

main48080-50421iUSF40..RHD201401

VERSION L

main48080-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

THAILAND SPEC&SUSPENSION-COIL SPRING

main48080-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48080-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

SUSPENSION-AIR SUSPENTION

main48080-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

MOROCCO SPEC&SUSPENSION-COIL SPRING

48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)

main90301-04011iUSF40..GCC201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER

main48090-50370iUSF45,46201209-201312

sub48090-50371

main48090-50371iUSF45,46201401

main48090-50410iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

sub48090-50411

main48090-50410iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

sub48090-50411

main48090-50410iUSF41..LHD..D4..EUR201209-201309

TAIWAN SPEC

sub48090-50411

main48090-50410iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

sub48090-50411

main48090-50410iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

sub48090-50411

main48090-50420iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

sub48090-50421

main48090-50420iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

VERSION L

sub48090-50421

main48090-50420iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

SUSPENSION-AIR SUSPENTION

sub48090-50421

main48090-50420iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

MOROCCO SPEC&SUSPENSION-COIL SPRING

sub48090-50421

main48090-50420iUSF40..RHD201209-201312

THAILAND SPEC&SUSPENSION-COIL SPRING

sub48090-50421

main48090-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

THAILAND SPEC&SUSPENSION-COIL SPRING

main48090-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48090-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

VERSION L

main48090-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

SUSPENSION-AIR SUSPENTION

main48090-50421iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201401

MOROCCO SPEC&SUSPENSION-COIL SPRING

48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main90301-04011iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main90301-04011iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48231ASPRING, COIL, REAR RH

main48231-50340iUSF40..GCC201209

SUSPENSION-COIL SPRING

main48231-50350iUSF41..HTWC201209

48231BSPRING, COIL, REAR LH

main48231-50340iUSF40..GCC201209

SUSPENSION-COIL SPRING

main48231-50350iUSF41..HTWC201209

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-50030iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main48257-50030iUSF41..LHD..D4..EUR201309

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48158-30020iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main48158-30020iUSF41..LHD..D4..EUR201309

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48158-30020iUSF41..LHD..D4..EUR201309

main48158-30020iUSF40..RHD201209

SUSPENSION-COIL SPRING

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-50030iUSF41..LHD..D4..EUR201309

main48257-50030iUSF40..RHD201209

SUSPENSION-COIL SPRING

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-50080iUSF40..RHD201209

SUSPENSION-COIL SPRING

main48341-50080iUSF41..LHD..D4..EUR201309

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-50020iUSF4#201209

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-50010iUSF4#201209

MARK 1,NO.1

main48452-50020iUSF4#201209

MARK 2,NO.1

main48452-50030iUSF4#201209

MARK 3,NO.1

main48452-50040iUSF4#201209

NO.2

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80644iUSF40..RHD201209-201404

MARK 48530-50240,SUSPENSION-COIL SPRING

sub48530-80724

main48530-80644iUSF40..RHD201209-201404

MARK 48530-50240

sub48530-80724

main48530-80724iUSF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR201404

MRAK 48530-50241

main48530-80724iUSF40..RHD201404

MRAK 48530-50241,SUSPENSION-COIL SPRING

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-59105iUSF40..RHD201209-201404

MARK 48540-50070

sub48540-59106

main48540-59105iUSF40..GCC;USF41..HTWC201209-201404

MARK 48540-50070,SUSPENSION-COIL SPRING

sub48540-59106

main48540-59106iUSF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR201404

MARK 48540-50071

main48540-59106iUSF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR201404

MARK 48540-50071,SUSPENSION-COIL SPRING

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-50054iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48553-50054iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48553-50054iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48553-50054iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48553-50054iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main48553-50054iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48553-50054iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main48553-50054iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main48553-50054iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

main48553-50100iUSF41..LHD..D4..EUR201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48553-50100iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main48553-50100iUSF41..LHD..D4..EUR201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48553-50100iUSF41..LHD..D4..EUR201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-50100iUSF41..LHD..D4..EUR201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48553-50100iUSF41..LHD..D4..EUR201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48553-50100iUSF41..LHD..D4..EUR201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48553-50100iUSF40..RHD201209

SUSPENSION-COIL SPRING

main48554-50064iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48554-50064iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48554-50064iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48554-50064iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48554-50064iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main48554-50064iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48554-50064iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main48554-50064iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main48554-50064iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-50030iUSF4#201209

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-50020iUSF4#201209

48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM

main48709-50040iUSF4#201209

MARK 1

main48709-50050iUSF4#201209

MARK 2

main48709-50060iUSF4#201209

MARK 3

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-50080iUSF4#201209

sub48710-40080

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-50080iUSF4#201209

sub48710-40080

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-50111iUSF4#201209

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-50111iUSF4#201209

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-10088iUSF4#201209

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main90177-12002iUSF41..LHD..D4..EUR201309

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-12057iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main90387-12057iUSF41..LHD..D4..EUR201309

48755SUPPORT, REAR SUSPENSION

main48755-50121iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main48755-50121iUSF41..LHD..D4..EUR201309

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main90177-12002iUSF41..LHD..D4..EUR201309

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-12057iUSF40..GCC;USF41..HTWC201209

SUSPENSION-COIL SPRING

main90387-12057iUSF41..LHD..D4..EUR201309

48770AARM ASSY, UPPER CONTROL, REAR RH

main48710-50090iUSF4#201209

48790ARM ASSY, UPPER CONTROL, REAR LH

main48710-50090iUSF4#201209

48790EARM ASSY, UPPER CONTROL, REAR RH NO.2

main48770-50060iUSF4#201209

48790FARM ASSY, UPPER CONTROL, REAR LH NO.2

main48790-50080iUSF4#201209

48812BAR, STABILIZER, REAR

main48805-50020iUSF4#201209

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151iUSF4#201209

48830DLINK ASSY, REAR STABILIZER, RH

main48830-50040iUSF4#201209

48840ALINK ASSY, REAR STABILIZER, LH

main48840-50020iUSF4#201209

48932CPLATE, HEIGHT CONTROL TUBE

main48932-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48932-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48932-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48932-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main48932-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48934DCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48934-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main48934-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main48934-30010iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

THAILAND SPEC&SUSPENSION-COIL SPRING

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SOUTHEAST ASIA SPEC&SUSPENSION-COIL SPRING

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main48934-30010iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

61675FREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main61675-50030iUSF4#201209

9010512364

main90105-12364

9010514201

main90105-14201

9010516087

main90105-16087

9010516095

main90105-16095

9011910940

main90119-10940

9017010017

main90170-10017

9017012030

main90170-12030

9017712001

main90177-12001

9017714004

main90177-14004

9017714006

main90177-14006

9017812009

main90178-12009

9020117009

main90201-17009

91551G0875

main91551-G0875

91672G1275

main91672-G1275

9415120801

main94151-20801

9415121200

main94151-21200

9415121401

main94151-21401

9415121601

main94151-21601

9462241600

main94622-41600

9462251400

main94622-51400

63 parts on this diagram · 1 diagram in section
