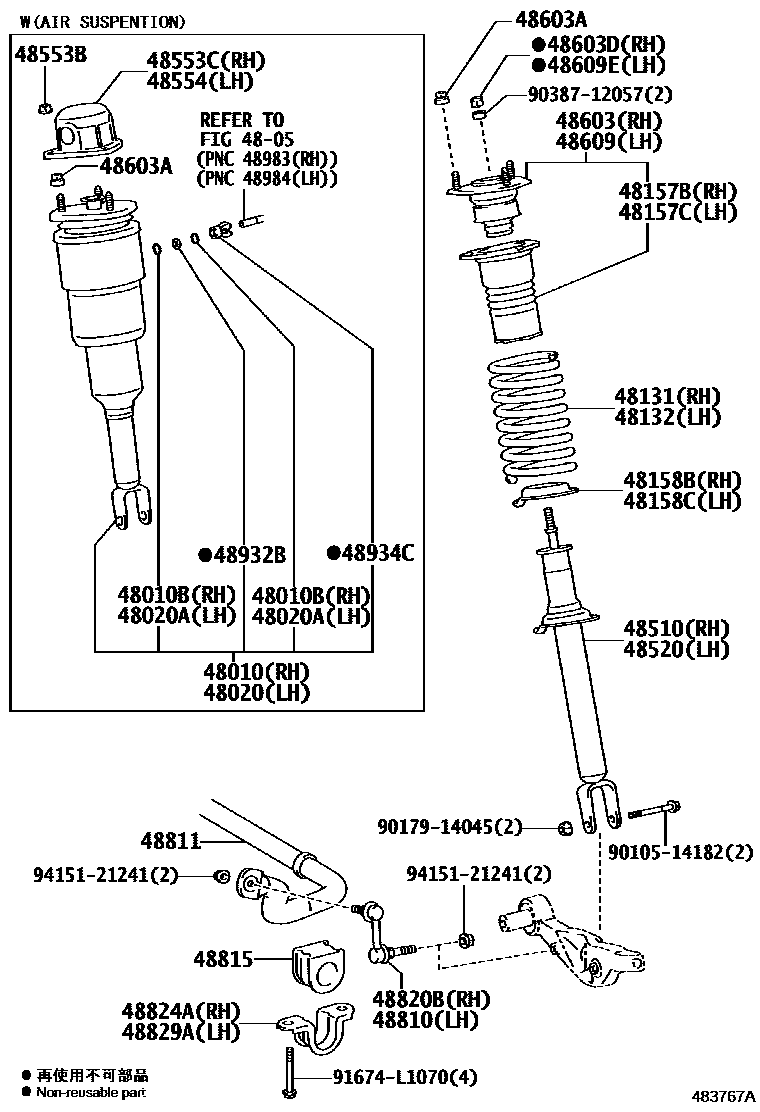

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50340iUSF45,46201209-201312

main48010-50341iUSF45,46201401

main48010-50360iUSF40..LHD..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48010-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

MOROCCO SPEC&SUSPENSION-COIL SPRING

main48010-50371iUSF41..HTWC..EUR201401

MOROCCO SPEC&SUSPENSION-COIL SPRING

main48010-50320iUSF40..LHD..EUR201210-201312

PORTUGAL,SPAIN,CANARY ISLANDS SPEC&F SPORT

main48010-50321iUSF40..LHD..EUR201401-201609

PORTUGAL,SPAIN,CANARY ISLANDS SPEC&F SPORT

main48010-50330iUSF40..LHD201210-201312

F SPORT

main48010-50331iUSF40..LHD201401

SUSPENSION-AIR SUSPENTION F SPORT

main48010-50361iUSF40..LHD..EUR201401-201609

HOLLAND,BELGIUM SPEC

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011×2iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-50340iUSF45,46201209-201312

main48020-50341iUSF45,46201401

main48020-50360iUSF40..LHD..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main48020-50370iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201312

MOROCCO SPEC&SUSPENSION-COIL SPRING

main48020-50371iUSF41..HTWC..EUR201401

MOROCCO SPEC&SUSPENSION-COIL SPRING

main48020-50320iUSF40..LHD..EUR201210-201312

PORTUGAL,SPAIN,CANARY ISLANDS SPEC&F SPORT

main48020-50321iUSF40..LHD..EUR201401-201609

PORTUGAL,SPAIN,CANARY ISLANDS SPEC&F SPORT

main48020-50330iUSF40..LHD201210-201312

F SPORT

main48020-50331iUSF40..GCC201410-201609

RUSSIA SPEC&THE CRAFTED LINE

main48020-50361iUSF40..GCC201401

EXECUTIVE PACKAGE(5SEAT)

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011×2iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

4805

48131SPRING, FRONT COIL, RH

main48131-50240iUSF40..GCC201209

SUSPENSION-COIL SPRING

main48131-50250iUSF41..HTWC201209

48132SPRING, FRONT COIL, LH

main48131-50240iUSF40..GCC201209

SUSPENSION-COIL SPRING

main48131-50250iUSF41..LHD..D4..EUR201309

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-50030iUSF40..RHD201209

SUSPENSION-COIL SPRING

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-50030iUSF40..RHD201209

SUSPENSION-COIL SPRING

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iUSF40..RHD201209

SUSPENSION-COIL SPRING

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iUSF40..RHD201209

SUSPENSION-COIL SPRING

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80587iUSF40..RHD201209-201404

MARK 48510-50250,SUSPENSION-COIL SPRING

main48510-80683iUSF40..RHD201404

MARK 48510-50251

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80587iUSF40..RHD201209-201404

MARK 48510-50250,SUSPENSION-COIL SPRING

main48510-80683iUSF40..RHD201404

MARK 48510-50251

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50120iUSF45,46201209

main48553-50130iUSF41..HTWC..EUR201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50120iUSF45,46201209

main48553-50130iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-50120iUSF41..LHD..D4..EUR201309

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iUSF4#201209

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-12002iUSF41..LHD..D4..EUR201309

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-50120iUSF41..LHD..D4..EUR201309

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-12002iUSF40..RHD201209

SUSPENSION-COIL SPRING

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020iUSF4#201209

48811BAR, STABILIZER, FRONT

main48811-50120iUSF40,41201209

main48811-50150iUSF45,46201209

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50200×2iUSF40,41201209

main48815-50220×2iUSF45,46201209

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030iUSF4#201209

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-50040iUSF40,41201209

main48824-50060iUSF45,46201209

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-50050iUSF40,41201209

main48829-50010iUSF45,46201209

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

MOROCCO SPEC&SUSPENSION-COIL SPRING

9010514182

main90105-14182

9017914045

main90179-14045

9038712057

main90387-12057

91674L1070

main91674-L1070

9415121241

main94151-21241

34 parts on this diagram · 2 diagrams in section
