DISC WHEEL & WHEEL CAP

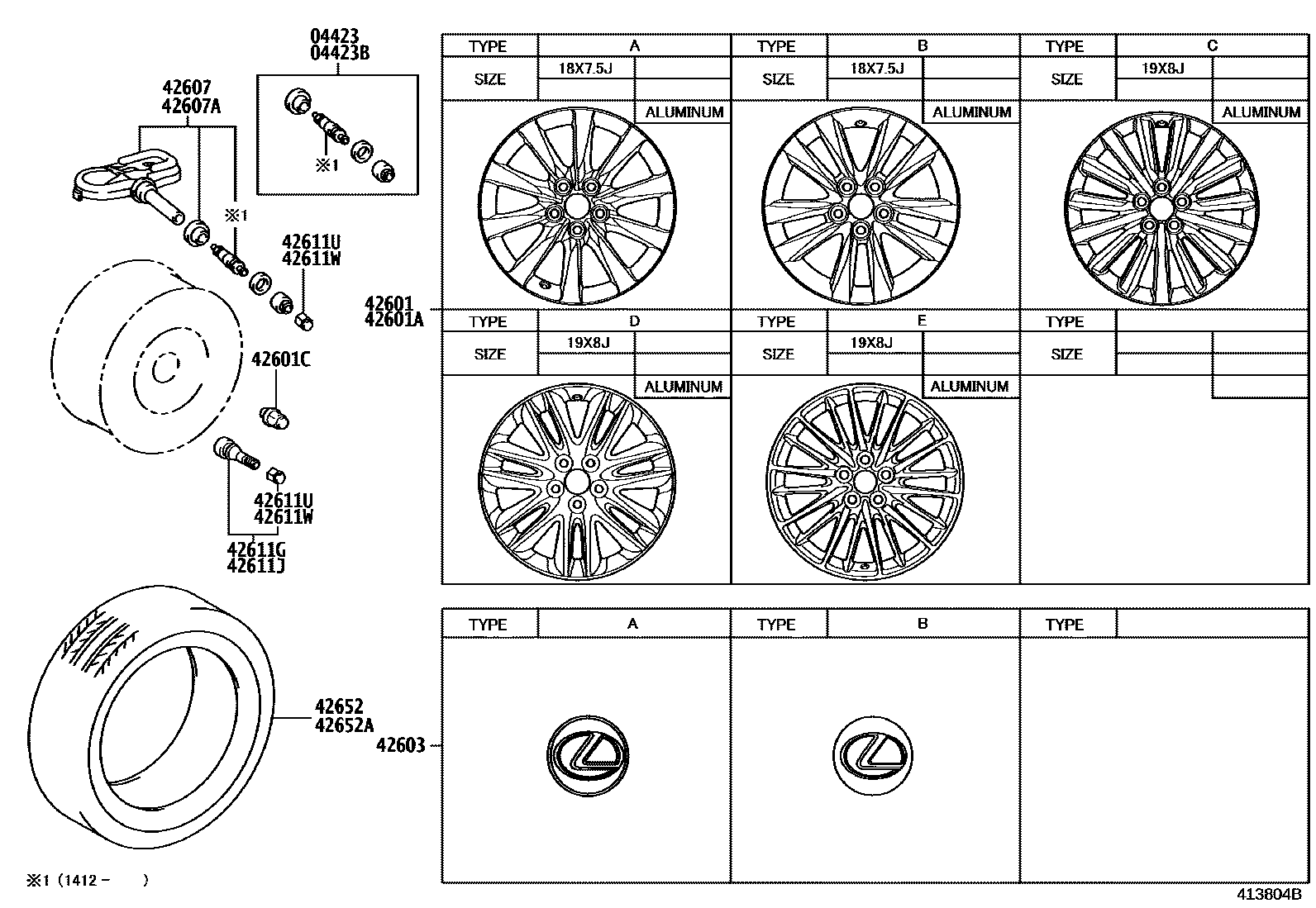

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i201209-201411
sub04423-33060
main04423-33060i201412
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i201209-201411
LATIN AMERICA SPEC&VERSION L&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE
sub04423-33060
main04423-33060i201412
MOROCCO SPEC&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE
42601WHEEL, DISC
main42611-50710i201209-201706
18X7.5J,#,TYPE A:REFER ILLUST.
sub42611-50711
main42611-50711i201707
18X7.5J,#,TYPE A:REFER ILLUST.
sub42611-50712
main4261A-50120i201209-201307
18X7.5J,*SPR,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-50121
main4261A-50121i201308
18X7.5J,*SPR,THAILAND SPEC&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-50122
main4261A-50130i201209-201307
18X7.5J,#,VERSION L&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-50131
main4261A-50131i201308
18X7.5J,#,TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-50132
main42611-50650i201410-201509
19X8J,BLACK PAINT,RUSSIA SPEC&THE CRAFTED LINE&TIRE & DISC WHEEL-245/45R19 FORGED(SM)PJ-E2&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
main42611-50680i201609
19X8J,BLACK PAINT,TAIWAN SPEC&F SPORT&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE,TYPE E:REFER ILLUST.
main4261A-50140i201309-201404
19X8J,*HGL,MOROCCO SPEC&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-50141
main4261A-50141i201609
19X8J,*HGL,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE C:REFER ILLUST.
sub4261A-50142
main4261A-50150i201209-201307
19X8J,#,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-50151
main4261A-50151i201308
19X8J,#,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-50152
main4261A-50160i201209-201404
19X8J,*SPR SILVER,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE & DISC WHEEL-245/45R198J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-50161
main4261A-50161i201405
19X8J,*SPR SILVER,PHILIPPINES,VIETNAM SPEC&VERSION L&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE,TYPE D:REFER ILLUST.
sub4261A-50162
main4261A-50170i201209-201404
19X8J,#,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-50171
main4261A-50171i201405-201609
19X8J,#,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-50172
42601AWHEEL, DISC (FOR SPARE)
main4261A-50120i201209-201307
18X7.5J,*SPR,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-50121
main4261A-50121i201308
18X7.5J,*SPR,THAILAND SPEC&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-50122
main4261A-50130i201209-201307
18X7.5J,#,TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-50131
main4261A-50131i201308
18X7.5J,#,TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
sub4261A-50132
main42611-50650i201410-201509
19X8J,BLACK PAINT,RUSSIA SPEC&THE CRAFTED LINE&TIRE & DISC WHEEL-245/45R19 FORGED(SM)PJ-E2&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
main42611-50680i201210-201609
19X8J,BLACK PAINT,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&F SPORT&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
main42611-50710i201209-201706
18X7.5J,#,SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub42611-50711
main42611-50711i201707
18X7.5J,#,SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
sub42611-50712
main4261A-50140i201209-201404
19X8J,*HGL,HONGKONG,MACAO SPEC&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-50141
main4261A-50141i201405
19X8J,*HGL,MOROCCO SPEC&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-50142
main4261A-50150i201209-201307
19X8J,#,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-50151
main4261A-50151i201308
19X8J,#,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
sub4261A-50152
main4261A-50160i201209-201404
19X8J,*SPR SILVER,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE & DISC WHEEL-245/45R198J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-50161
main4261A-50161i201405
19X8J,*SPR SILVER,PHILIPPINES,VIETNAM SPEC&VERSION L&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE,TYPE D:REFER ILLUST.
sub4261A-50162
main4261A-50170i201209-201404
19X8J,#,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-50171
main4261A-50171i201405-201609
19X8J,#,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub4261A-50172
42601CNUT, HUB (FOR AXLE)
main90942-01111i201209-201708
42603ORNAMENT SUB-ASSY, WHEEL HUB
main42603-30550i201209
*CHR,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE,TYPE A:REFER ILLUST.
sub42603-30551
main42603-53110i201410-201509
*ALU,RUSSIA SPEC&TIRE & DISC WHEEL-245/45R19 FORGED(SM)PJ-E2,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-30060i201209
THAILAND SPEC&SUSPENSION-AIR SUSPENTION F SPORT&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE
main42607-30070i201209-201404
sub42607-30071
main42607-30071i201405
main42607-30100i201209
sub42607-30060
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-30060i201209
THAILAND SPEC&SUSPENSION-AIR SUSPENTION F SPORT&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARE TIRE-GROUND TIRE
main42607-30070i201209-201404
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&VERSION L&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE
sub42607-30071
main42607-30071i201405
SOUTH AFRICA SPEC&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE
main42607-30100i201209
sub42607-30060
42611GVALVE (FOR TUBELESS TIRE)
main90942-05028i201209
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05028i201209
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT
42611UCAP, TIRE VALVE
main90942-05029i201209
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT
main90942-05042i201209
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05029i201209
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&TIRE INFLATION PRESSURE WARNING-WITHOUT
main90942-05042i201209
SOUTH AFRICA SPEC&TIRE & DISC WHEEL-235/50R18 7.5J&SPARE TIRE-GROUND TIRE
42652TIRE
main42652-50A00i201209-201708
235/50R18 97W,*B/S
main42652-50A80i201209-201405
235/50R18 97W,*D/L
sub42652-50A81
main42652-50A81i201405-201601
235/50R18 97W,*D/L
sub42652-50A82
main42652-50A82i201602-201708
235/50R18 97W,*D/L
main42652-50A10i201209-201708
245/45R19 98Y,*B/S,THAILAND SPEC&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARETIRE-GROUND TIRE
main42652-50A20i201209-201601
245/45R19 98Y,*B/S,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
sub42652-50A21
main42652-50A21i201602-201708
245/45R19 98Y,*B/S,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
main42652-50A30i201209-201705
245/45R19 98Y,*B/S,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
sub42652-50A31
main42652-50A31i201706-201708
245/45R19 98Y,*B/S,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
main42652-50B00i201209-201405
245/45R19 98Y,*D/L,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
sub42652-50B01
main42652-50B01i201405-201601
245/45R19 98Y,*D/L,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
sub42652-50B02
main42652-50B02i201602-201708
245/45R19 98Y,*D/L,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
42652ATIRE (FOR SPARE)
main42652-50A00i201209-201708
235/50R18 97W,*B/S
main42652-50A80i201209-201405
235/50R18 97W,*D/L
sub42652-50A81
main42652-50A81i201405-201601
235/50R18 97W,*D/L
sub42652-50A82
main42652-50A82i201602-201708
235/50R18 97W,*D/L
main42652-50A10i201209-201708
245/45R19 98Y,*B/S,THAILAND SPEC&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE&SPARETIRE-GROUND TIRE
main42652-50A20i201209-201601
245/45R19 98Y,*B/S,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
sub42652-50A21
main42652-50A21i201602-201708
245/45R19 98Y,*B/S,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
main42652-50A30i201209-201705
245/45R19 98Y,*B/S,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
sub42652-50A31
main42652-50A31i201706-201708
245/45R19 98Y,*B/S,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
main42652-50B00i201209-201405
245/45R19 98Y,*D/L,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
sub42652-50B01
main42652-50B01i201405-201601
245/45R19 98Y,*D/L,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
sub42652-50B02
main42652-50B02i201602-201708
245/45R19 98Y,*D/L,TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE

14 parts on this diagram · 2 diagrams in section
