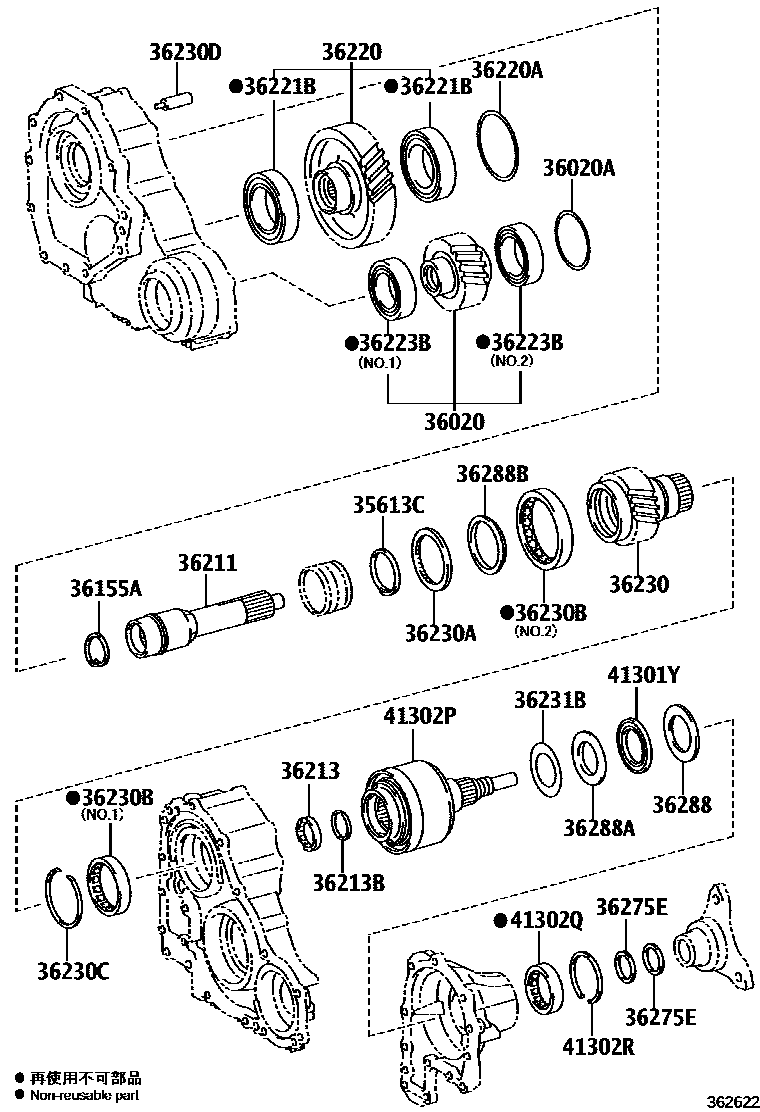

TRANSFER GEAR
35613CRING, FORWARD CLUTCH DRAM OIL SEAL
36020ASHIM, (FOR TRANSFER COUNTER GEAR ASSY)
T=1.40,MARK 40
T=1.42,MARK 42
T=1.44,MARK 44
T=1.46,MARK 46
T=1.48,MARK 48
T=1.50,MARK 50
T=1.52,MARK 52
T=1.54,MARK 54
T=1.56,MARK 56
T=1.58,MARK 58
T=1.60,MARK 60
T=1.62,MARK 62
T=1.64,MARK 64
T=1.66,MARK 66
T=1.68,MARK 68
T=1.70,MARK 70
T=1.72,MARK 72
T=1.74,MARK 74
T=1.76,MARK 76
T=1.78,MARK 78
T=1.80,MARK 80
T=1.82,MARK 82
T=1.84,MARK 84
T=1.86,MARK 86
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
T=2.30,MARK 30
36155ARING, TRANSFER OIL SEAL
36211SHAFT, TRANSFER INPUT
36213STOPPER, TRANSFER INPUT GEAR
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=1.9
36220ASHIM (FOR TRANSFER IDLER GEAR ASSY)
T=0.90,MARK 90
T=0.92,MARK 92
T=0.94,MARK 94
T=0.96,MARK 96
T=0.98,MARK 98
T=1.00,MARK 00
T=1.02,MARK 02
T=1.04,MARK 04
T=1.06,MARK 06
T=1.08,MARK 08
T=1.10,MARK 10
T=1.12,MARK 12
T=1.14,MARK 14
T=1.16,MARK 16
T=1.18,MARK 18
T=1.20,MARK 20
T=1.22,MARK 22
T=1.24,MARK 24
T=1.26,MARK 26
T=1.28,MARK 28
T=1.30,MARK 30
T=1.32,MARK 32
T=1.34,MARK 34
T=1.36,MARK 36
T=1.38,MARK 38
T=1.40,MARK 40
T=1.42,MARK 42
T=1.44,MARK 44
T=1.46,MARK 46
T=1.48,MARK 48
T=1.50,MARK 50
T=1.52,MARK 52
T=1.54,MARK 54
T=1.56,MARK 56
T=1.58,MARK 58
T=1.60,MARK 60
T=1.62,MARK 62
T=1.64,MARK 64
T=1.66,MARK 66
T=1.68,MARK 68
T=1.70,MARK 70
T=1.72,MARK 72
T=1.74,MARK 74
T=1.76,MARK 76
T=1.78,MARK 78
T=1.80,MARK 80
36221BBEARING (FOR TRANSFER IDLER GEAR)
36223BBEARING (FOR TRANSFER COUNTER GEAR)
NO.1
NO.1
NO.2
NO.2
36230GEAR ASSY, TRANSFER FR DRIVE
36230ABEARING (FOR TRANSFER FR DRIVE GEAR ASSY)
36230BBEARING, CYLINDRICAL ROLLER(FOR TRANSFER FR DRIVE GEAR ASSY)
NO.1
NO.2
36230CRING, SNAP (FOR TRANSFER FR DRIVE GEAR ASSY)
36230DPIN (FOR TRANSFER FR DRIVE GEAR ASSY)
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
T=0.98, MARK 98
T=1.03, MARK 03
T=1.08, MARK 08
T=1.13, MARK 13
T=1.18, MARK 18
T=1.23, MARK 23
T=1.28, MARK 28
T=1.33, MARK 33
T=1.38, MARK 38
T=1.43, MARK 43
T=1.48, MARK 48
T=1.53, MARK 53
T=1.58, MARK 58
T=1.63, MARK 63
T=1.68, MARK 68
T=1.73, MARK 73
T=1.78, MARK 78
36275EWASHER, TRANSFER OUTPUT SHAFT
T=0.8
36288RACE, TRANSFER THRUST BEARING, NO.1
36288ARACE, TRANSFER THRUST BEARING, NO.2
36288BRACE, TRANSFER THRUST BEARING, NO.3
41301YBEARING, NEEDLE ROLLER(FOR DIFFERENTIAL CASE)
41302PCASE SUB-ASSY, DIFFERENTIAL, NO.1
sub41301-50041
41302QBEARING, CYLINDRICAL ROLLER(FOR TRANSFER OUTPUT SHAFT)
41302RRING, HOLE SNAP(FOR DIFFERENTIAL CASE SUB-ASSY, NO.1)
25 parts on this diagram · 1 diagram in section
