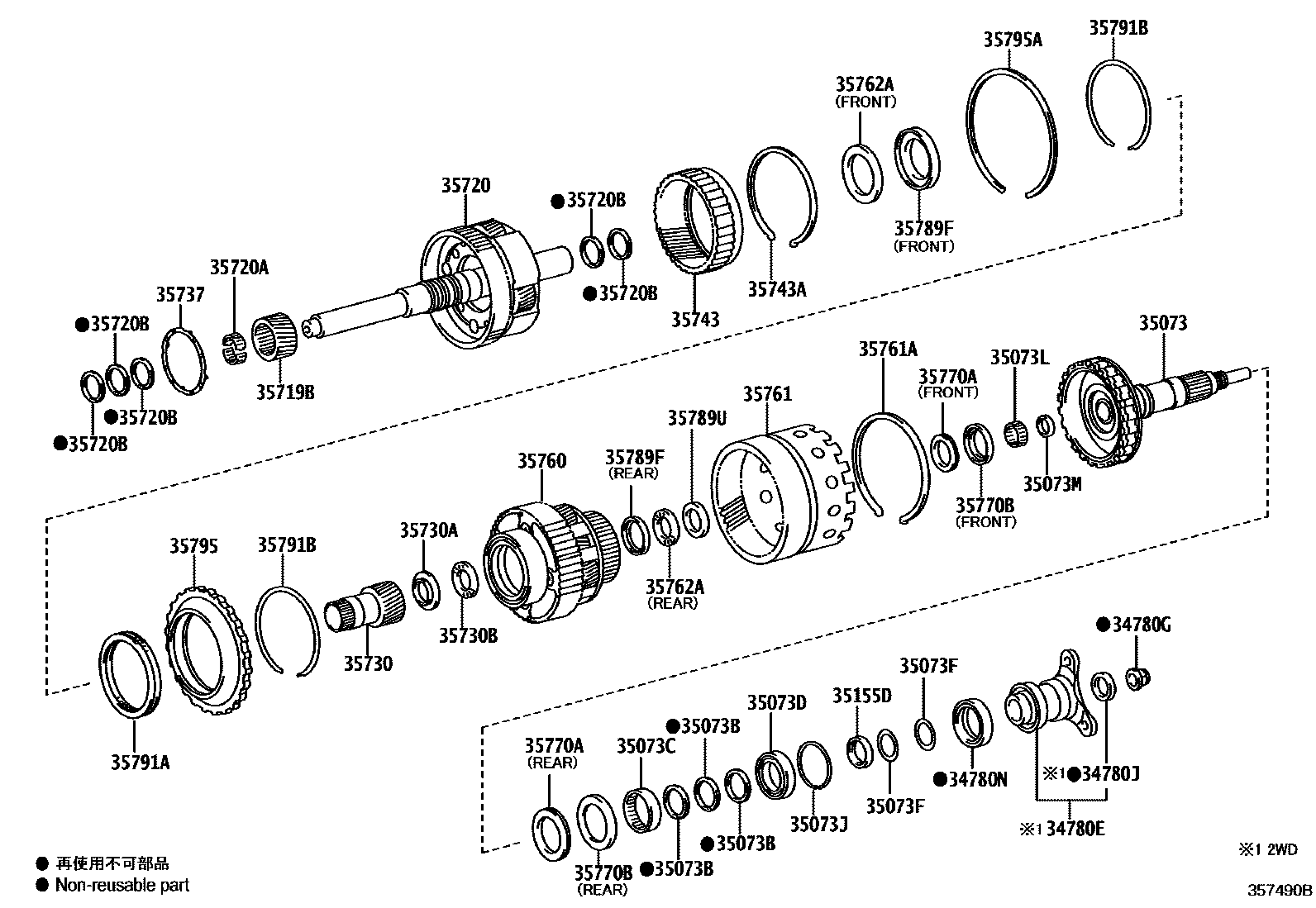

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)
34780GNUT (FOR ATM FRANGE YOKE)
34780JSEAL, TYPE V OIL (FOR FRANGE YOKE)
34780NSEAL, TYPE T OIL (FOR FRANGE YOKE)
35073BRING, O (FOR OUTPUT SHAFT)
35073CBEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
35073DBEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
35073FSPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
T=0.8
35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)
35073LBEARING, NEEDLE ROLLER (FOR OUTPUT SHAFT)
35073MPLUG, TIGHT (FOR OUTPUT SHAFT)
35155DSLEEVE, REAR COVER
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=1.70
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
35730GEAR ASSY, REAR PLANETARY SUN
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
35737WASHER, PLANETARY CARRIER THRUST
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
REAR
FRONT
35770ABEARING, THRUST (FOR OUTPUT SHAFT)
FRONT
REAR
35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)
FRONT
REAR
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
FRONT
REAR
35789URACE, THRUST BEARING
35791ACLUTCH, 1 WAY, NO.1
35791BRING, HOLE SNAP(FOR 1 WAY CLUTCH)
35795RACE, 1 WAY CLUTCH OUTER
35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)
35 parts on this diagram · 1 diagram in section
