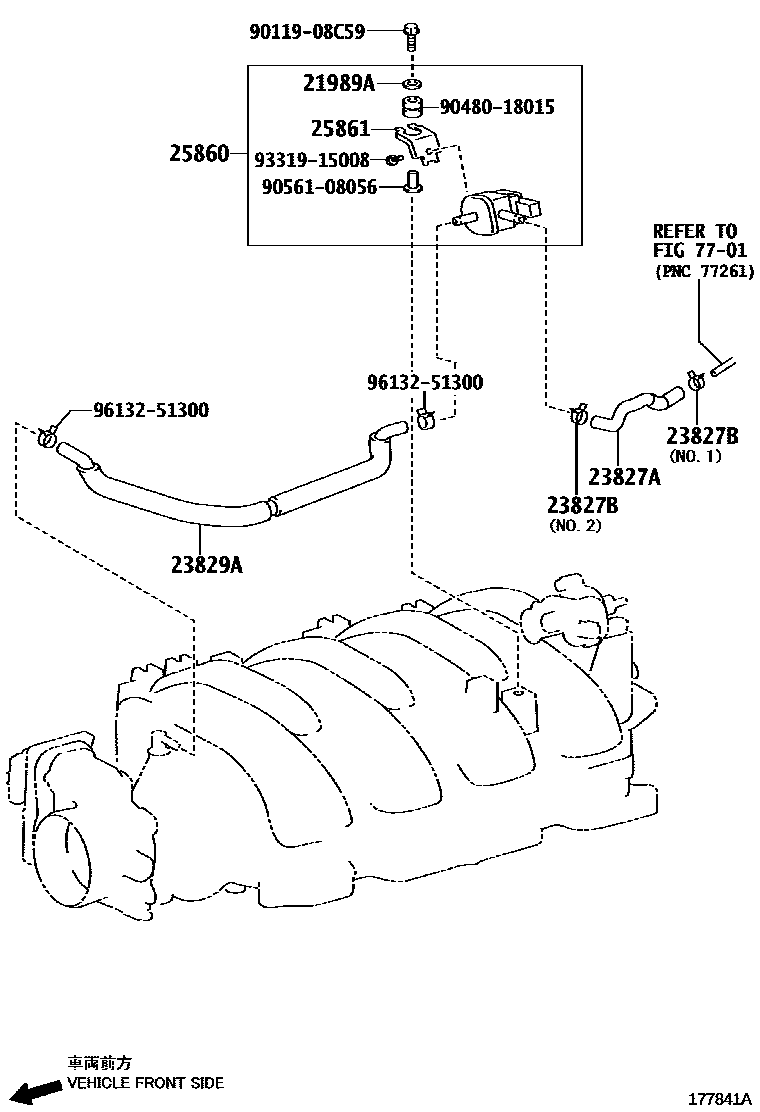

VACUUM PIPING

21989AINSULATOR, PLATE

main21989-38010i1UR#..USF4#201209

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-38010i1URFSE..USF40..RHD201209-201212

SUSPENSION-COIL SPRING

main23827-38010i1URFSE..USF40..GCC201209-201708

main23827-38050i1URFSE..USF45,46201209-201708

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i1UR#..USF4#201209-201708

NO.1

main96132-51300i1UR#..USF4#201209-201708

NO.2

23829AHOSE, FUEL VAPOR FEED

main23829-38030i1UR#..USF4#201209

sub23829-38031

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i1UR#..USF4#201209

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i1UR#..USF4#201209

7701

9011908C59

main90119-08C59

9048018015

main90480-18015

9056108056

main90561-08056

9331915008

main93319-15008

9613251300

main96132-51300

12 parts on this diagram · 1 diagram in section
