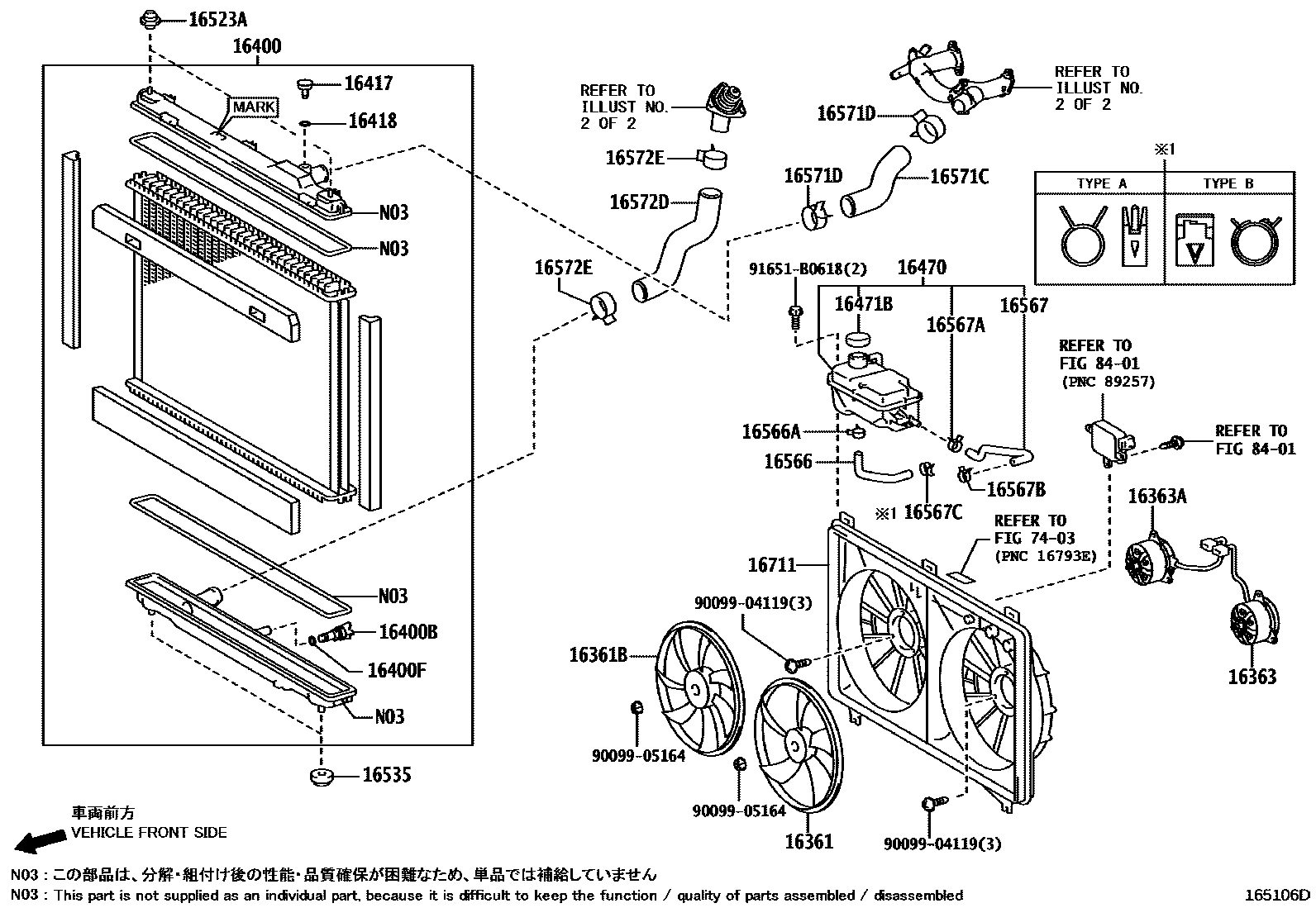

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16361FAN

main16361-38050i1URFSE..USF41..EUR201209

HONGKONG,MACAO SPEC

main16361-38070i1URFE..USF41;1URFSE..USF40,45,46;1URFSE..USF41..CHI,GCC201209

16361BFAN, NO.2

main16361-38060i1URFSE..USF41..EUR201209

HONGKONG,MACAO SPEC

main16361-38080i1URFE..USF41;1URFSE..USF40,45,46;1URFSE..USF41..CHI,GCC201209

16363MOTOR, COOLING FAN

main16363-38020i1URFSE..USF41..EUR201209

HONGKONG,MACAO SPEC

main16363-38070i1URFE..USF41;1URFSE..USF40,45,46;1URFSE..USF41..CHI,GCC201209

16363AMOTOR, COOLING FAN, NO.2

main16363-38030i1URFSE..USF41..EUR201209

HONGKONG,MACAO SPEC

main16363-38080i1URFE..USF41;1URFSE..USF40,45,46;1URFSE..USF41..CHI,GCC201209

16400RADIATOR ASSY

main16400-38171i1URFSE..USF41..EUR201209-201409

HONGKONG,MACAO SPEC,MARK=3817

main16400-38172i1URFSE..USF41..EUR201410

HONGKONG,MACAO SPEC

main16400-38191i1URFE..USF41;1URFSE..USF40;1URFSE..USF41..CHI,GCC201209-201409

main16400-38192i1URFE..USF41;1URFSE..USF40;1URFSE..USF41..CHI,GCC201410

main16400-38201i1URFSE..USF45,46201209-201409

main16400-38202i1URFSE..USF45,46201410

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1UR#..USF4#201209

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1UR#..USF4#201209

16417COCK

main16417-28530i1UR#..USF4#201209

16418PACKING

main16418-20290i1UR#..USF4#201209-201410

main16418-20291i1UR#..USF4#201410

16470TANK ASSY, RADIATOR RESERVE

main16470-38080i1UR#..USF4#201209-201409

main16470-38081i1UR#..USF4#201410-201603

main16470-38082i1UR#..USF4#201604

16471BCAP, RESERVE TANK

main16475-28140i1UR#..USF4#201604

main16475-37010i1UR#..USF4#201209-201409

main16475-37011i1UR#..USF4#201410-201603

16523ACUSHION, RADIATOR SUPPORT

main16523-38010×2i1UR#..USF4#201209

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i1UR#..USF4#201209-201603

main90480-40022×2i1UR#..USF4#201604

16566HOSE, RESERVE TANK OUTLET

main16566-38040i1UR#..USF40,41201209

main16566-38050i1URFSE..USF45,46201209

16566ACLIP(FOR RESERVE TANK OUTLET)

main90467-15022i1UR#..USF4#201209

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-38011i1UR#..USF4#201209

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-16037i1UR#..USF4#201209

16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)

main96136-42101i1UR#..USF4#201209

16567CCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)

main90467-13054i1UR#..USF4#201209

TYPE A:REFER ILLUST.

main96137-41501i1UR#..USF4#201209

TYPE B:REFER ILLUST.

16571CHOSE, RADIATOR, NO.1

main16571-38051i1UR#..USF40,41201209

main16571-38061i1URFSE..USF45,46201209

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2i1UR#..USF4#201209

16572DHOSE, RADIATOR, NO.2

main16572-38101i1UR#..USF40,41201209

main16572-38111i1URFSE..USF45,46201209

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002×2i1UR#..USF4#201209

16711SHROUD, FAN

main16711-38070i1UR#..USF40,41201209

main16711-38100i1URFSE..USF45,46201209

7403

8401

9009904119

main90099-04119

9009905164

main90099-05164

91651B0618

main91651-B0618

29 parts on this diagram · 3 diagrams in section
