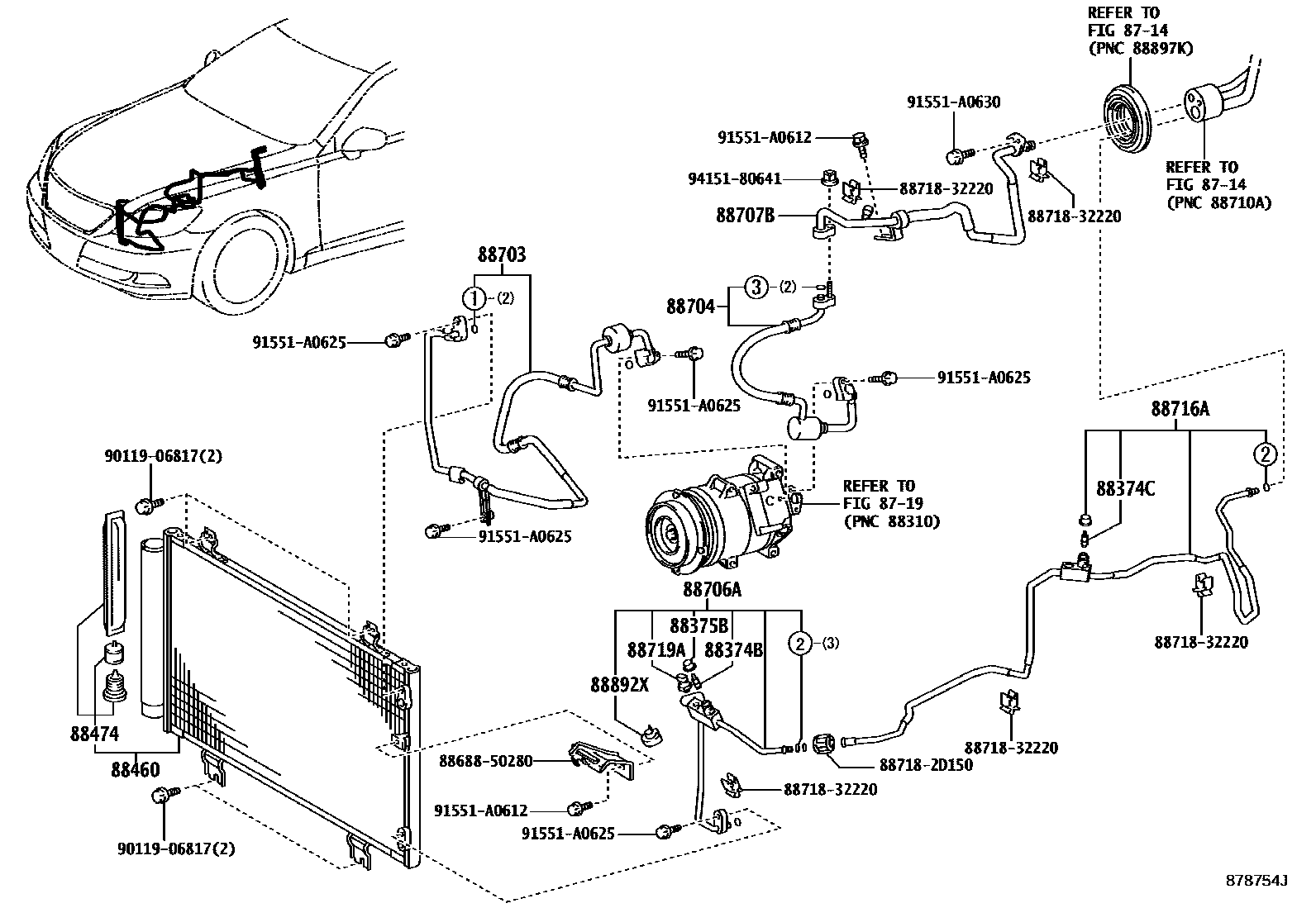

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT:W(REAR COOLER) 0003 1FRONT:W(REAR COOLER) 0004 1FRONT 0005 1FRONT:W(REAR COOLER) 0006 1REAR 0007 1REAR 0008 1REAR 0009 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iUSF4#200608-200809

88374CVALVE, SERVICE, NO.2

main88374-30010iUSF4#200608-200809

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iUSF4#200608-200809

88460CONDENSER ASSY, COOLER

main88460-50200iUSF4#..EUR200608-200702

main88460-50201iUSF40,41..EUR200909-201209

main88460-50220iUSF40,41..GCC200809-200909

main88460-50240iUSF45,46200909-201209

88474DRYER, COOLER

main88474-17010iUSF4#200809-200909

88703HOSE SUB-ASSY, DISCHARGE

main88703-50010iUSF40,41..EUR200909

main88703-50020iUSF40,41..GCC200809-200909

main88703-50050iUSF45,46200809-200909

88704HOSE SUB-ASSY, SUCTION

main88704-50010iUSF4#200608-200809

sub88704-50050

main88704-50030iUSF45,46200909

88706ATUBE SUB-ASSY, LIQUID, A

main88706-50010iUSF4#..EUR200608-200809

main88706-50020iUSF40,41..GCC200809-200909

main88706-50050iUSF45,46200809-200909

88707BTUBE SUB-ASSY, SUCTION, B

main88707-50010iUSF40,45..D4..EUR200909

main88707-50020supersedes 88707-50010iUSF40..HTWC..EUR200909-201009

main88707-50030iUSF45200909

VERSION U OR U I PACKAGE OR KOREA SPEC

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-50530iUSF41..LHD..EUR;USF40,45,46..EUR200809-200909

main88716-50540supersedes 88716-50530iUSF40..EUR;USF41..LHD..EUR200608-200809

VERSION U OR VERSION U I PACKAGE

main88716-50590iUSF40,41..GCC200809-200909

main88716-50600iUSF45200909

VERSION U OR U I PACKAGE OR KOREA SPEC

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iUSF4#200809-200909

88892XCOVER, COOLER, NO.2

main88892-50120iUSF4#200608-200809

8868850280BRACKET, COOLER DIAPHRAGM

main88688-50280

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

22 parts on this diagram · 9 diagrams in section
