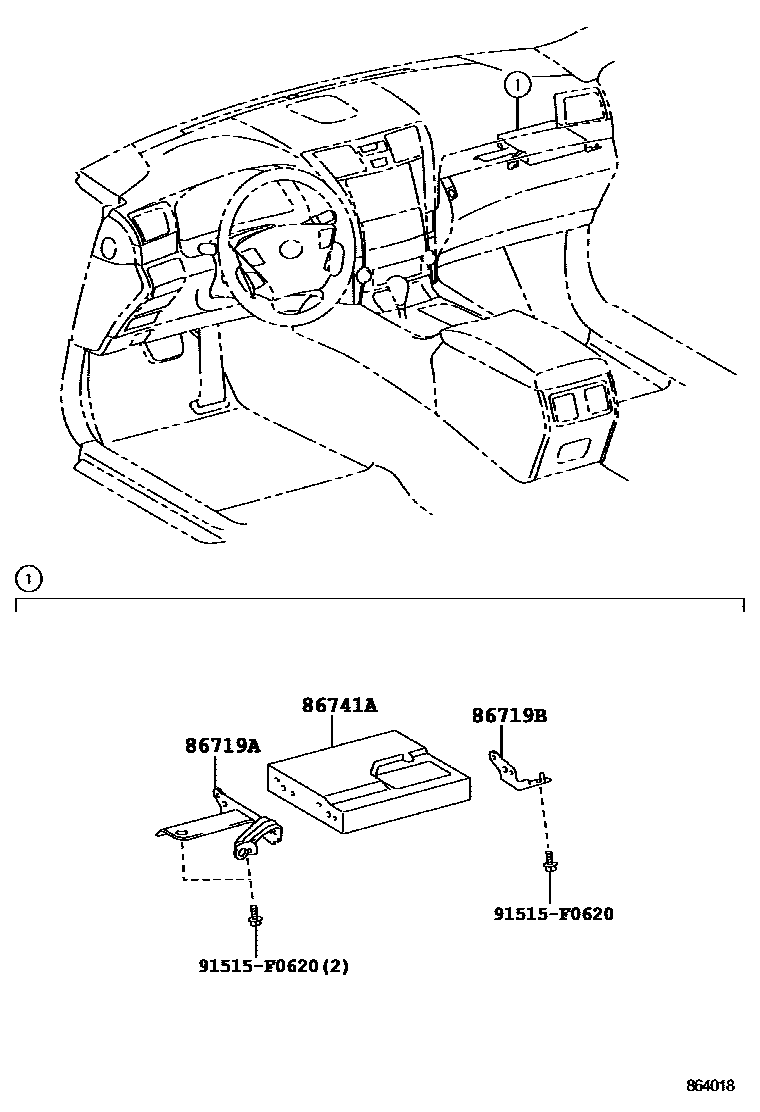

TELEPHONE & MAYDAY

0001 1CHINA SPEC 0002 1BRAZIL SPEC

86719ABRACKET, TELEPHONE NO.1

main86719-50240iUSF41..HTWC..EUR200909-201009

BEIJING SPEC

86719BBRACKET, TELEPHONE NO.2

main86719-50250iUSF41..HTWC..EUR200909-201009

BEIJING SPEC

86741ATRANSCEIVER, TELEMATICS

main86741-30070iUSF41..HTWC..EUR200909-201009

BEIJING SPEC

main86741-30071iUSF41..HTWC..EUR201205

BEIJING SPEC&MAYDAY SYSTEM-WITH(G-BOOK)

sub86741-30072

91515F0620

main91515-F0620

4 parts on this diagram · 2 diagrams in section
