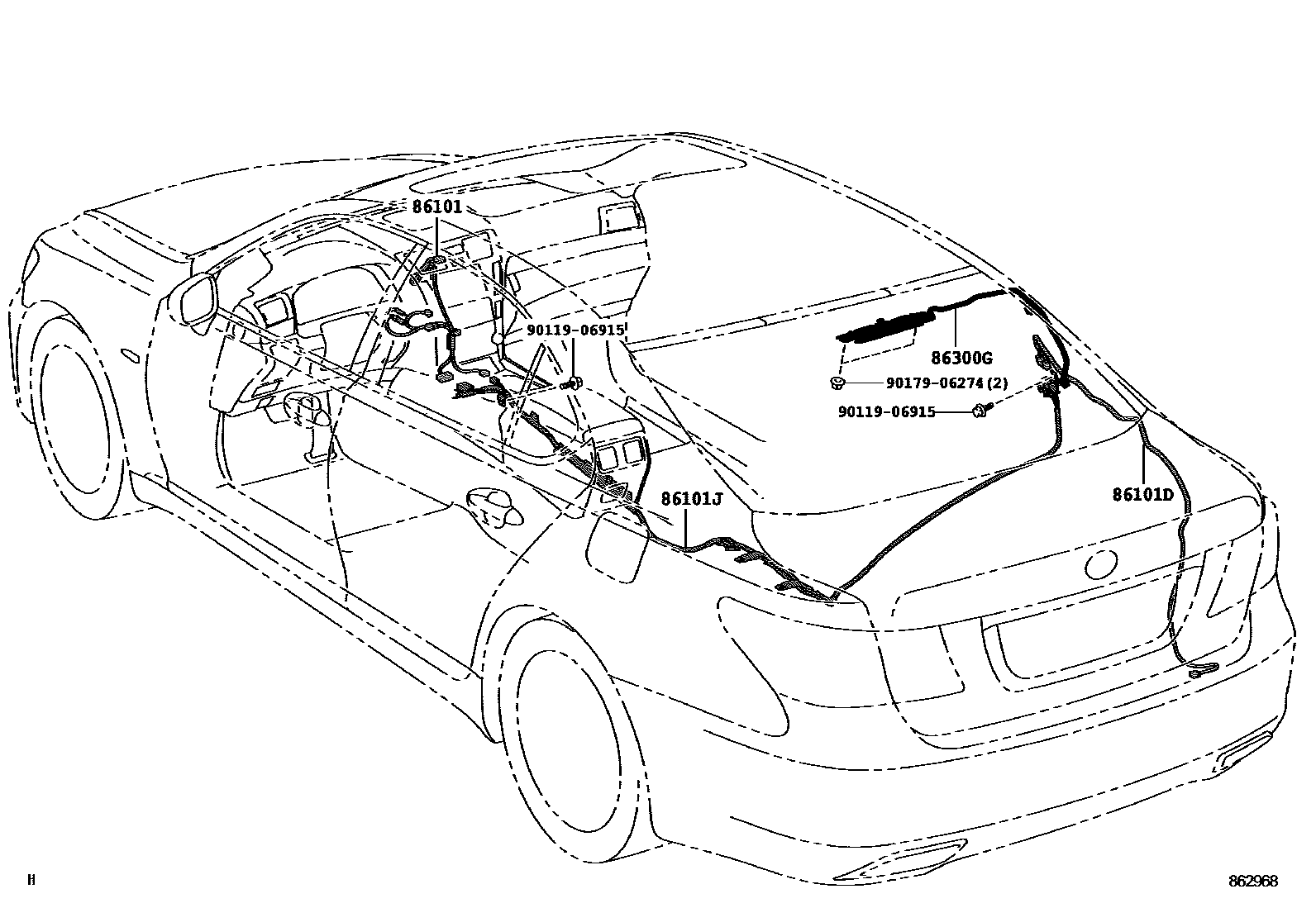

ANTENNA

0001 1 0002 1 0003 1

86101CORD SUB-ASSY, ANTENNA

main86101-50480iUSF41..LHD;USF40,45,46200608-200909

main86101-50490iUSF40..EUR;USF41..LHD..EUR200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON

main86101-50490iUSF4#..LHD..D4200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON

main86101-50860iUSF4#200909-201209

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86251-50010iUSF40..EUR;USF41..LHD..EUR200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON

main86251-50010iUSF4#..LHD..D4200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON

main86101-50820iUSF41..HTWC..EUR200909-201009

BEIJING SPEC&MAYDAY SYSTEM-WITH(G-BOOK)

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-50540iUSF40,45..LHD200608-200909

main86101-50560iUSF41,46..LHD200608-200909

main86101-50610iUSF41..RHD200608-200909

main86101-50A00iUSF40,45..LHD200909

main86101-50A10iUSF41,46..LHD200909

main86101-50A30iUSF41..RHD200909

main86101-50550iUSF40..GCC200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON

main86101-50570iUSF41..HTWC..EUR200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON

main86101-50590iUSF40..RHD200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON

main86101-50A60iUSF41..HTWC..EUR201009

BEIJING SPEC&MAYDAY SYSTEM-WITH(G-BOOK)

86300GANTENNA ASSY, TELEVISION AMPLIFIER

main86300-50170iUSF4#..EUR200608-200909

main86300-50180iUSF4#..GCC200612-200909

main86300-50310iUSF4#200909-201209

9011906915

main90119-06915

9017906274

main90179-06274

6 parts on this diagram · 3 diagrams in section
