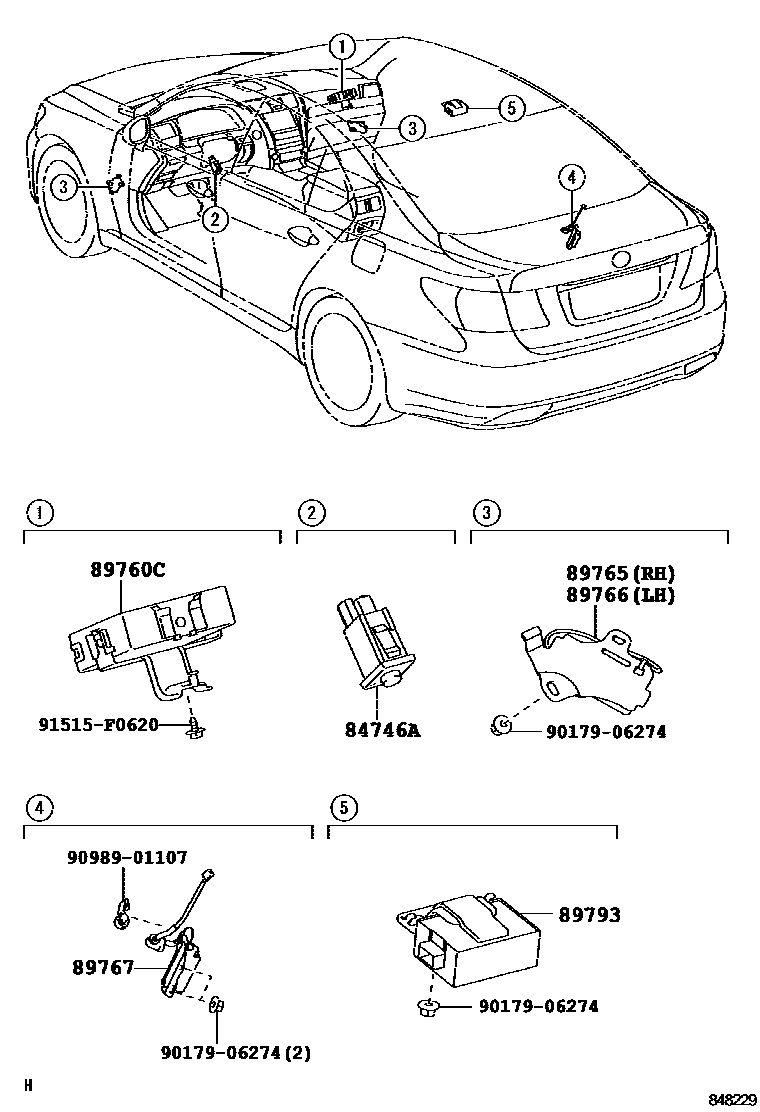

TIRE PRESSURE WARNING SYSTEM
84746ASWITCH, TIRE PRESSURE WARNING, NO.1
MALAYSIA SPEC
CHINA(EXCEPT BEIJING) SPEC
89760CRECEIVER ASSY, TIRE PRESSURE MONITOR
sub89760-50021
BEIJING SPEC&SPARE TIRE-TEMPER TIRE
sub89760-50031
sub89760-50032
sub89760-50033
FORMOSA SPEC&SPARE TIRE-GROUND TIRE
FORMOSA SPEC
89765ANTENNA, TIRE PRESSURE, FRONT RH
89766ANTENNA, TIRE PRESSURE, FRONT LH
89767ANTENNA, TIRE PRESSURE, REAR RH
89793ANTENNA, TIRE PRESSURE ROOF
9017906274
main90179-06274
9098901107
main90989-01107
91515F0620
main91515-F0620
9 parts on this diagram · 2 diagrams in section
