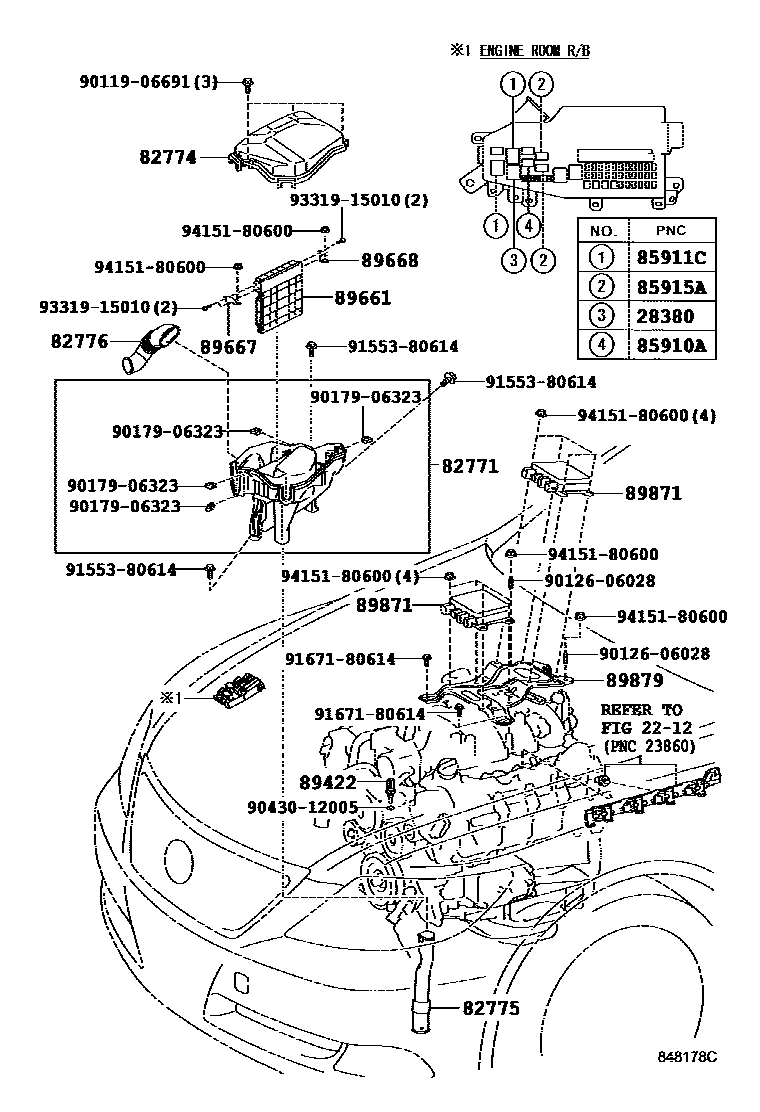

ELECTRONIC FUEL INJECTION SYSTEM
2212
28380RELAY ASSY, FUEL PUMP
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85911CRELAY, EFI 2
85915ARELAY, MAIN
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
sub89661-50C10
FORMOSA SPEC&ENGINE MONITOR WARNING-WITH(FOR TAIWAN)
sub89661-50C10
BEIJING SPEC
BEIJING SPEC
sub89661-50C11
sub89661-50D71
CHINA(EXCEPT BEIJING) SPEC
SOUTH AMERICA SPEC&ENGINE MONITOR WARNING-WITH(FOR EURO-OBD2)
BEIJING SPEC&ENGINE MONITOR WARNING-WITH(FOR EURO-OBD2)
CHINA(EXCEPT BEIJING) SPEC&ENGINE MONITOR WARNING-WITH(FOR EURO-OBD2)
BEIJING SPEC
SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-BRAZIL(BR1)&ENGINE MONITOR WARNING-WITH(FOR EURO-OBD2)
SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-BRAZIL(BR1)
sub89661-50F31
SINGAPOLE/BRUNEI SPEC
MALAYSIA SPEC
SOUTH AFRICA SPEC
THAILAND/INDONESIA SPEC
RUSSIA SPEC
KAZAKHSTAN SPEC
sub89661-50G01
RUSSIA SPEC
KAZAKHSTAN SPEC
CHINA(EXCEPT BEIJING) SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)
SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)
BEIJING SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-BRAZIL(BR1)
SOUTH AFRICA SPEC
MOROCCO SPEC
PHILIPPINES SPEC
MALAYSIA SPEC
SOUTH AMERICA SPEC
THAILAND/INDONESIA SPEC
SINGAPOLE/BRUNEI SPEC
KAZAKHSTAN SPEC
BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL(BR1)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89871DRIVER, INJECTOR
89879BRACKET, INJECTOR DRIVER
9011906691
main90119-06691
9012606028
main90126-06028
9017906323
main90179-06323
9043012005
main90430-12005
9155380614
main91553-80614
9167180614
main91671-80614
9331915010
main93319-15010
9415180600
main94151-80600
23 parts on this diagram · 1 diagram in section
