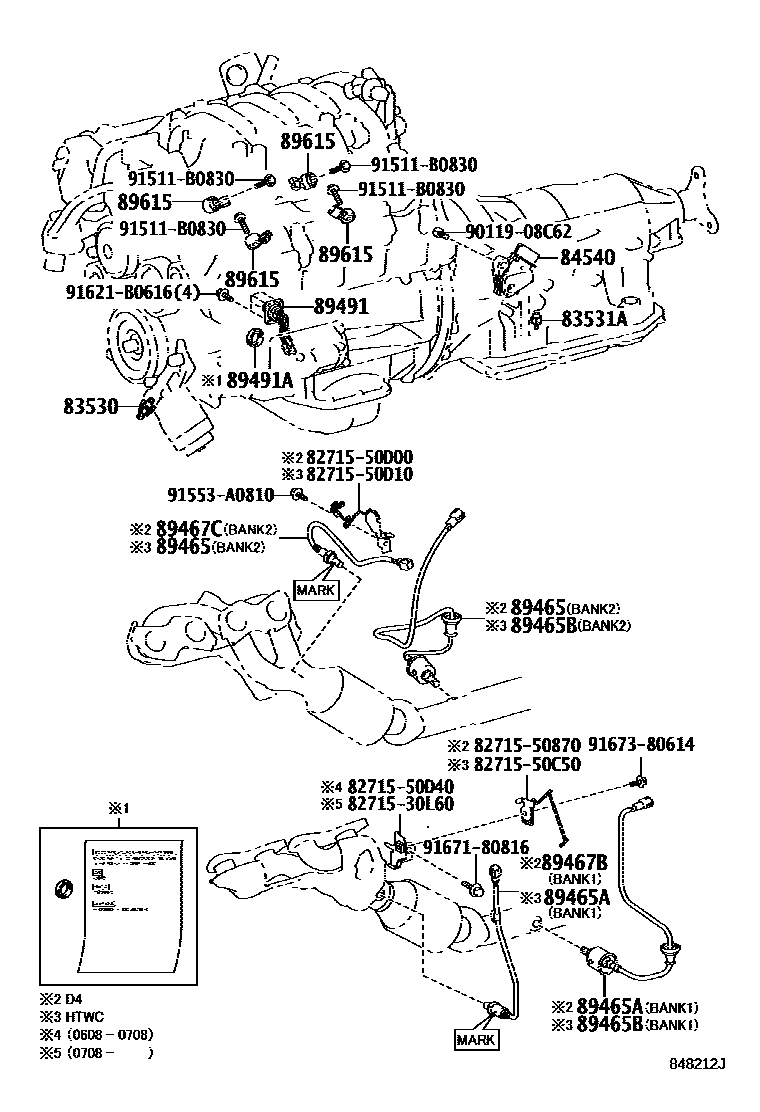

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 2/2 0006 1ENGINE ROOM 2/2 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1STEERING 0014 1STEERING 0015 1FRONT SEAT 0016 1REAR SEAT 0017 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUSF4#201104

DENSO

main83530-28020iUSF4#200608-201104

main83530-60020iUSF4#201104

YAZAKI

83531ASWITCH, OIL PRESSURE

main83531-50010iUSF4#200608-200909

84540SWITCH ASSY, NEUTRAL START

main84540-71010iUSF4#200608-201209

89465SENSOR, OXYGEN

main89465-50170iUSF4#..D4200608-201209

BANK2

main89465-50190iUSF4#..HTWC200608-200708

BANK2 & MARK -50190

main89465-50220iUSF40,41..HTWC200809-201209

BANK2

main89465-50220iUSF4#..HTWC200704-200809

BANK2 & MARK -50220

89465ASENSOR, OXYGEN NO.2

main89465-50170iUSF40,41..D4200608-201209

BANK1

main89465-50180iUSF4#..HTWC200608-200708

BANK1 & MARK -50180

main89465-50210iUSF40,41..HTWC200809-201209

BANK1

main89465-50210iUSF4#..HTWC200704-200809

BANK1 & MARK -50210

main89465-50230iUSF45,46200809-201209

BANK1

89465BSENSOR, OXYGEN NO.3

main89465-50170iUSF40,41..HTWC200608-200909

89467BSENSOR, AIR FUEL RATIO

main89467-50010iUSF4#..D4200608-200909

BANK1

main89467-50030iUSF45,46200809-201209

BANK1

main89467-50050iUSF40,41..D4200909-201209

BANK1

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-50020iUSF4#..D4200608-200909

BANK2

main89467-50040iUSF45,46200809-201209

BANK2

main89467-50060iUSF40,41..D4200909-201209

BANK2

89491SENSOR, ENGINE OIL LEVEL

main89491-50040iUSF4#200608-200609

sub89491-50041

main89491-50041iUSF40,41200609-200909

main89491-50050iUSF45,46200809-200909

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUSF4#200608-200909

89615SENSOR, KNOCK CONTROL

main89615-20090iUSF4#200608-200909

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

8271550870BRACKET,WIRING HARNESS CLAMP

main82715-50870

8271550C50BRACKET,WIRING HARNESS CLAMP

main82715-50C50

8271550D00BRACKET,WIRING HARNESS CLAMP

main82715-50D00

8271550D10BRACKET,WIRING HARNESS CLAMP

main82715-50D10

8271550D40BRACKET,WIRING HARNESS CLAMP

main82715-50D40

9011908C62

main90119-08C62

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167180816

main91671-80816

9167380614

main91673-80614

23 parts on this diagram · 17 diagrams in section
